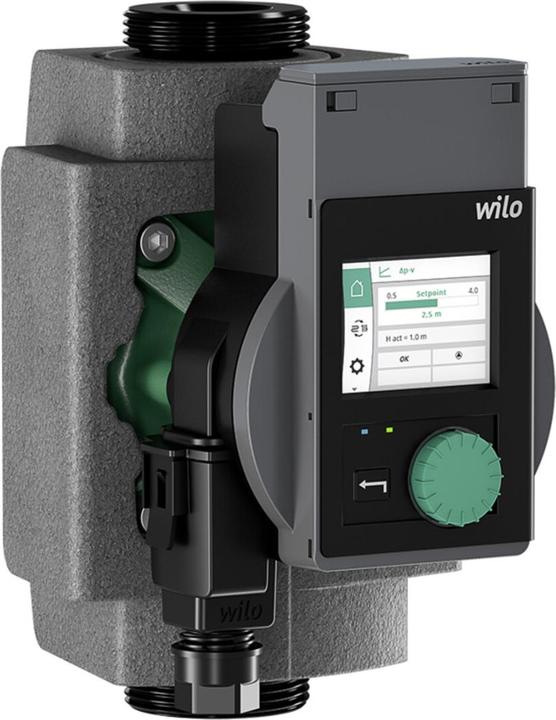

Wilo High Eff Pump Stratos PICO plus 2.0 Glandless Type 25/0.5-6-130 G 1 1/2 40 W
Price in EUR including VAT
Delivered between Sat, 11/4 and Wed, 15/4
Only 1 piece in stock at supplier
Only 1 piece in stock at supplier
free shipping
Maximum flow rate5
Product details
High-efficiency pump WILO-Stratos PICO plus - electronically controlled wet rotor circulation pump with threaded connection. Locking current-resistant synchronous motor based on ECM technology (up to 90% energy savings compared to an uncontrolled pump) and additional technical features:
- Pump head: 144
- Insulation class according to IEC: F
- Max. medium temperature (continuous operation): 110
- Min. medium temperature (continuous operation): -10
- Power consumption of the pump: 40W
- Pressure rating of the item: PN 10
- Motor speed control: built-in
- Housing material: cast iron
- Double pump: No
- Frequency: 50/60 Hz
- Motor input power (P1): 0.04 kW
- Material quality: cast iron GG 20 (GJL-200)
- Rated current: 0.44 A
- Outlet connection: external cylindrical gas thread BSPP (ISO 228-1)
- Inlet connection: external cylindrical gas thread BSPP (ISO 228-1)
- Outlet connection standard: ISO 228-1
- Inlet connection standard: ISO 228-1
- Number of phases: 1
- Motor input power (P1): 40 kW
- Rated voltage: 230 V
- Pressure rating flange connection outlet: PN 10
- Pressure rating flange connection inlet: PN 10
- Inlet connection diameter: 1 1/2 inches (40)
- Flange shape: other
- UBA positive list identifier: No
- Connection length: 106
- Power consumption of the pump in standby: 3 W
- Medium temperature (continuous operation): -10 degrees Celsius
- Nominal diameter: 1 inch (25)
- Nominal diameter outlet connection: 1 1/2 inches (40)
- Outer diameter of outlet connection pipe: 40 mm
- Ambient temperature: -10 degrees Celsius
- Supports protocol for LON/LONWorks: No
- Material of the impeller: polypropylene (PP)
- Material of the pump housing: cast iron
- Material quality of the pump housing: cast iron GG 20 (GJL-200)
- Material quality of the impeller: PP-GF
- Max. operating pressure: 10 bar
- Max. delivery head: 5.113 m
- Max. pump volume: 3.701 m³/h.
Power | 40 W |
Conveyor height | 6.31 m |
Maximum flow rate | 61.68 l/min |
Max. Delivery pressure | 10 bar |
Item number | 23177895 |
Manufacturer | Wilo |
Category | Water pumps |
Manufacturer no. | 4244376 |
Release date | 22/11/2022 |
Power | 40 W |
Conveyor height | 6.31 m |
Maximum flow rate | 61.68 l/min |
Max. Delivery pressure | 10 bar |
Protection type (IP code) | IPX4 |
Power supply | Electrical connection |
CO₂ emissions | 10,47 kg |
Climate contribution | EUR 0,26 |
Length | 13 cm |
Height | 14.40 cm |
Product Safety |
