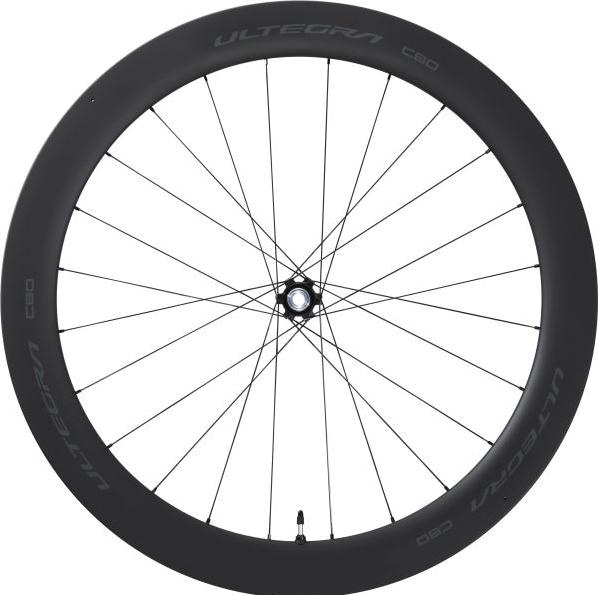

The Shimano Ultegra WH-R8170 wheelset is a highly advanced solution for road cyclists who value performance and efficiency. Weighing just 1649 grams and featuring a rim height of 60 mm, this wheelset offers an optimal combination of stiffness and aerodynamics. The fully carbon-made rims not only provide impressive weight reduction but also ensure direct power transfer during quick accelerations. The innovative rim shaping reduces air resistance, leading to higher speeds with less effort. Additionally, the tubeless compatibility allows for adaptation to various tire types, enhancing ride comfort and puncture protection. The sleek hubs are characterized by high bearing quality and perfect sealing, ensuring smooth operation and long lifespan. The wheelset is compatible with 11- or 12-speed Shimano road cassettes, making it suitable for a wide range of bikes and riding styles.
BIke wheel type | Wheelset |
Ability brake type | Disc brake Center lock |
Suitable tyre type | Folding tire, Tubeless tire |
Width | 28 mm |
jaw width | 21 mm |
Axle system | HR 12x142 mm, VR 12x100 mm |
Weight | 1649 g |
Item number | 20036119 |
Manufacturer | Shimano |
Category | Wheels |
Manufacturer no. | EWHR8170C60LFERED |
Release date | 31/1/2022 |
Colour | Black |
Exact colour description | Black |
Material group | Carbon |
Material | Carbon |
Bike area of use | Racing bikes |
Lacing | Double crossed |
Wheel size | 28" |
Model year | 2022 |
BIke wheel type | Wheelset |
Ability brake type | Disc brake Center lock |
Rim model | Ultegra WH-R8170-C36 |
Material rim | Carbon |

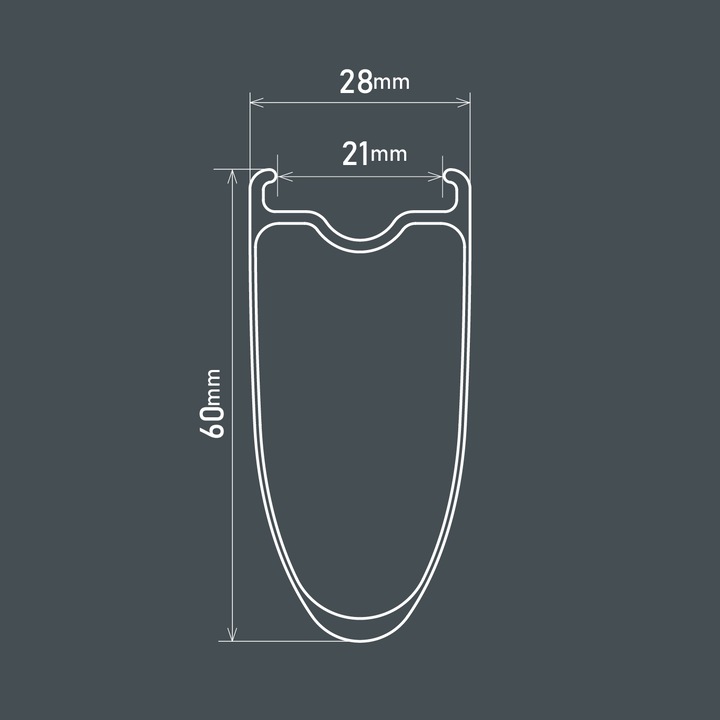

Rim height | 60 mm |
Suitable tyre type | Folding tire, Tubeless tire |
Width | 28 mm |
jaw width | 21 mm |
Valve hole diameter | 6.50 mm |
Axle system | HR 12x142 mm, VR 12x100 mm |
Axis standard | Thru axle |
Installation width front | 100 mm |
Installation width rear | 142 mm |
Diameter axle front | 12 mm |
Diameter rear axle | 12 mm |
Gear rim type | Shimano |
Cassette compatibility | 11-speed, 12-speed |
Freewheel | Shimano |
CO₂-Emission | |
Climate contribution |

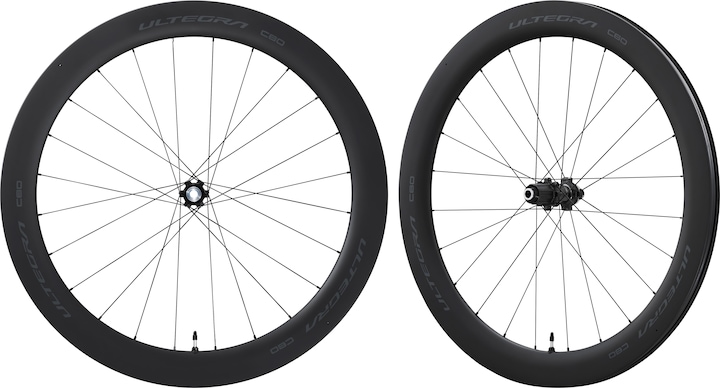

Scope of delivery | Shimano Ultegra WH-R8170-C60 wheelset (front/rear) |
Weight | 1649 g |
Length | 77 cm |
Width | 66.50 cm |
Height | 21 cm |
Weight | 4.27 kg |
Product Safety |
How often does a product of this brand in the «Wheels» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusUnfortunately, we don't have enough data for this category yet.
How often is a product of this brand in the «Wheels» category returned?
Source: Galaxus
The Shimano-Ultegra carbon rim models are very convincing all-rounders. They offer a comparatively large rim width, which enables a large tyre volume and therefore a very comfortable ride.
