Best selling Network cables from Lapp
On this page you’ll find a ranking of the best Network cables from Lapp. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

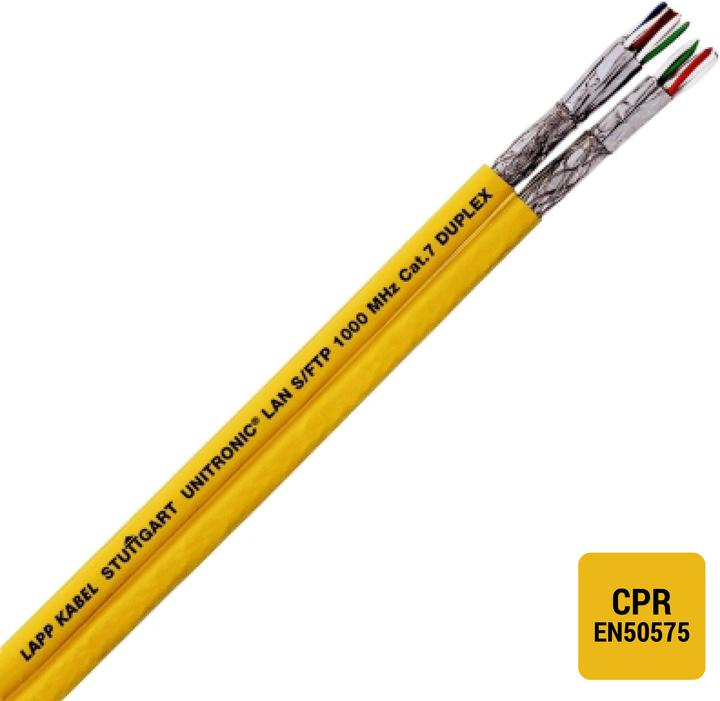

1. Lapp UNITRONIC LAN 1000 S/FTP Cat.7 LSZH
Mainly used where the terminal device density is very high, such as for the cabling of office, administration, and development buildings in the tertiary area (floor cabling). The cable length in the tertiary area (horizontal area, floor) should not exceed 100 m in accordance with ISO/IEC 11801 or EN 50173 (90 m cable duct + 10 m workstation). This LAN cable is designed for structured building cabling in accordance with EN 50173 and ISO/IEC 11801. It features S/FTP with copper braiding as overall shielding and pair shielding with aluminium composite foil. The outer sheath is made of halogen-free, flame-retardant compound, and the solid conductor is yellow (RAL 1021). It meets class F in the ISO/IEC 11801 standard, corresponding to CAT 7. This cable supports the transmission of digital and analogue data signals and is flame-retardant in accordance with IEC 60332-1-2, as well as passing the bundle fire test in accordance with IEC 60332-3-24. It is compatible with IEEE 802.3: 10/100/1000Base-T, 10GBase-T, IEEE 802.5: ISDN, FDDI, and ATM, and is suitable for cable sharing with IEEE 802.3at: PoE.
2. Lapp Etherline Y
The Etherline Y from Lapp Kabel is a highly developed network cable specifically designed for industrial applications. It meets the requirements of the standards EN 50173-3 and ISO/IEC 24702, making it ideal for secondary and tertiary cabling in machines, devices, and control cabinet wiring. With a maximum cable length of 100 meters for 100 Mbit/s, it is optimal for EtherCAT and EtherNet/IP applications. The cable is suitable for installation in open cable trays without protective tubing and can be used in both dry and damp environments. It offers comprehensive shielding against interference signals and is designed for use in harsh industrial environments. The cable construction includes solid bare copper wires and a robust overall shielding that ensures reliable data transmission.
- Suitable for EtherCAT and EtherNet/IP applications
- Flame-retardant according to IEC 60332-1-2 and CSA FT-4
- Solid bare copper wires for optimal signal transmission
- Comprehensive shielding against interference signals
- Approved for fixed installation in industrial environments.
3. Lapp ETHERLINE PN Cat.6A
For industrial secondary and tertiary wiring according to EN 50173-3 ISO/IEC 24702. Machine, device, and control cabinet wiring. Fixed installation. Suitable for EtherCAT and EtherNet/IP applications.

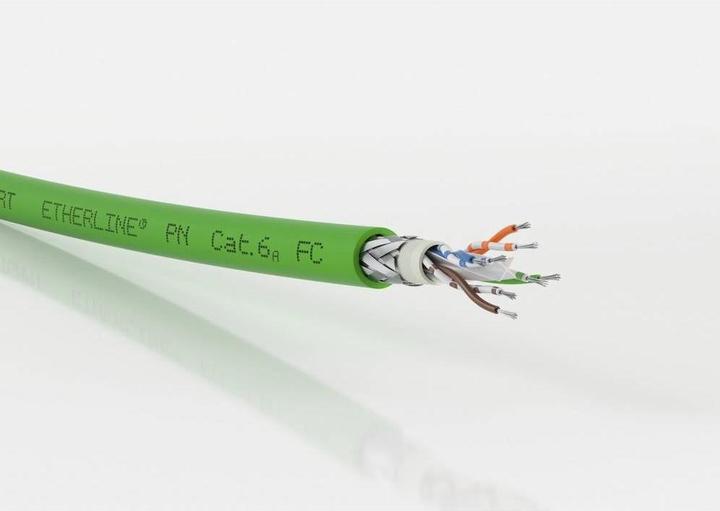

4. Lapp 2170586/100 Netzwerkkabel ETHERLINE® PN Grün 100 m
The ETHERLINE® PN network cable from Lapp Kabel is a high-quality Ethernet cable specifically designed for PROFINET® applications. With a category of CAT.6A, this cable offers high transmission speed and reliability, which are essential for modern network requirements. Its flexible design allows for easy handling and installation, while the shielding (SF/UTP) minimizes interference and enhances signal quality. The cable is suitable for a temperature range of -40° to 80° C, making it ideal for use in demanding environments. With a length of 100 meters, it is perfect for various applications in industry and commerce.
- High transmission speed with CAT.6A
- Flexible design for easy installation
- Shielding minimizes interference and improves signal quality
- Temperature range of -40° to 80° C for versatile applications.
5. Lapp Hitronic Pof Duplex Pe
The Hitronic Pof Duplex Pe from Lapp Kabel is a highly flexible network cable specifically designed for industrial applications for optical signal transmission. It is a plastic optical fiber (POF) with a duplex configuration, suitable for direct connector termination. This cable is ideal for indoor use, particularly in industrial environments, and can be permanently installed in control cabinets, cable ducts, or conduits. The use of halogen-free materials ensures additional safety, while the high flexibility of the cable allows for easy handling and installation. With a length of 70 meters, it provides ample room for various applications.
- Halogen-free for increased safety
- Highly flexible, ideal for tight installations
- Duplex configuration for improved signal transmission
- Suitable for permanent installation in industrial environments.
6. Lapp ETHERLINE P EC FD Cat.5e
The ETHERLINE P EC FD Cat.5e from Lapp Kabel is a highly flexible copper cable specifically designed for use in drag chains. It is ideally suited for applications in industrial Ethernet networks, including EtherCAT and EtherNet/IP. With high-quality shielding (SF/UTP) and a halogen-free polyurethane insulation, this cable not only ensures reliable data transmission but also offers high resistance to environmental influences. The green color and gold-plated contacts provide optimal signal transmission and durability. With a length of 500 meters, it is versatile and meets the requirements of category 5e, making it an excellent choice for modern network infrastructures.
- Highly flexible design for use in drag chains
- Halogen-free polyurethane insulation
- Reliable data transmission with SF/UTP shielding
- Compatible with EtherCAT and EtherNet/IP
- Long cable length of 500 meters for versatile applications.
7. Lapp Network cable CAT 5 S/UTP 4 x
The CAT 5 S/UTP 4 x network cable is a high-quality copper cable specifically designed for data transmission in various network applications. It supports the IEEE 802.3 standards for 10/100/1000Base-T as well as IEEE 802.5 for ISDN, FDDI, and ATM. This cable is ideal for networking computers and transmitting audio data over EtherSound, as well as lighting control data over DMX over Ethernet. It is designed for patch cable applications and is suitable for distances of up to 60 meters. Additionally, it is compatible with EtherCAT and EtherNet/IP, making it a versatile solution for industrial Ethernet applications.
- Supports data transfer rates of up to 1000 Mbit/s
- Suitable for industrial Ethernet applications
- Compatible with EtherCAT and EtherNet/IP
- Optimized for transmitting audio and lighting control data.

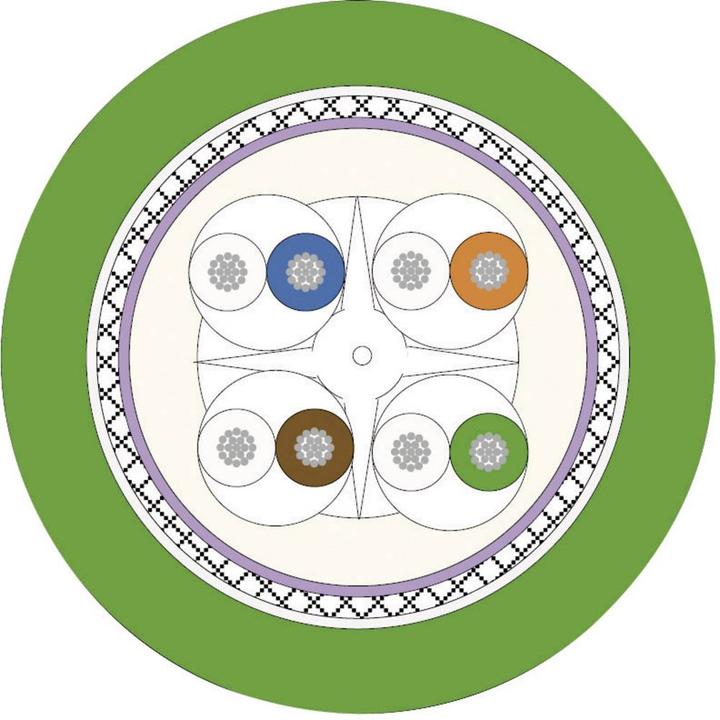

8. Lapp Network cable CAT
Use in drag chains and on permanently moving machine parts in dry or damp rooms. Only for patch cable applications (max. 60 m). Suitable for EtherCAT and EtherNet/IP applications, plant and apparatus engineering. 4 pairs: 10/100/1000 Mbit/s for industrial Ethernet.
9. Lapp Network cable CAT 7 S/FTP 4 x 2 x 0.12 m
For industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702. Fixed installation, suitable for dry or damp environments. For PROFINET applications Type A. Special features: UV-resistant, flame-retardant, PUR sheath, oil-resistant, halogen-free, double-shielded, flexible inner conductor.
10. Lapp Network cable CAT 5e S/FTP 4 x 2 x 0.13
The Unitronic® network cable CAT 5e with UTP/BS shielding is designed for structured cabling systems and meets the requirements of EIA/TIA-568 and TSB36, as well as ISO/IEC 11801 or EN 50173 (class D).
Feature: UTP/BS = S-FTP (foil shielded twisted pair with overall copper braid shield).
