Network accessories
EUR32,90

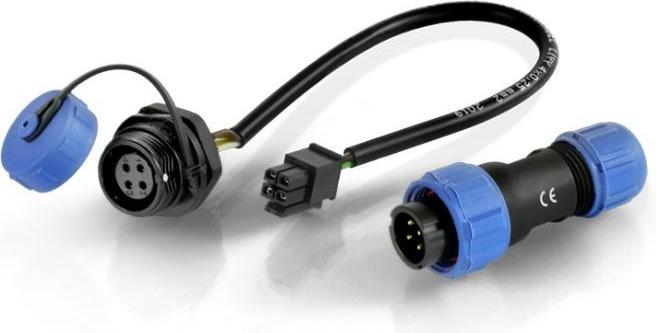

Quwireless QPSP4 - QuPS4 - Outdoor power socket & plug - 4-pin set (pin and input/output)
Best Quwireless products in the Network accessories category
On this page you'll find a ranking of the best Quwireless products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Quwireless QPSP4 - QuPS4 - Outdoor power socket & plug - 4-pin set (pin and input/output)
The QPSP4 - QuPS4 is a versatile 4-pole set that includes an outdoor socket and a plug. It is designed to provide a reliable connection for power supply and digital inputs/outputs. This set is particularly useful in situations where passive PoE power supply is not intended for all QuWireless antennas. It allows access to digital inputs/outputs from outside the QuRouter or antenna, enhancing flexibility and functionality in various applications. The robust construction ensures that the product withstands outdoor conditions and provides a secure connection.
- 4-pole set with 2 pins for power supply and 2 pins for digital inputs/outputs
- Allows access to digital inputs/outputs from outside the QuRouter or antenna
- Robust construction for outdoor use.

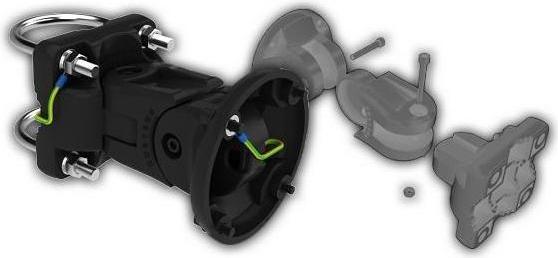

2. Quwireless Solid WiMount bracket
Wireless Instruments has decided to change the standard method of manufacturing mounting systems from steel, based on extensive experience from many installation sites. The company developed a much sturdier mounting system that gives you the assurance that your installation is secure, as WiMount ensures significantly greater stability of the antenna in strong winds.
The standard bracket for the WiBOX series is made from a very solid material with a high fiberglass content, making it much more durable than a standard steel bracket or a magnesium casting, which is prone to cracking.
This solution allows for mast mounting (diameter up to 62 mm) and wall mounting (distance between mounting holes - 75 mm). The mounting system consists of three parts, enabling adjustment in two planes, even in the case of wall mounting. The adjustment is possible within a range of 70 degrees (35+35), which practically meets user requirements while ensuring the full durability and consistent parameters of the mounting system. The WiMount is scalable, meaning you can expand the adjustment range by adding WiMount elements. The DC grounding of the entire box system is facilitated by the bracket. To make antenna alignment more precise, the angle scale is attached to the movable parts.

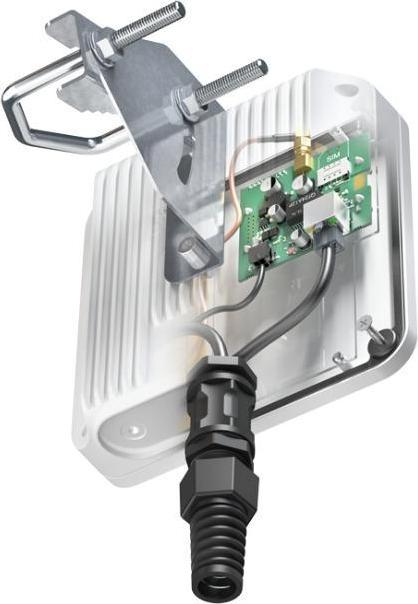

3. Quwireless A140I - QuMini for Teltonika TRB140 - Enclosure with integrated multi-band LTE omni antennas
The A140I - QuMini for Teltonika TRB140 is a compact and versatile enclosure equipped with integrated multiband LTE omni antennas. This product has been specifically designed for use with the Teltonika TRB140 router and is suitable for both mobile and stationary installations. It is applicable in various fields, including industry, video surveillance, hotspots, as well as on yachts, boats, and in motorhomes. The QuMini antenna provides an integrated complete solution that combines the router and antennas in a robust housing. With a high protection rating of IP67, the enclosure is suitable for outdoor use and ensures reliable performance under various weather conditions. The antenna supports a wide range of LTE bands and offers broad frequency coverage, making it an ideal choice for demanding network environments.
- Integrated multiband LTE omni antennas for comprehensive network coverage
- Robust enclosure with IP67 protection rating for outdoor use
- Operating temperature range from -40°C to 75°C for extreme environments
- 360° radiation pattern with vertical polarization for optimal signal transmission
- Versatile applications in various fields such as industry and video surveillance.
Network accessories
EUR94,90
Quwireless A140I - QuMini for Teltonika TRB140 - Enclosure with integrated multi-band LTE omni antennas
Antenna adapter

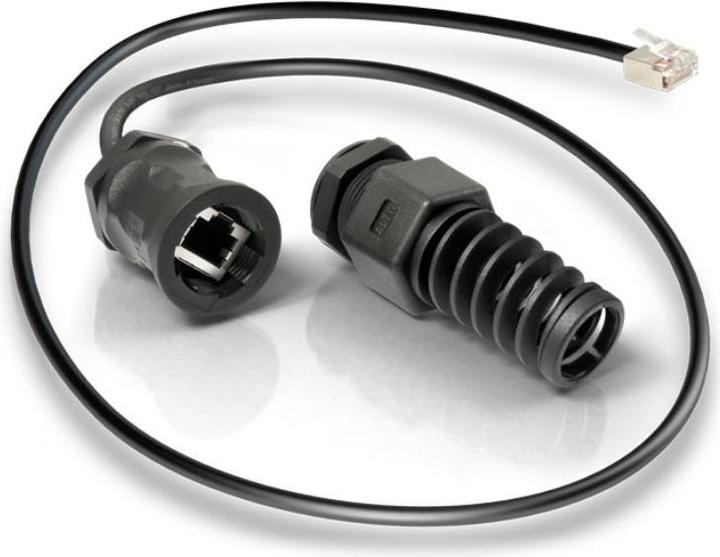

4. Quwireless QRJ45-L - QuRJ45-L - Outdoor IP68 RJ-45 socket adapter 380 mm
QuRJ45-L - IP68 RJ-45 Plug Adapter for Outdoor Use 380 mm
Waterproof IP68 RJ-45 outdoor socket adapter for all Teltonika routers. Compatible with 10/100/1000 Mbps networks. The standard length is 380 mm, but a version with a length of 160 mm is also available (QuRJ45).
Network accessories
Quantity discount
EUR17,90
Quwireless QRJ45-L - QuRJ45-L - Outdoor IP68 RJ-45 socket adapter 380 mm
Network cable

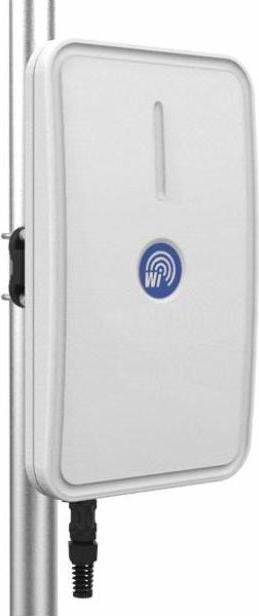

5. Quwireless WIBOX EXTRA LARGE SLIM - RJ45 LTW, installation kit
The aesthetic design of the WiBOX series makes the Extra Large SLIM model ideal for installation both indoors and outdoors. The WiBOX Extra Large SLIM has an IP67 protection rating, achieved through a special sealing system, making it resistant to all weather conditions. It is excellent for standard or custom installations. The WiBOX Extra Large SLIM also features five additional holes to install up to five more antennas on the connection panel. The housing includes a suitable mounting compartment for a PCB (printed circuit board), with dimensions of 180 x 174 x 35 mm. The WiBOX Extra Large SLIM comes with the WiMount mounting system made of fiberglass. The system can be ordered with any antenna board from the Wireless Instruments range that is compatible with this type of box. The WiBOX Extra Large SLIM can also be equipped with outdoor connectors.
Mechanical Specifications
- External dimensions 29.2 x 48.6 x 7.1 cm
- Internal dimensions 18 x 17.4 x 3.5 cm
- Weight 2.9 kg
- Connection RJ45
- Material ABS (UV-resistant)
- Operating temperature from -40°C to 70°C
Features
- Large, ergonomic, and spacious for the installation of radio devices.
- Outdoor waterproof
- Designed and durable for all weather conditions
- Wall or mast mounting
- Waterproof RJ45 system
- Four plug holes
- Grounding cable system for lightning protection - DC Ground.

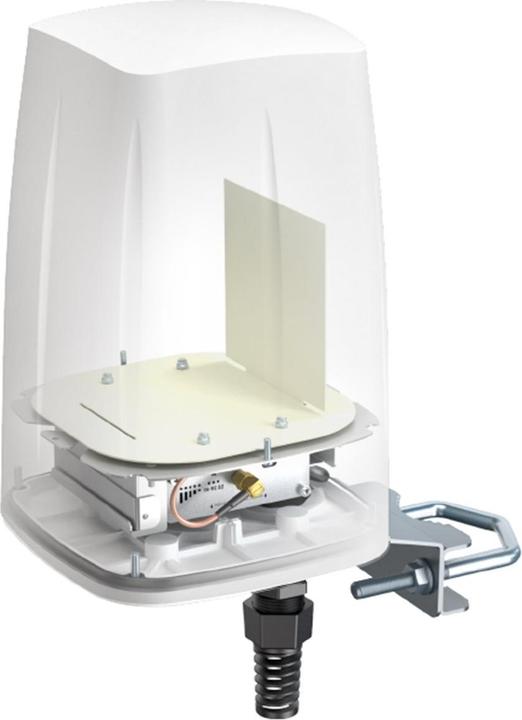

6. Quwireless QuSpot for TRB140 with housing
QuSpot for Teltonika TRB140
Integrated Multiband LTE Omni Antennas and Mounting Location for Teltonika TRB140 (All-in-One)
The QuSpot Omni LTE antenna for the Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations such as industrial applications, video surveillance, hotspots, yachts, boats, and motorhomes. When using the TRB140 with the QuSpot antenna, you get an integrated complete solution with an embedded router and multiband antennas in one housing.
Frequency
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
Gain
- 2 dBi
- 2 dBi
- 4 dBi
VSWR
- <1.70, max <2.00
- <1.60, max <2.00
- <1.60, max <2.00
Beamwidth
- 360°/35° +/-5°
Polarization
- Vertical
Impedance
- 50 Ohm.

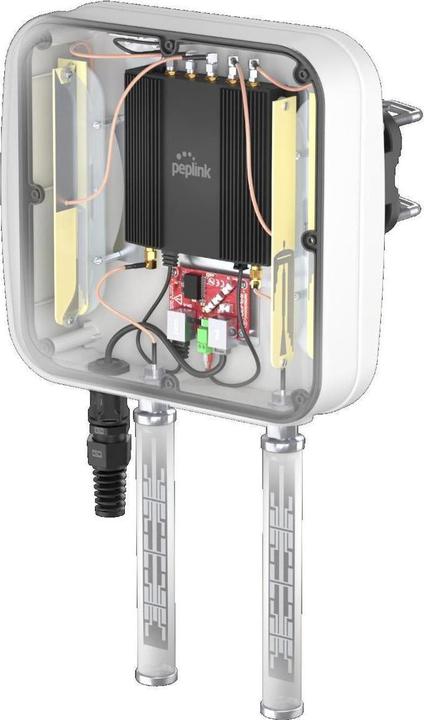

7. Quwireless QuMax Omni for Peplink MAX BR1 Pro 5G CAT-20
Integrated Multi-Band 5G Omni Antenna, WiFi Omni Antenna, GPS Antenna, passive PoE splitter, and installation space for Peplink MAX BR1 Pro 5G and CAT-20 (All-in-One).
The QuMax Omni All-in-One Antenna for the Peplink MAX BR1 Pro 5G and CAT-20 router is a perfect outdoor device for mobile and fixed installations such as industrial, public, CCTV, hotspots, yachts, boats, campers, RVs, etc. It features an integrated Omni 5G, Wi-Fi, and GPS antenna. When using the MAX BR1 Pro 5G or CAT-20 with the QuMax Omni antenna, you receive an integrated complete solution with a built-in router and multi-band antennas housed in one enclosure.
The set includes a passive PoE splitter that allows data and power to be split from a single Ethernet cable while maintaining gigabit transmission speeds, with the LAN port protected from damage due to overvoltage, short circuits, or improper connections.
5G/LTE Specifications:
- Frequency: 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz
- Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
- Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
- Gain: 617 - 960 MHz: 3 dBi, 1.7 - 2.2 GHz: 4 dBi, 3.3 - 4.7 GHz: 4.5 dBi, 5.2 - 6.0 GHz: 2.5 dBi
- VSWR < 1.80, max < 2.00
- Beamwidth: 360°/35° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Wi-Fi Specifications:
- Frequency: 2.4 - 2.5 GHz, 5.0 - 7.2 GHz
- Gain: 2.4 - 2.5 GHz: 6 dBi, 5 GHz: 7.5 dBi, 7 GHz: 7.5 dBi
- VSWR < 1.50, max < 2.00
- Radiation Pattern: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω.

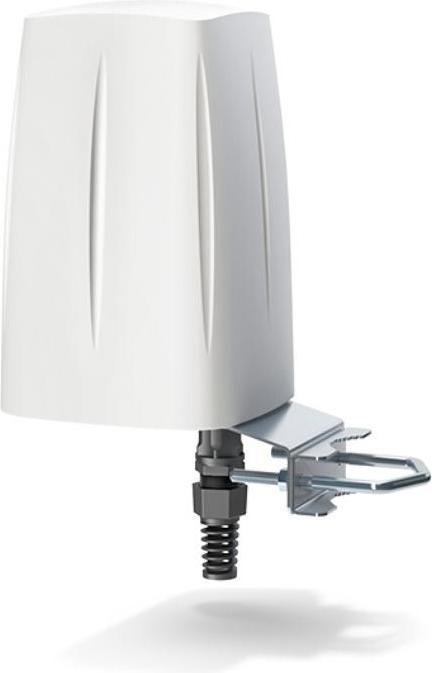

8. Quwireless QuSpot for RUT360
A360S - QuSpot for Teltonika RUT360
The QuSpot omni LTE antenna for the Teltonika RUT360 router is a perfect outdoor device for mobile and fixed installations. Usage scenarios include industrial, CCTV, hotspots, yachts, boats, campers, and RVs. It also features embedded omni Wi-Fi antennas. When using the RUT360 with a QuSpot antenna, you get an integrated complete solution with an embedded router and multi-band antennas in one enclosure.
LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.2 - 2.7 GHz: 4 dBi
- VSWR: <1.60, max. <2.00
- Beam width: 360°/35° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Wi-Fi Antenna Specifications
- Frequency: 2.40 - 2.50 GHz
- Gain: 6 dBi
- VSWR: <1.70, max. <2.00
- Beam width: 360°/25° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Mechanical Specifications
- Materials: ABS, aluminum, PTFE
- Connector type: RJ45
- Ingress protection: IP67
- Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
- Weight: 1.5 kg (3.31 lbs.)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F).
