A360S - QuSpot for Teltonika RUT360

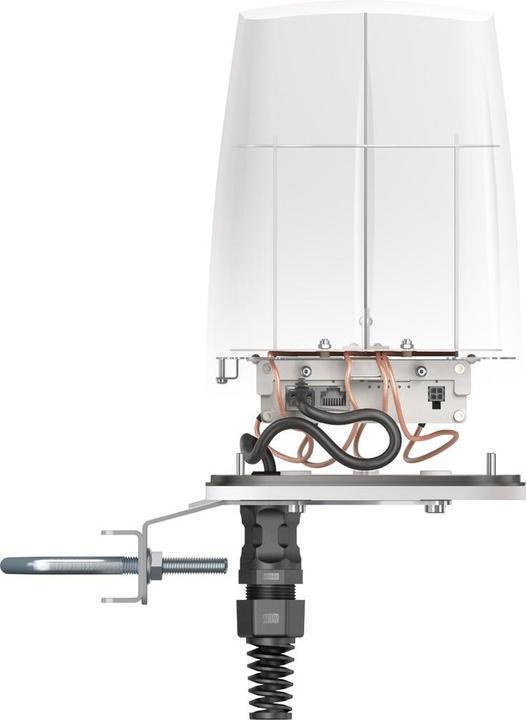

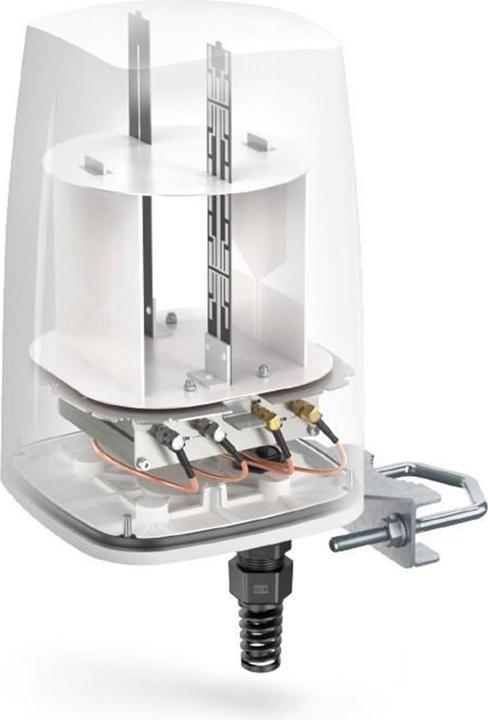

The QuSpot omni LTE antenna for the Teltonika RUT360 router is a perfect outdoor device for mobile and fixed installations. Usage scenarios include industrial, CCTV, hotspots, yachts, boats, campers, and RVs. It also features embedded omni Wi-Fi antennas. When using the RUT360 with a QuSpot antenna, you get an integrated complete solution with an embedded router and multi-band antennas in one enclosure.

LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz
• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
• Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.2 - 2.7 GHz: 4 dBi
• VSWR: <1.60, max. <2.00
• Beam width: 360°/35° +/-5°
• Polarization: Vertical
• Impedance: 50 ohms

Wi-Fi Antenna Specifications

• Frequency: 2.40 - 2.50 GHz
• Gain: 6 dBi
• VSWR: <1.70, max. <2.00
• Beam width: 360°/25° +/-5°
• Polarization: Vertical
• Impedance: 50 ohms

Mechanical Specifications

• Materials: ABS, aluminum, PTFE
• Connector type: RJ45
• Ingress protection: IP67
• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
• Weight: 1.5 kg (3.31 lbs.)
• Operating temperature: From -40°C to 75°C (from -40°F to 167°F).
