Best selling Docking stations + USB hubs from Exsys
On this page you’ll find a ranking of the best Docking stations + USB hubs from Exsys. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

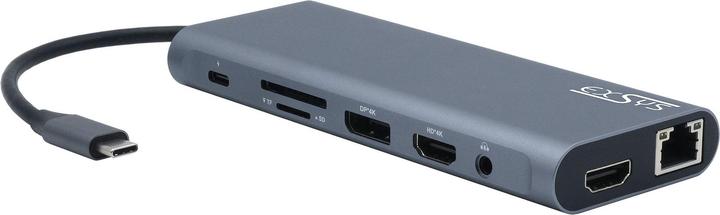

1. Exsys 14in1 USB 3.2 Gen 2x1 Dock
The EX-1226HM is a USB-C docking station featuring two HDMI ports and one DisplayPort, each supporting 4K@60Hz, multiple USB-A and USB-C ports, a network connection, and a card reader. It also supports USB-PD with up to 100W for connecting the USB-C power supply of a laptop or MacBook, allowing for simultaneous charging.
This 14-in-1 docking station comes in an elegant aluminum die-cast housing. It supports USB-C Power Delivery (PD) charging function up to 100W. It includes 2x HDMI 4K@60Hz and 1x DisplayPort (DP) 4K@60Hz. It supports Multi Stream Transport (MST) for up to 3 displays with different content (MacOS: only same content possible). Gigabit Ethernet RJ45 port. USB 3.2 Gen 2x1 ports: 1x USB-A, 2x USB-C. USB 3.2 Gen 1 ports: 2x USB-A. One USB-2.0 port. Combined 3.5mm audio jack for headphones and microphone. Card reader for SD/SDHC/SDXC and microSD/SDHC/SDXC. Designed for laptops/MacBooks with USB-C connection.
Included in the package: EX-1226HM, manual.
2. Exsys Ex-1110hmvs
The EX-1110HMVS provides 10 screwable USB 3.0/3.1 (Gen1) downstream ports with 15 kV ESD overvoltage protection. This allows for the connection of up to ten external USB peripheral devices to a USB 3.0/3.1 (Gen1) port from the computer in a 19" rack.
The included USB cable with A-type to B-type connector can be attached to the EX-1110HMVS using thumb screws without the need for a screwdriver. It can be used in automation and office applications. The hub meets the specific requirements of industrial applications.
3. Exsys GmbH 6 Port USB 2.0 Managed HUB, incl. Din-Rail
The EX-1596HMVS is a managed USB 2.0 hub designed to provide extensive and unique features for industrial applications. It offers an immediate expansion of six screwable USB 2.0 ports and is compatible with all existing USB 2.0 and USB 1.1 devices.
The EX-1596HMVS comes with management software that allows the USB bus power to be turned on and off at each individual port or the entire USB hub to be reset to factory settings. The EX-1596HMVS has flash memory where the desired startup state can be saved. Upon the next power-up, the last settings will be used. Various utilities and management software for operating systems such as Windows, Intel x86-64, ARM-based Linux, and Mac are included. The utilities have been written to work with application software programmed in various languages such as C#, C++, VB, Python, or even PHP.
USB 2.0 metal hub with six downstream USB ports
Supports software utilities for Windows and Linux
15KV ESD overvoltage protection for each output
Power supply from +7V to +48V DC via terminal block
Easy installation with integrated DIN rail mounting
Compact industrial design
Automatic detection of data transfer rate for connected peripherals
500mA maximum current on all 6 ports with self-power (power supply)
Automatic detection of input polarity at the power terminal block
Robust metal housing
1x LED voltage indicator and 6x LED active indicators
Chipset: Genesys GL852GT
Internal jumper for individual power control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (self-power)
Package contents:
EX-1596HMVS, USB 2.0 cable, DIN rail kit, driver CD, manual.
Docking stations + USB hubs
EUR158,91
Exsys GmbH 6 Port USB 2.0 Managed HUB, incl. Din-Rail
USB-B, 6 ports

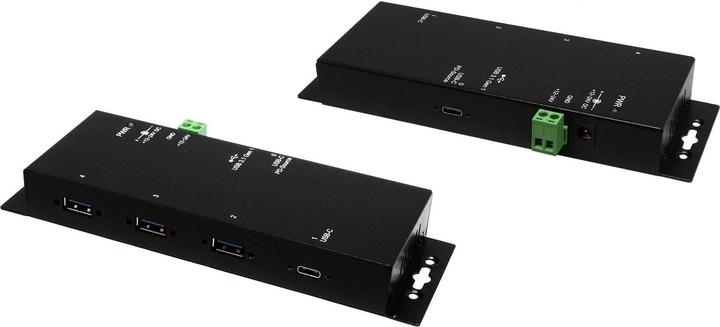

4. Exsys USB 3.1 HUB 4-Port Metal Housing
The EX-1191HMVS-PD is a USB 3.2 Gen 1 metal hub with USB-C PD (Power Delivery) support. The rear USB-C port (PD-Source) provides up to 60 W of charging power for the host notebook or tablet. The USB-C downstream port on the front allows you to connect and charge your peripherals. Only a single power supply from the EX-1191HMVS-PD is required for both the host and devices. The three USB-A and the USB-C downstream ports are each protected against overvoltage with 15 kV. The EX-1191HMVS-PD supports a power supply of +12 V to +24 V via a terminal block. It can be used in automation and office applications and meets the specific requirements of industrial applications.
USB 3.2 Gen 1 hub with one USB-C PD and three USB-A ports
15 kV ESD overvoltage protection for each port
Power supply of +12 V to +24 VDC via terminal block or DC socket
PD source with max. 60 W charging power
Fast charging with CDP and DCP mode for up to 2 A at each USB output
Compatible with all USB 1.1 to 3.2 peripherals
DIN-Rail kit available as an option
Metal housing for wall or rack mounting
Delivery includes:
EX-1191HMVS-PD, USB-C 3.2 Gen 1 cable 1 m, power supply 20 V/3.25 A, manual.
5. Exsys EX-1113HMS, 16xUSB 3.0/3.1 Metal HUB
The Exsys EX-1112HMS utilizes a USB connection from your computer to provide 16 downstream ports in a Type-A form factor. In accordance with the USB 3.0 standard (3.1 Gen. 1), it supports data transfer rates of up to 5 Gbps. With its metal housing, 15 kV ESD protection at each port, and thanks to the included mounting brackets as well as the option for installation in a 19" rack, it meets the specific requirements of industrial applications. Power can be supplied either via bus power or through a terminal block.
6. Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable
The EX-1188HMS-3 provides 7 USB 3.2 Gen 1 (formerly known as USB 3.0) downstream ports, with 15 kV ESD surge protection for each output. It is possible to connect up to seven external USB peripherals to a USB 3.2 Gen 1 port from a notebook, desktop computer, or server in a 19" rack. It can be used in automation, industrial, and office applications. Thanks to its special housing, the EX-1188HMS-3 can be mounted on the wall, under a table, or in a 19" cabinet (optionally with EX-6099).
USB 3.2 Gen 1 hub with seven downstream ports
15 kV ESD surge protection for each output
Power supply +7V to +24V DC via terminal block or DC socket
Power supply also optionally from USB bus +5V (bus-powered)
Automatic detection of data transfer rate for connected peripherals
Metal housing for wall, table, or optionally on mounting rail (EX-6099)
900 mA power on all 4 ports
Robust metal housing
1x LED voltage indicator
Two jumpers for individual control of operating mode (data and power):
Bus Power Jumper:
ENA = Bus power operation possible
DIS = Operation only with power supply possible (self-powered)
Host Control Jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is turned on
Delivery includes:
EX-1188HMS-3, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.
Docking stations + USB hubs
EUR127,88
Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable
USB-B, 7 ports
7. Exsys EX-1185HMVS-WT, 4x USB 3.1 (Gen1)
The EX-1185HMVS-WT features four screwable USB 3.2 Gen 1 (formerly USB 3.0) downstream ports, providing protection for connected devices against voltage fluctuations. This allows for the connection of up to four external USB peripheral devices to a USB 3.2 Gen 1 port from the computer in a 19" rack. The included USB cable can be attached to the EX-1185HMVS-WT using thumb screws without the need for a screwdriver. The hub meets the specific requirements of industrial applications. It is very compact and robust, supporting temperatures from -40°C to +85°C.
USB 3.2 Gen 1 HUB with four ports, 15KV ESD overvoltage protection
Protection for connected devices against voltage fluctuations
Supports an extended temperature range of -40°C to +85°C
Power supply from +7V to +48V DC via terminal block
Easy installation with integrated DIN-Rail mounting bracket
Compact industrial design with additional side heat sinks
Power supply optionally also from USB bus +5V (Bus-Power)
Simultaneously supports up to 1.5A USB Bus Power for each output
Supports battery charging in CDP and DBP mode
Chipset: Genesys
Internal jumper for individual power supply control:
- ENA = Bus Power operation possible
- DIS = Operation only with power supply possible (Self Power)
Package contents:
EX-1185HMVS-WT, USB 3.0 cable 1.5 m, DIN-Rail kit, manual.
8. Exsys 1116hmvs
The compact and robust EX-1116HMVS provides 16 screwable USB 3.0 downstream ports, with protection for connected devices against voltage fluctuations and 15 kV ESD overvoltage protection. This allows for the connection of up to sixteen external USB peripherals to a USB 3.0 port from the computer in a 19" rack. The included EX-K1571V cable (1.5 meters) with A connector to B connector can be attached to the EX-1116HMVS using thumb screws without a screwdriver. The EX-1116HMVS can be used in automation as well as office applications and meets the specific requirements of industrial applications. A DIN rail kit and two metal plates for mounting on the wall or in a 19-inch rack are included with the EX-1116HMVS. It can also be used as a charging station for tablets and smartphones.
USB 3.0 hub with 16 screwable ports. 15 kV ESD overvoltage protection for each port. Protection for connected devices against voltage fluctuations. Two USB 3.0 upstream ports (manually switchable between port A and B). Power supply 12 V to 24 V DC. Installation with integrated DIN rail mount. Supports all USB 1.1 to 3.0 compatible peripherals. Supports 1.5 A USB bus power for each output.
9. Exsys EX-1163HMS-WT 4 port USB 2.0 HUB Surge Protection & erw. Temperature range
The EX-1163HMS-WT provides 4 USB 2.0 downstream ports, each with 15 kV surge protection. This allows for the connection of up to four external USB peripheral devices to a USB 2.0 port from the computer in a 19" rack. It can be used in automation and office applications and meets the specific requirements of industrial applications. It is very compact and robust, supporting temperatures from -40 °C to +85 °C.
The USB 2.0 hub with four ports and 15 kV surge protection safeguards connected devices against voltage fluctuations. It supports an extended temperature range of -40 °C to +85 °C. The power supply ranges from +7 V to +48 V DC via a terminal block. User-friendly installation is facilitated with an integrated DIN rail mount. The compact housing is suitable for industrial use.
Automatic detection of the data transfer rate for connected peripherals is performed by the NEC uPD720112 chipset.
Included in the package: EX-1163HMS-WT, USB cable A to B connector, DIN rail kit, manual.
Docking stations + USB hubs
EUR204,88
Exsys EX-1163HMS-WT 4 port USB 2.0 HUB Surge Protection & erw. Temperature range
USB-B, 4 ports
10. Exsys 12in1 USB-C Dock with NB Stand
The EX-1223HM is a 12-in-1 USB-C docking station with an integrated stand function that elevates your laptop screen to a comfortable working height. Its versatile connectivity options allow you to connect all your peripheral devices. With MST support, different content can be displayed on up to 3 screens. USB-C Power Delivery (PD) enables you to connect your existing laptop power supply directly to the EX-1223HM.
12 in 1 docking station with integrated laptop stand
Durable and elegant aluminum die-cast housing
Supports USB-C PD charging function up to 100W
2x HDMI (4k@30Hz), 1x VGA (FullHD)
Supports Multi Stream Transport (MST) for up to 3 screens with different content (MacOS: only same content possible)
Gigabit Ethernet RJ45 port
4x USB 3.2 Gen 1, 1x USB-C PD port, 1x USB-C laptop port
Card reader for SD/SDHC/SDXC and microSD/SDHC/SDXC
For laptops/MacBooks with USB-C connection (DP Alt Mode).
