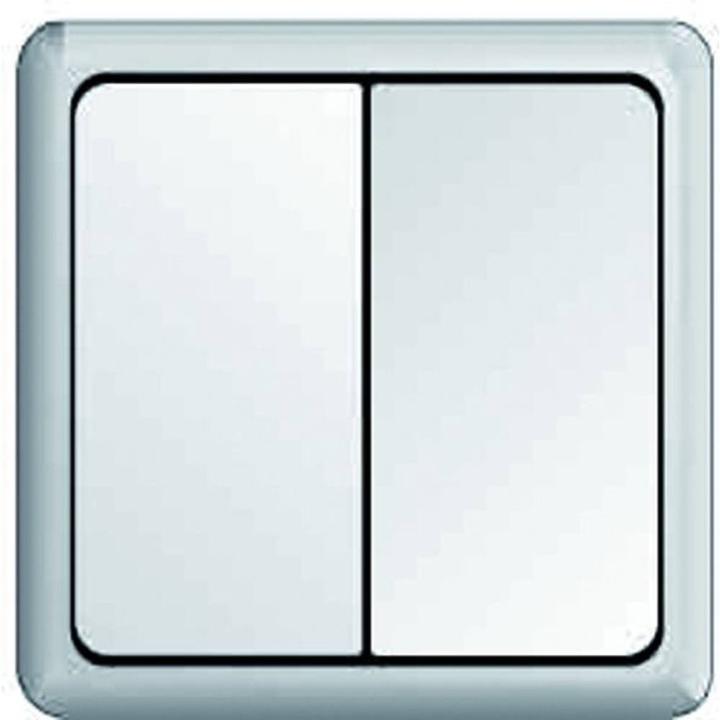

Elso double pushbutton 506390
Manufacturer: Elso
Designation: Double pushbutton 1A/42V pws
Type: 506390
Assembly: Basic element with complete housing
Design: Serial pushbutton
Operating type: Pushbutton
Number of operating rockers: 2
Number of modules (with modular design): 2
Number of poles: 2
Rated voltage: 42 V
Rated current: 1 A
With lighting: No
With signal lamp: No
Feedback contact: No
Mounting type: Surface-mounted
Mounting type: Screw mounting
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Pearl white
RAL number (similar): 1013
Transparent: No
Text field/inscription area: No
Imprint: Without
Suitable for protection class (IP): IP20
Unit width: 80 mm
Unit height: 80 mm
Device depth: 23 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Elso double push-button 506390: further details
Push-button 42 V rated current 1 A
Complete devices with frame and rocker.
Double push-button for switching/dimming two remote switching dimmers, two remote switching relays, or combination remote switching dimmer/remote switching relay. Series remote switching relays via two-wire control line. Surface-mounted flat. Colour: Pearl white. Screwless terminal connection for solid and stranded conductors up to 0.8 mm diameter.
EAN: 4013984104479.
