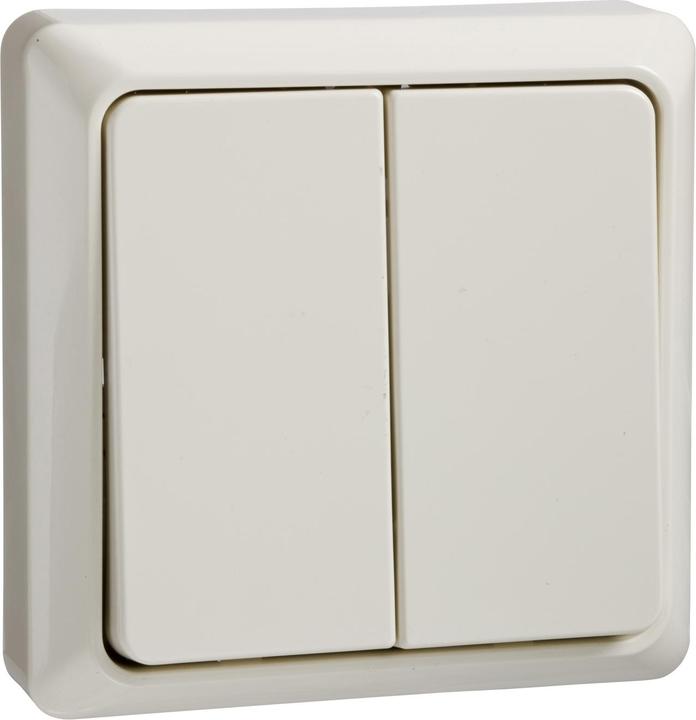

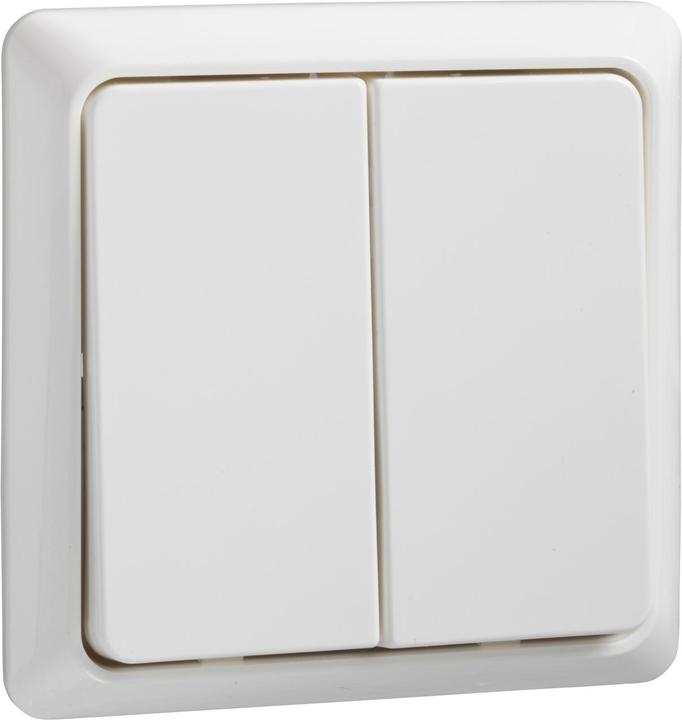

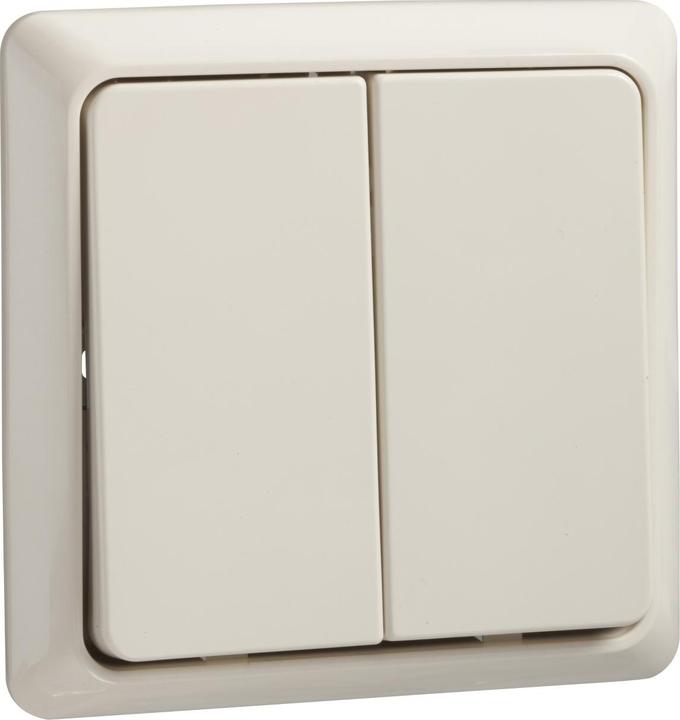

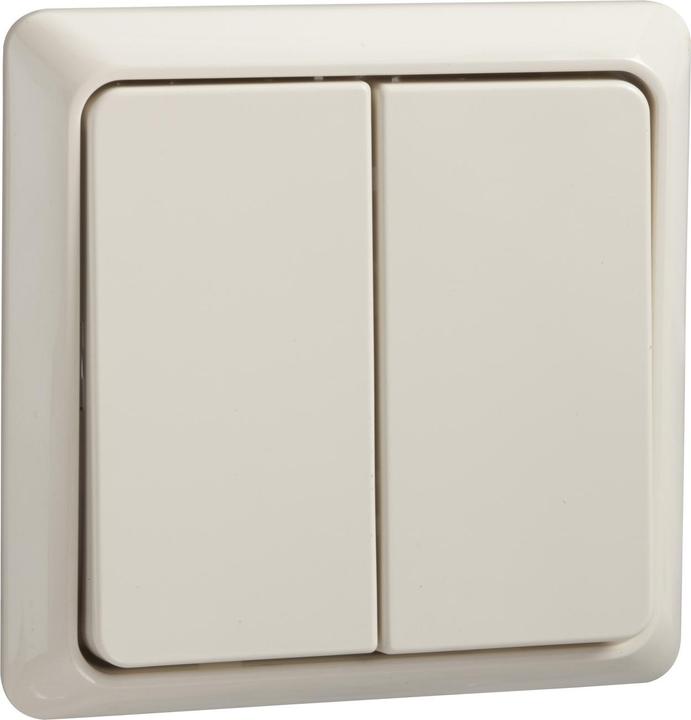

Elso double push-button RW 506194

Manufacturer: Elso
Designation: Double push-button RW flush-mounted
Type: 506194
Assembly: Basic element with complete housing
Design: Series push-button
Operating type: Push-button
Number of operating rockers: 2
Number of modules (with modular design): 2
Number of poles: 2
Rated voltage: 42 V
Rated current: 1 A
With lighting: No
With signal lamp: No
Feedback contact: No
Mounting type: Flush-mounted, screw mounting
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Pure white
RAL number (similar): 9010
Transparent: No
Text field/inscription area: No
Imprint: Without
Suitable for protection class (IP): IP20
Unit width: 80 mm
Unit height: 80 mm
Device depth: 23 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Further details:
Push-button with 42 V rated current and 1 A. Complete devices with frame and rocker. Double push-button for switching/dimming two remote switching dimmers, two remote switching relays, or combination remote switching dimmer/remote switching relay series remote switching relay via two-wire control cable flush-mounted. Colour: Pure white. Screwless terminal connection for solid and stranded conductors up to 0.8 mm diameter. EAN: 4013984104332.
