Best TDE Instruments products in the Energy monitors category
On this page you'll find a ranking of the best TDE Instruments products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

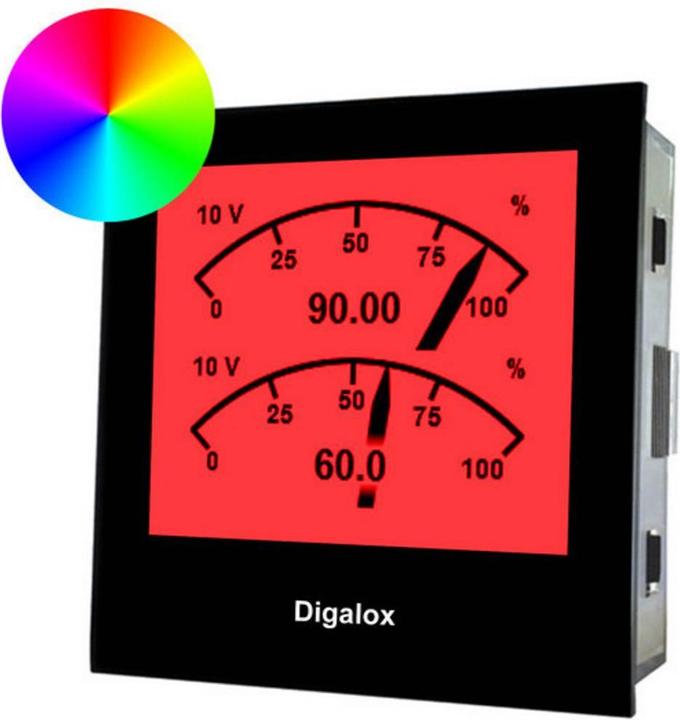

1. TDE Instruments Digital panel meter Digalox Graphical DIN meter for 2x 0/2 10VDC with multiple display R
The measuring mode analog signal 0/2 to 10 V DC is supported at two measuring inputs. Two parameters can be displayed simultaneously via the multiple display and threshold values can be provided with individual colour warnings. Min and max values are recorded and can be displayed and reset via jumper or external switch. The device records measured values of a parameter over a period of time from three minutes up to 14 days. The time range as well as the display of the graph of the measured values can be switched by an external switch. The values remain stored as long as the device is supplied with voltage. The following parameters can be configured via the associated USB configuration software: Scale deflection, scale labeling, display design (pointer, tacho, bar, etc.), start graphic, illumination color, threshold values for the alarm outputs, color warning per threshold value (illuminated or flashing), hysteresis and many more. The measured values in the measuring memory can be read out via software, and continuous measured value transmission can be activated. The measured values can be evaluated graphically within the software and exported as a CSV file.
2. TDE Instruments DPM802-TW voltmeter and ammeter
Digital panel meter for AC or DC measurement. The voltage measuring range has an auto-range function that automatically sets the appropriate measuring range. The current measuring range can be selected via contacts.
3. TDE Instruments Digital Panelmeter Digalox Graphical DIN meter for 10V/20mA DC with multiple display R
The multi-display feature allows two parameters to be displayed simultaneously, with threshold values highlighted by individual color warnings. Minimum and maximum values are recorded and can be displayed and reset using a jumper or external switch. The device records measurements of one parameter over a time span ranging from three minutes to 14 days. The time range and the display of the measurement trend graph can be switched via an external switch. The values remain stored as long as the device is powered. Using the associated USB configuration software, the following parameters can be configured: scale range, scale labeling, display design (pointer, dial, bar, etc.), start graphic, illumination color, threshold values for alarm outputs, color warnings per threshold (steady or blinking), hysteresis, and more. The software allows for reading the measurement values from the memory and activating continuous data transmission. Measurement values can be graphically analyzed within the software and exported as a CSV file.
Energy monitors
EUR249,–
TDE Instruments Digital Panelmeter Digalox Graphical DIN meter for 10V/20mA DC with multiple display R

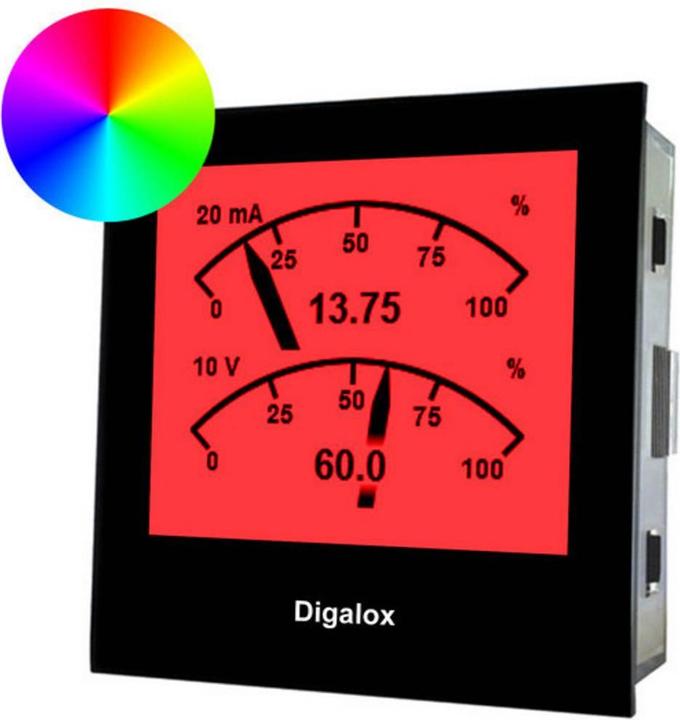

4. TDE Instruments Digital DIN rail meter Digalox Graphic DIN meter for 2x 0/4 20mA with multiple display
It supports the measurement type Analog signal 0/4 to 20 mA DC at two measurement inputs. The multi-display allows two parameters to be displayed simultaneously, and thresholds can be assigned individual color warnings. Minimum and maximum values are recorded and can be displayed and reset via a jumper or external switch. The device records measurement values of one parameter over a duration of three minutes to 14 days. The time range and the display of the trend graph of the measurement values can be switched via an external switch. The values remain stored as long as the device is powered. Using the associated USB configuration software, the following parameters can be configured: scale range, scale labeling, display design (pointer, dial, bar, etc.), start graphic, illumination color, threshold values for alarm outputs, color warning per threshold (steady or blinking), hysteresis, and much more. Through the software, measurement values can be read from the memory and continuous data transmission can be activated. The measurement values can be graphically evaluated within the software and exported as a CSV file.
Energy monitors
EUR249,09
TDE Instruments Digital DIN rail meter Digalox Graphic DIN meter for 2x 0/4 20mA with multiple display
5. TDE Instruments DPM-802-TW-TV Voltmeter and Am
Digital panel meter for AC or DC measurement. The voltage measuring range has an auto-range function that automatically sets the appropriate measuring range. The current measuring range can be selected via jumpers.

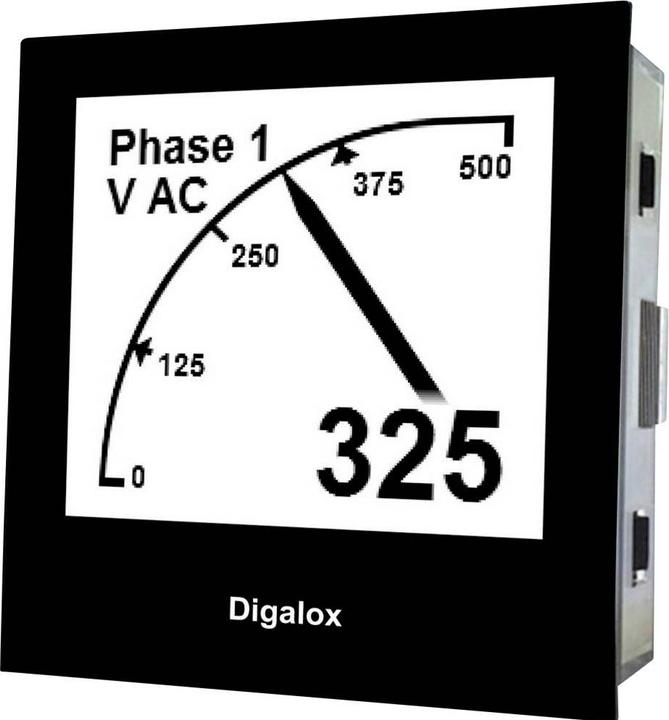

6. TDE Instruments Digalox DPM72-MPN+-RS485 Digital Panel Meter
Innovative, individual, and multifunctional: The DPM72-MP+ and DPM72-MPN+ measuring devices for electrical quantities stand out due to their extensive functions and configuration options. They are suitable for measuring various types of measurements (AC/DC voltage, AC/DC current, frequency, power, power factor) and offer comprehensive features. The individual configuration of the devices and the real-time transmission of all measured values are ensured by the Modbus interface. Thus, the DPM72 measuring devices are versatile and enable a wide range of applications for industrial use. These multifunctional measuring devices are particularly in demand for monitoring machine and operational data and are suitable for modernizing outdated systems, as they are especially retrofit-friendly. Additionally, they can be mounted on DIN rails or attached to other surfaces through appropriate holes in the housing.
Extensive customizability via software: Using the configuration software Digalox Manager, the measuring devices can be individually set up. Once configured, the DPM72 reliably transmits your measured values in real-time. The software allows for reading the measured values stored in memory, which can then be graphically analyzed and exported as a CSV file.
Switching outputs: Two galvanically isolated alarm outputs allow for triggering an alarm when individually adjustable threshold values are reached, as well as executing on/off operations.
Modbus interface: The RS485 Modbus interface of the DPM72 measuring devices enables both configuration and transmission of all measured values. The RS485 Modbus protocol complies with the established industrial standard, allowing the DPM72 measuring devices with Modbus interface to be universally combined with existing Modbus devices from other manufacturers.
7. TDE Instruments DPM72-MPN Digalox DPM72-MPN Gr
Graphical measuring device that combines the advantage of easy readability of an analog display with the accuracy of a digital measuring device. The multi-display with RGB lighting can show up to 4 parameters simultaneously and assign individual color warnings for threshold values. It supports a wide range of measurement types (AC/DC voltage, AC/DC current via external shunt resistor, frequency, power, cosine phi). The device can switch between the individual measurement functions during operation using a relay contact. Minimum and maximum values for up to 4 parameters are recorded and can be activated and reset via a jumper or external switch. The device records measurement values of one parameter over a duration of three minutes to 14 days. The time range and the display of the trend graph of the measurement values can be switched using an external switch. The accompanying USB configuration software allows the following parameters to be configured: scale range, scale labeling, display design (pointer, dial, bar, etc.), start graphic, lighting color, threshold values for alarm outputs, color warning per threshold (steady or blinking), hysteresis, and much more. The software can read the measurement values from the memory and enable continuous measurement value transmission for up to 4 parameters. The measurement values can be graphically analyzed within the software and exported as a CSV file.

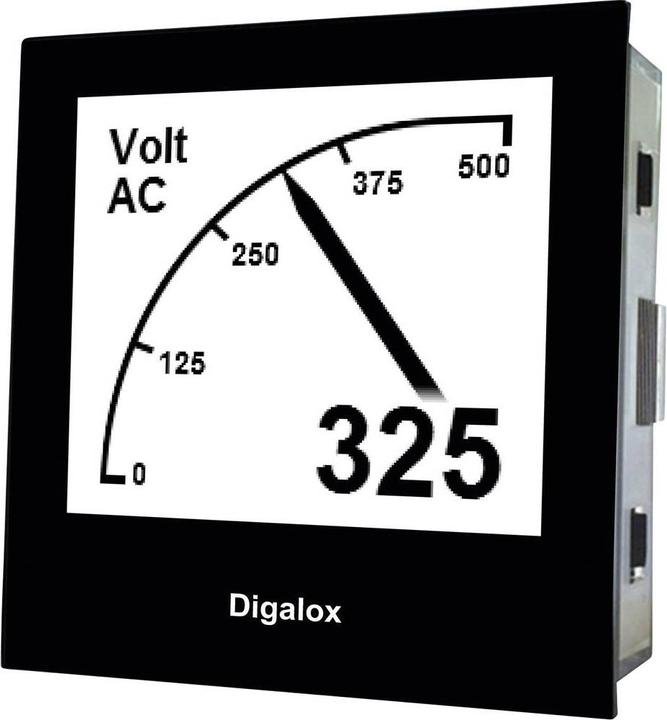

8. TDE Instruments Digalox DPM72-AV Graphic DI
Graphical measuring device that combines the advantages of easy readability of an analog display with the accuracy of a digital measuring device. It supports common measurement types (AC/DC voltage, AC/DC current, frequency, analog signal 0/2 to 10V, and 5A for current transformers). The full scale of the pointer and the scaling of the analog signal and current transformer measurement can be easily selected via DIP switches, or there is an option for automatic scale adjustment. The device can switch between voltage and current measurement during operation using an external switch. Minimum and maximum values are recorded and can be activated and reset via a jumper or external switch. The device records measurement values over a duration of 3 minutes to 14 days. The time range and the display of the trend graph of the measurement values can be switched using an external switch.
