Best selling Cable joints from HKL
On this page you’ll find a ranking of the best Cable joints from HKL. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

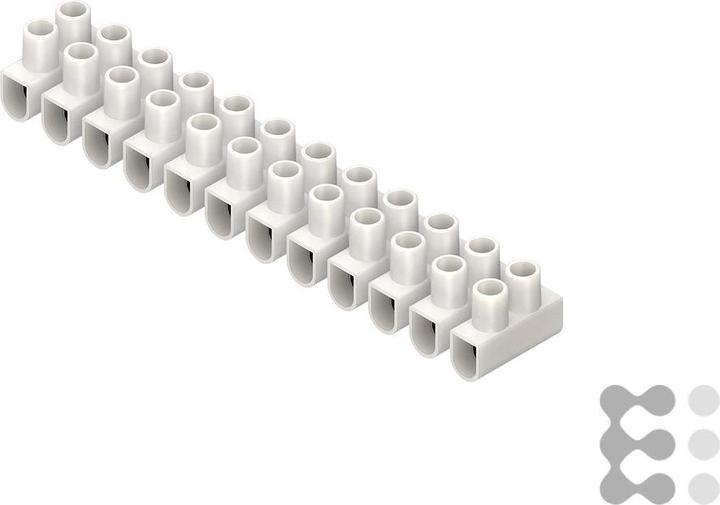

1. HKL PVC luster terminal 129.3 1.0-4.0qmm (old 129.N)
The PVC terminal block 129.3 from HKL Baushop is a high-quality connection terminal designed for the connection of electrical conductors. It provides a reliable and safe connection for solid, stranded, and multi-stranded conductors with a cross-section of 1.0 to 4.0 mm². With a total of 12 separable connection points, this terminal allows for flexible use in various applications. The terminal screws are captive, making handling easier and increasing safety. The terminal is halogen-free and meets the requirements of DIN EN 60998, making it a suitable choice for use in electrical installations. The use of polypropylene as the material for the insulating body ensures high resistance and durability. This connection terminal is ideal for anyone looking for a reliable and safe solution for their electrical connections.
- Suitable for solid, stranded, and multi-stranded conductors
- 12 separable connection points for flexible applications
- Halogen-free material for increased safety
- Captive terminal screws for easy handling
- Complies with the requirements of DIN EN 60998.

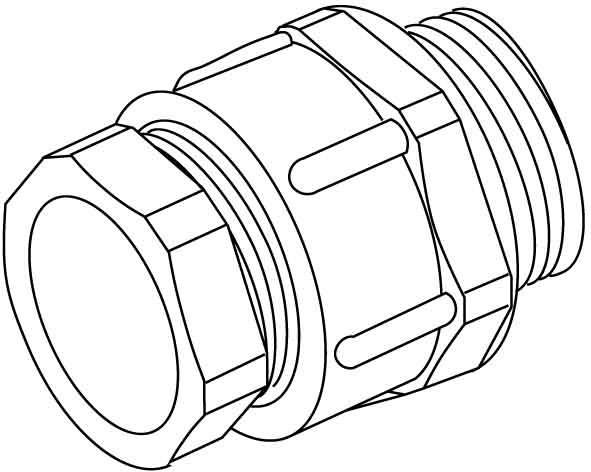

2. HKL Cable gland
HKL cable gland 1250M1609
Manufacturer: HKL
Designation: Cable gland
Type: 1250M1609
Thread type: Metric
Nominal thread size metric/PG: 16
Thread pitch: 1.5 mm
Thread length: 11 mm
Width across flats: 19 mm
Hexagon corner size: 20.5 mm
Suitable for cable diameter: 7 - 9 mm
Material: Plastic
Material grade: Polyamide (PA)
Surface protection: Untreated
Halogen-free: Yes
Glass-fibre reinforced: Yes
Protection class (IP): IP54
Impact-resistant: Yes
Colour: Grey
RAL number: 7035
Bending protection: No
With locknut: No
Engaging in opening: No
Version: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: No
Type of seal: Sealing ring
Separable gland: No
Application temperature: -40 to 100 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without
For armoured cables: No
EMC version: No
Shielded: No
HKL cable gland 1250M1609: Further details
CONUS cable gland similar to former DIN 46320, with metric connection thread according to DIN EN 60423, glass fibre reinforced, with flame protection, halogen-free.
Nominal size: M 16 for cable diameter: 7 - 9 mm
Connection thread length: 11 mm
Width across flats 1: 17 mm
Width across flats 2: 19 mm
Glow wire test according to DIN EN 60695-2-10+11/VDE 0471-2-10+11: 650°C
Protection class: IP54 with connection thread sealing ring 987M (please order separately!): IP65
Operating temperature range: -40° to 100°C
Material of screw fitting body: Polyamide
Material of sealing ring: SBR/NBR
Material of thrust ring: Galvanised blue-passivated steel
Colour: Light grey
RAL: 7035 (similar)
EAN: 4011126365092.

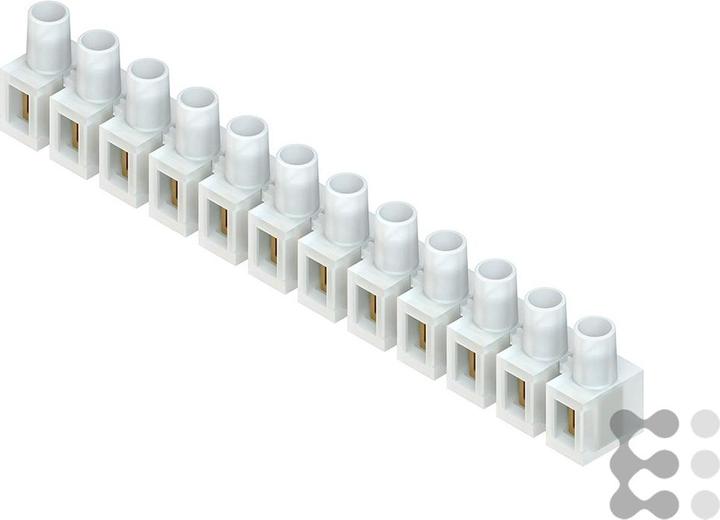

3. HKL Connecting clamp
The HKL connection terminal 469.N is a high-quality terminal block designed for reliable and secure electrical connections. It meets the requirements of DIN EN 60998 and features a halogen-free design suitable for various electrical applications. With a rated voltage of 450 V and a rated current of 57 A, this connection terminal is ideal for connecting solid and stranded conductors with a cross-section of 4 to 10 mm². The terminal has 12 detachable connection points, allowing for flexible and easy installation. The use of high-quality materials such as PA for the insulating part and galvanized steel for the terminal screws ensures high durability and reliability. Installation is done via screw connections, guaranteeing a secure connection.
- Halogen-free design for increased safety
- Solid and stranded connection from 4 to 10 mm²
- 12 detachable connection points for flexible applications
- Made from durable materials such as PA and brass
- Suitable for a maximum ambient temperature of T85 according to EN 60998.
4. HKL IPON cable gland
The IPON cable gland from HKL Baushop is a high-quality solution for the safe and reliable connection of cables. It features a metric connection thread according to DIN EN 60423 and offers an IP68 protection rating, making it ideal for use in demanding environments. This cable gland is suitable for cable diameters ranging from 26 to 35 mm and ensures high stability through its internal strain relief. The body of the gland is made of nickel-plated brass, which not only ensures durability but also provides an appealing appearance. The IPON cable gland is designed for temperatures ranging from -30 °C to 120 °C, offering a wide range of application possibilities. It is a reliable choice for anyone who values quality and safety.
- IP68 protection rating for high water resistance and dust protection
- Internal strain relief according to EN 50262 for additional stability
- Made from nickel-plated brass for durability
- Temperature range from -30 °C to 120 °C for versatile applications
- Metric connection thread according to DIN EN 60423 for easy installation.

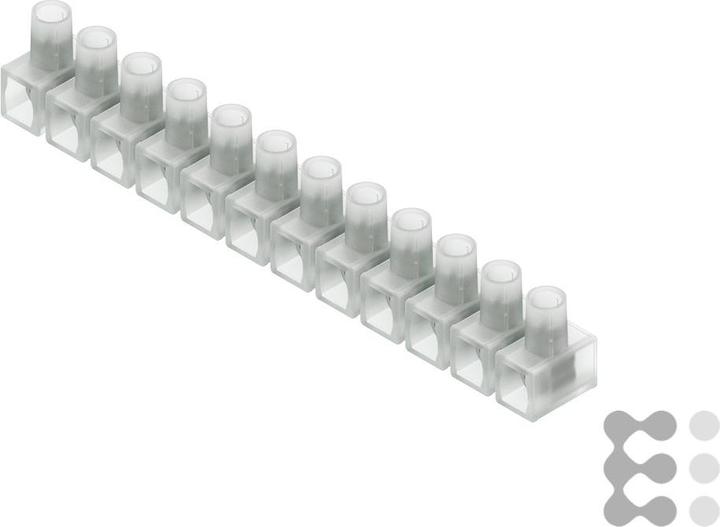

5. HKL PVC box terminal 465.N 4.0qmm
Connection terminal according to DIN EN 60998, with 12 separable connection points, halogen-free. Dimensions approximately 17.5 x 15 x 122 mm. Stripping range 1.5 to 4.0 mm². Connection options for 5 x 1.5 mm², 2.5 mm², 4.0 mm². Material of insulating part: PA. Material of clamping bolt: brass. Material of clamping screws: galvanized steel. Max. ambient temperature according to EN 60998: T85. Rated voltage: 450. Color shade: natural.
6. HKL Adapter
Adapter with Pg thread according to DIN 40430 and metric internal thread according to DIN EN 60423, fiberglass reinforced and halogen-free. External thread Pg 13.5, internal thread M 20, thread length outside 9 mm, thread length inside 8.5 mm, key size 15. With connection thread sealing ring 987, please order separately! IP68, operating temperature range -30 to 100 °C, material polyamide, color light gray RAL 7035, similar to 1897P13M20.

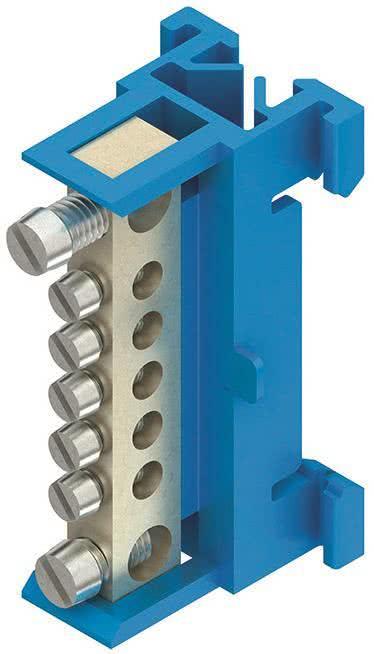

7. HKL Neutral and protective conductor- 651N/7 Terminal blue
The HKL neutral and ground terminal block 651N/7 is a high-quality cable connection specifically designed for mounting on DIN rails. This terminal block allows for a reliable connection of neutral and ground conductors and is intended for use in electrical installations. It offers easy and secure installation, as it can be snapped onto standard TS 35 mm mounting rails. The terminal block is halogen-free and meets the fire class V0 requirements according to UL 94, making it a safe choice for various applications. With seven connection points and a wide clamping range, it is versatile and suitable for different cable cross-sections. The use of high-quality materials such as PA for the insulating body and brass for the terminal rail ensures a long lifespan and high reliability.
- Screw connections for secure electrical connection
- Clamping range for solid, single-core conductors from 6.0 to 16.0 mm²
- Temperature range from -30°C to 80°C
- Halogen-free and meets fire class V0 according to UL 94
- Suitable for mounting on standard TS 35 mm DIN rails.
Cable joints
Quantity discount
EUR11,16 per piece for 2 units
HKL Neutral and protective conductor- 651N/7 Terminal blue
8. HKL Seal nipple
The sealing nipple 485M40 from HKL Baushop is a reliable solution for cable connections, providing secure sealing and protection against environmental influences. With a nominal diameter of 40 mm and a sealing range of 19 to 25 mm, this sealing nipple is ideal for various applications in electrical engineering. It is made from halogen-free polyethylene and meets the protection class IP54, meaning it is protected against dust and splashing water. The sealing nipple features a pre-punched opening and a metric connection thread according to DIN EN 60423, which facilitates installation. The temperature range of -40 °C to 80 °C makes it versatile, even under extreme conditions. The light gray color corresponds to RAL number 7035 and blends harmoniously into various environments.
- Pre-punched opening for easy installation
- Metric connection thread according to DIN EN 60423
- Protection class IP54 for dust and splash water protection
- Temperature range from -40 °C to 80 °C
- Halogen-free material for increased safety.

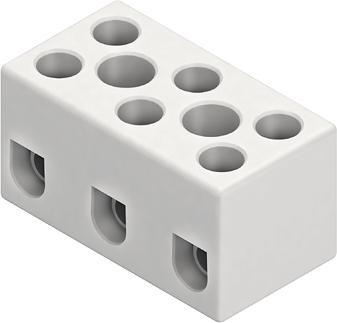

9. HKL Porcelain terminal 3-pole 1128.G 1-4qmm
Connection terminal according to DIN EN 60998, with mounting holes, halogen-free. The connection terminal must be fixed in position. Dimensions approximately 16.5 x 17 x 31.5 mm. Clamping range 1.0 to 4.0 mm². Poles 3. Material of insulation part: porcelain, glazed. Material of clamping bolt: brass. Material of clamping screws: galvanically galvanized steel. Max. ambient temperature: 200 °C. Rated voltage: 450 V. Color shade: white 1128.
Cable joints
Quantity discount
EUR10,24 per piece for 2 units
HKL Porcelain terminal 3-pole 1128.G 1-4qmm
10. HKL Extension
HKL extension 51M1620
Manufacturer: HKL
Designation: Extension
Type: 51M1620
Thread type internal thread: Metric
Thread size internal thread (metric): 20
Thread type external thread: Metric
Thread size external thread (metric): 16
Material: Brass
Material grade: Other
Nickel-plated: Yes
Explosion-proof: No
Further details: Extension with metric connection thread and metric internal thread to DIN EN 60423, halogen-free.
External thread: M 16
Internal thread: M 20
External thread length: 5 mm
Internal thread length: 10.5 mm
External Ø: 22 mm with connection thread sealing ring (please order separately!): IP68
Material: Brass, nickel-plated
EAN: 4011126366532.
