HKL Connecting clamp
6 pieces in stock at supplier
Product details

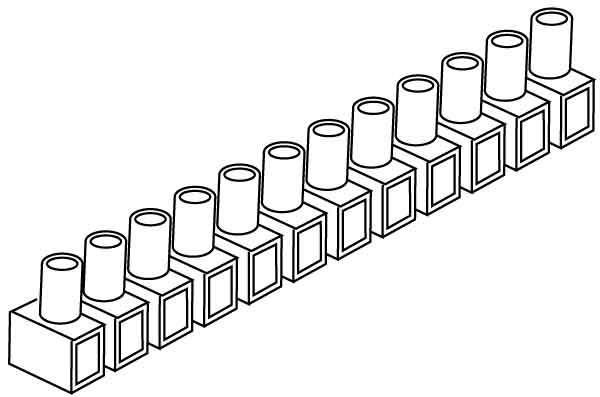

The HKL connection terminal 469.N is a high-quality terminal block designed for reliable and secure electrical connections. It meets the requirements of DIN EN 60998 and features a halogen-free design suitable for various electrical applications. With a rated voltage of 450 V and a rated current of 57 A, this connection terminal is ideal for connecting solid and stranded conductors with a cross-section of 4 to 10 mm². The terminal has 12 detachable connection points, allowing for flexible and easy installation. The use of high-quality materials such as PA for the insulating part and galvanized steel for the terminal screws ensures high durability and reliability. Installation is done via screw connections, guaranteeing a secure connection.
- Halogen-free design for increased safety
- Solid and stranded connection from 4 to 10 mm²
- 12 detachable connection points for flexible applications
- Made from durable materials such as PA and brass
- Suitable for a maximum ambient temperature of T85 according to EN 60998.
Cable connection type | Jointing clamp |
number of poles | 12 |
Item number | 25380898 |
Manufacturer | HKL |
Category | Cable joints |
Manufacturer no. | 469.N |
Release date | 27/4/2023 |
Exact colour description | Nature |
Material | Brass, galvanized steel, POLYAMIDE |
Material group | Metal, Plastic |
Cable connection type | Jointing clamp |
number of poles | 12 |
Country of origin | Germany |
CO₂ emissions | 0,25 kg |
Climate contribution | EUR 0,12 |

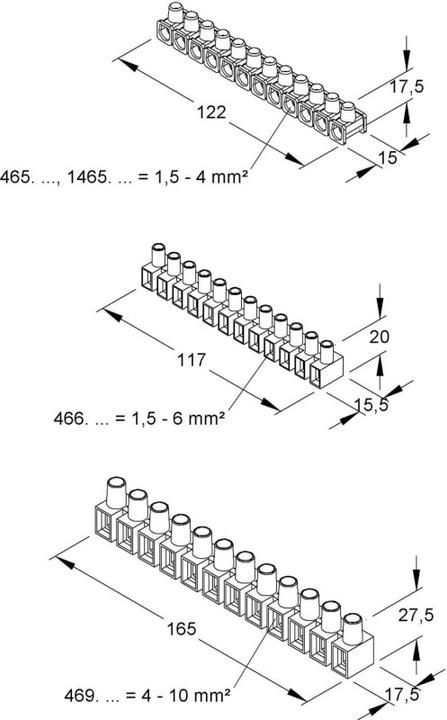

Length | 165 mm |
Width | 17.50 mm |
Height | 27.50 mm |
