Best selling Cable joints from 3M
This page always stays fresh and updates automatically.

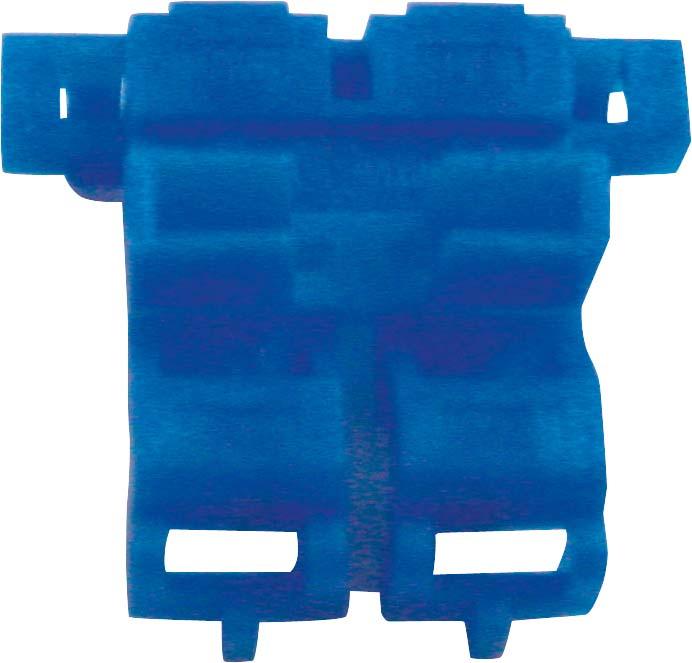

1. 3M 972 Flat fuse holder PU=25 pieces
The 3M flat fuse holder 972 is a high-quality connection terminal designed for the efficient connection of cables with a cross-section of 0.75 mm² to 1.5 mm². Made from durable polypropylene, this branch connector offers reliable insulation and can withstand temperatures of up to 105 °C. With gold-plated contacts, the flat fuse holder ensures optimal electrical conductivity and longevity. The packaging unit includes 25 pieces, making it a practical choice for various applications in electrical installation. The 972-A is ideal for use in a variety of electrical projects where a secure and lasting connection is required.
- Made from blue polypropylene for high insulation quality
- Suitable for cable cross-sections from 0.75 mm² to 1.5 mm²
- Gold-plated contacts for improved electrical conductivity
- Temperature resistant up to 105 °C.

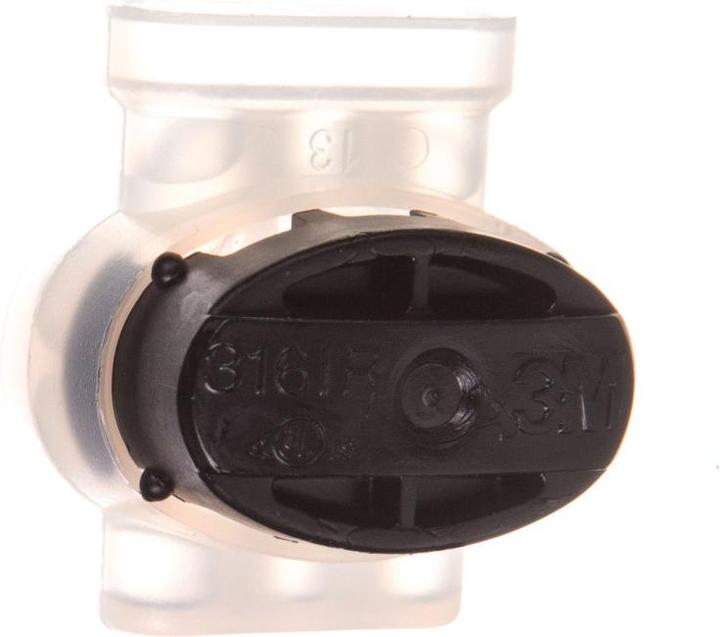

2. 3M 316-IR
3. 3M 315 Connector
The 3M Scotchlok connector is suitable for connecting single or multi-stranded cables in installation wiring technology. With a cross-section of 0.5-1.5 square millimeters, it allows for a continuous connection even with uncut wires. The black Scotchlok connector withstands a maximum voltage of 30 volts and a temperature limit of 105 °C. It can be used in the fields of control, measurement, and regulation, as well as in the electrical and switchgear construction of vehicles. Its operation is based on the principle of the U-element: the wires to be connected are inserted into the connector without the need to remove their insulation beforehand. By applying gentle pressure with the Scotchlok tool, the U-elements remove the wire insulation, thereby increasing the contact area and establishing contact with the conductor. The spring-loaded U-element grips the individual wires, ensuring a mechanically strong, vibration-resistant, electrically flawless, and durable connection. The connector has been tested in the high-voltage testing room of 3M Deutschland GmbH according to VDE 0606, 0607, 0303, 0470, and IEC23F, and has passed all conditions. All Scotchlok connectors are UL and CSA listed.
4. 3M Cable sleeve Cable Ø range: 14
The Series 91-AHSC enables a simple, quick, and secure cable connection and is suitable for all common plastic cables with PVC or VPE insulation in low voltage applications. The connection kits can be installed both underground and in above-ground outdoor installations as well as indoor systems. They are easy and quick to assemble, resistant to aging and chemicals, and possess very good mechanical strength.

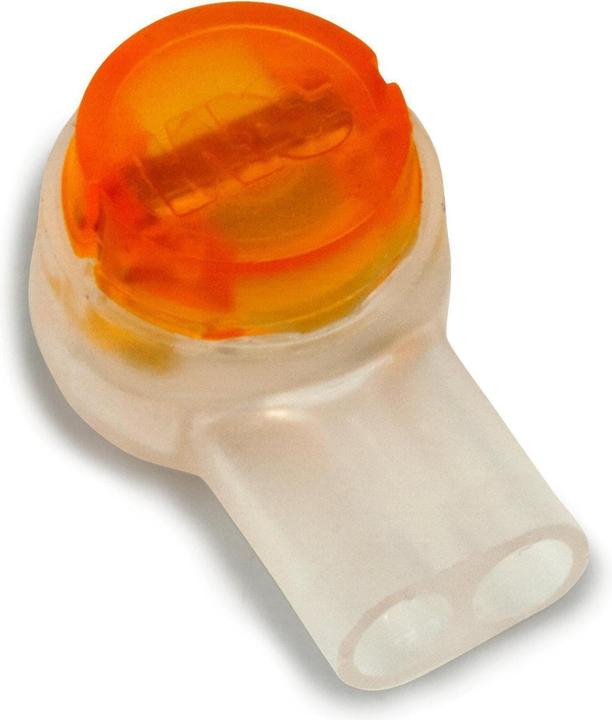

5. 3M Single wire connector
Telephone clamp (100 pieces). 100 terminals for wires. 2 clamping points. Sturdy polypropylene construction. Conductor diameter from 0.4 mm to 0.9 mm. Grease-filled.
6. 3M Connection sleeve 0.5x1.5-5x2.5qmm 92-NBA 0
The 3M Scotchcast Premium Resin Cable Connection Kits contain Scotchcast Cable Resin 40, a high-quality, two-component polyurethane compound designed for general electrical insulation, moisture sealing, and mechanical protection. The 3M Scotchcast Casting Resin Connection Kit of the 92-NBA series is designed for one to five core, unshielded low-voltage plastic cables. It ensures electrical insulation and mechanical protection for cable connections. Free from SVHC, it complies with EN 50393 and can be used indoors and outdoors, as well as underground or underwater. The transparent, one-piece casting shell can be easily folded together and locks automatically. Additionally, pre-shaped, perforated foam seals are used, eliminating the previously time-consuming need for saws and tape for a tight seal. During the pouring of the included 3M Scotchcast Casting Resin 40, a GMG system for closed mixing and pouring is utilized, effectively excluding contact with the casting resin during processing. The transparent mixing bag ensures visual control of the mixing process. After use, the mixing bag with the remnants of cured casting resin can be disposed of as regular household waste. Disposal as hazardous waste is not necessary.
7. 3M Giessharz Verbindungsgar.
The 3M Scotchcast Resin Connection Kit 92-NBA GS is used for the insulation and mechanical protection of cable connections in low voltage applications up to 1 kV. The eight product variants in sizes 0 to 7 cover a wide range of conductor cross-sections, from 1.5 mm² to 240 mm². Additionally, sizes 1 and 3 can be supplied with a connector block. The innovative design of the 3M Scotchcast Resin Connection Kit 92-NBA GS allows for clean and quick installation through the patented pouring spout. With the foam seals included in the kit, the phase spacer, and the complete transparency of the shell, correct cable positioning can be ensured. The super-hydrophobic and CMR-free 3M Scotchcast Premium Epoxy Resin 4 GS meets the requirements according to IEC 60455-3-8, complies with EU directives 2011/65/EU (RoHS) and 1907/2007/EC (REACH), and guarantees electrical insulation at the highest level for professional use.
8. 3M 94-EB 65-1 End closure inside+outside 1x400-1000 12/20FL
The 3M QTII end termination kits are designed for connecting plastic-insulated, copper wire screened single-core cables (Umax up to 36 kV) for applications involving transformers, switchgear, motors, and other outdoor equipment. The one-piece 3M Quick Term II end termination made of HTV silicone rubber ensures a moisture-tight connection, thus providing a long service life. It is suitable for use with single-core plastic cables with wire screening according to VDE 0276-620 (IEC 60502).
9. 3M Germany Cold connection set 93AK2201
The 3M cold shrink kit for medium voltage Series QS200 is designed for the unique cold shrink installation system. The products are delivered pre-stretched on a removable support coil, allowing for efficient and easy installation. The electric field control and the Faraday cage, both integrated into the insulating body, simplify the installation process. The specific properties of the insulating silicone body allow for the connection of a variety of cable cross-sections. Connection kits for medium voltage are available both with and without screw connectors. The 3M cold shrink kits for medium voltage have been developed as a simple and safe solution for connecting medium voltage cables.
10. 3M Heat shrink sleeve FVAM 3/6
The 3M heat shrink sleeve FVAM 3/6 is a highly developed connection kit specifically designed for filled and unfilled telecommunications and signal cables without pressure monitoring. This kit meets the technical delivery conditions of Deutsche Telekom AG and provides a reliable solution for connecting cables in the low voltage range. The included protective insert acts as a vapor barrier, protecting the cable splice from excessive heat and mechanical influences. An innovative temperature indicator on the sleeve shows through a color change when the shrinking process is complete. Additionally, a rust-resistant closure rail ensures that the sleeve remains stable and does not warp during shrinking. The package includes all necessary components to ensure a safe and effective installation.
- Temperature indicator color shows the shrinking process
- Vapor barrier protects against moisture
- Mechanical protection through protective insert
- Rust-resistant closure rail for stability.
