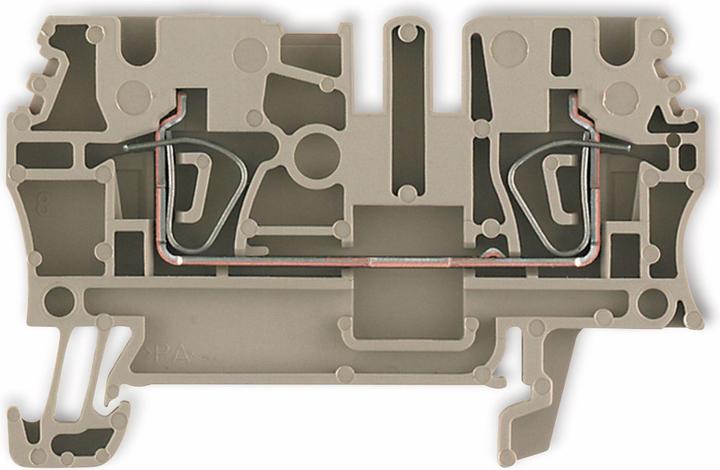

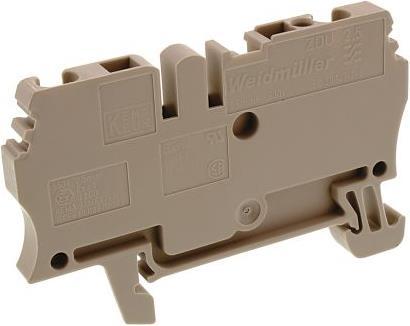

Weidmüller ZDU2.5 beige standard terminal,2.5mm 24A

Price in EUR including VAT, plus shipping
Ratings
BrandMore from Weidmüller
Delivered between Tue, 24/6 and Thu, 26/6
More than 10 items in stock at supplier

Product details

Series: ZDU
Wire size: 30 to 12 AWG
Wire gauge: 2.5 mm²
Color: Brown
Rated current: 31 A
Number of levels: Single
Connection type: Terminal
Operating voltage: 600 V
Operating temperature min.: -50 °C
Operating temperature max.: +120 °C

CSA, UL, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds register of shipping, SETI. ZDU 10 and ZDU 16 terminals have CSA and UL approvals only. Standard terminal blocks. Z Series screwless DIN mounting terminals offer a top entry cable entry system that saves time and space. Quick and easy installation as the conductor is inserted through the clamping system. The system with cable entry from the top means that conductor entry and terminal actuation are from the same direction. Features and benefits include spring clamp connection, continuous operating temperature of 120 °C, self-extinguishing according to UL94V-0, available in various sizes, and ideally suited for use where space is limited.

Key specifications

Item number
9942762

General information

Manufacturer
Weidmüller
Category
Cable joints
Manufacturer no.
1608510000
Release date
22/10/2018
External links
Manufacturer's site (de)

Colour

Exact colour description
Dark beige
Colour
Beige

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Cable connection type
Terminal blocks
Suitable for cable cross-section
4 mm²

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 x

Product dimensions

Length
59.50 mm
Width
5.10 mm
Height
59.30 mm
Weight
7.15 g

14-day cancellation right
30-day right of return
24 Months statutory warranty
