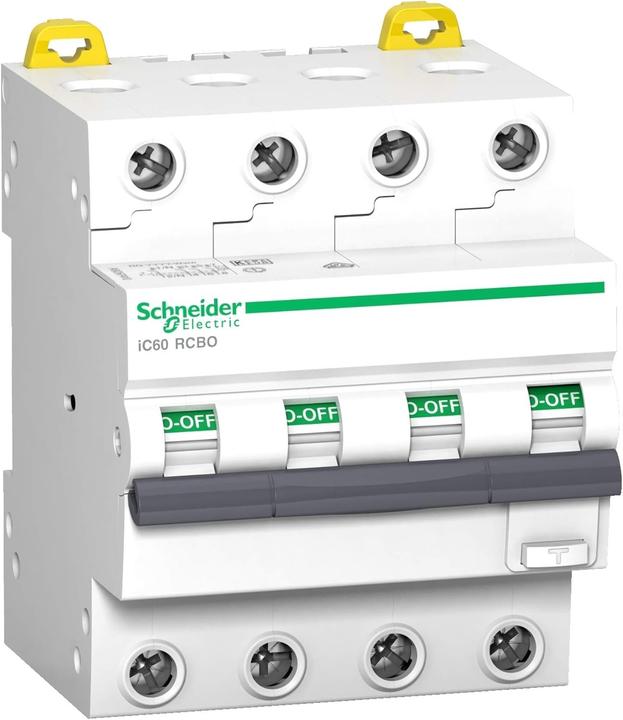

Schneider Electric SE A9D52420 FI/LS switch iC60N 300mA
Only 1 piece in stock at supplier
Rated current5
Product details
The SE A9D52420 FI/LS switch iC60N from Schneider Electric is a highly advanced residual current circuit breaker that combines overcurrent protection and residual current protection in a compact device. With a rated current of 20A and an earth fault sensitivity of 300mA, this switch provides comprehensive protection for final circuits. It meets the strict standards IEC/EN 61009-1 and IEC/EN 60947-2 and is designed for use in 230V AC systems. The switch is 4-pole and features a thermomagnetic tripping unit that ensures reliable operation. The mechanically separated indicator clearly shows whether a fault trip has occurred, while the green marking on the switch lever indicates the switching position. Tool-free installation allows for easy setup, and the option to connect additional auxiliary modules enhances the functionality of the device.
- Mechanically separated indicator for fault trip
- Test button for regular functional testing
- Thermomagnetic tripping unit for reliable protection
- Tool-free installation for easy setup
- Expandable functionality through optional auxiliary modules.
Circuit breaker type | Circuit breaker, Fault current circuit breaker |
Mounting type | Flush-mounted |
number of poles | 4 |
Length | 45 mm |
Width | 72 mm |
Item number | 32098298 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | A9D52420 |
Release date | 16/11/2022 |
External links |
Colour | White |
Exact colour description | White |
Circuit breaker type | Circuit breaker, Fault current circuit breaker |
Mounting type | Flush-mounted |
number of poles | 4 |
Tripping characteristic | C |
Rated current | 20 A |
Rated current | 0.3 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.30 A |
Protection type (IP code) | IP20 |
Country of origin | Portugal |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 18,08 kg |
Climate contribution | EUR 0,44 |
Items per sales unit | 1 pcs. |
Length | 45 mm |
Width | 72 mm |
Height | 86 mm |
Weight | 423 g |
