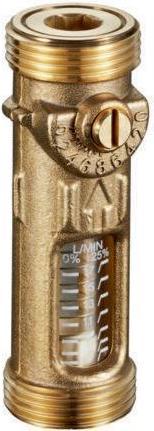

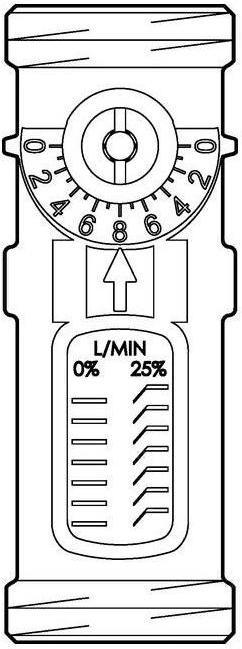

Flat-sealing on both sides - Direct reading of the set flow rate - Operating temperature: up to +100 °C Further technical features: - Max. Max. medium temperature (continuous operation): 100 - With coupling connection 2: No - With coupling connection 1: No - With extended measuring nipples: No - Nominal inside diameter: DN 20 - Suitable for hot drinking water: No - Min. medium temperature (continuous operation): 0 - Suitable for drinking water: No - With thermometer: No - Thermostatic: No - With impulse line connection: No - Pressure stage article: PN 10 - Angle of spindle: 90° - Motor controlled: No - Material of housing: Brass - Operating device: Static - Manual operation: Yes - With level indicator: Yes - Suitable for heating water: Yes - With measuring nipple: No - With drain valve: No - With measuring connection: No - KIWA test seal: No - Material quality: Brass, dezincification resistant (DZR) - Surface protection untreated
