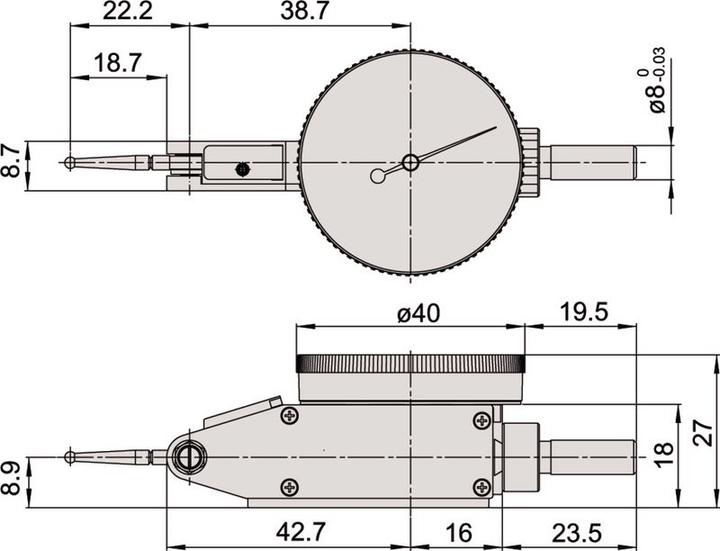

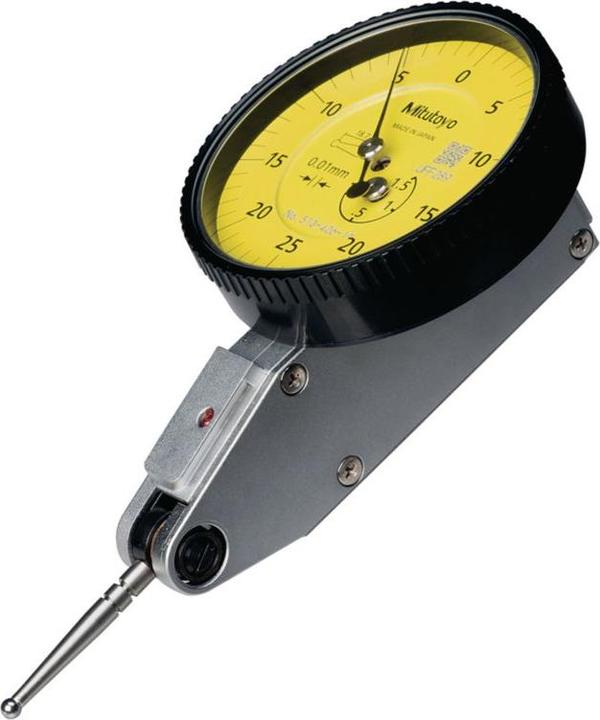

Mitutoyo lever gauge Mitutoyo standard, carbide, ±0.75 / 0.01 / Ø 40 / 18.7

Series 513 - Precision jewel bearing. Measuring in two directions by automatic switching, probe with carbide ball Ø 2 mm, swiveling and exchangeable, clamping possibility by dovetail bar, rotatable outer ring for zero setting.

Standard

Scope of delivery:
Supplied in case including measuring probe M1.7 with ball Ø 2 mm, clamping shank Ø 8 mm. Additional: with swivel clamp, holder, probe M1.7 with ball Ø 1 / Ø 3 mm, clamping shank Ø 4 mm.
