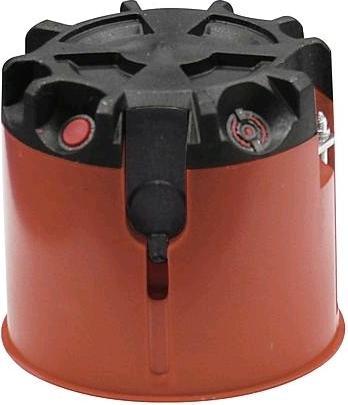

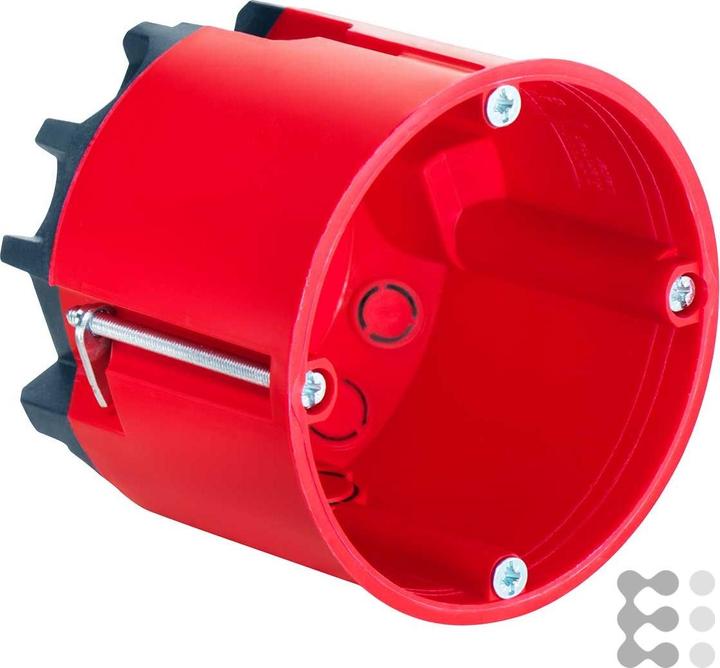

Kaiser Fire Protection Device Box 9464-02

Manufacturer: Kaiser
Designation: Fire Protection Device Box HWD68 for EI30-EI90
Type: 9464-02
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box
Version: Single
With Rotatable Ring: No
Connectable: Yes
Filling: None

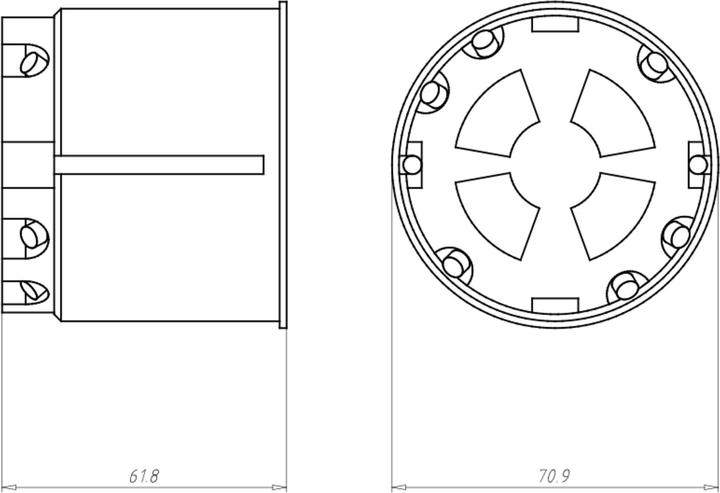

Diameter: 68 mm
Depth: 62 mm
Internal Depth: 62 mm
Suitable for Wall/Panel Thickness: 7-40 mm
For Number of Device Inserts: 1
Device Attachment: Screws
With Screws: Yes
Housing Entry through Breakout Opening: No
Housing Entry through Sealing Membrane: Yes
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
For Pipe Diameter: Other
Suitable for Cable Diameter: 4-11.5 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 6
Number of Supplied Bushings: 5
Material: Plastic
Halogen-Free: Yes
Color: Red
Protection Class (IP): IP3X
Cover Design: Without
Transparent Cover: No
Cover Attachment: Screwed
Sealability: No
Function Maintenance: None
With Shielding: No
Air Tight: Yes
Max. Conductor Cross-Section: 2.5 mm²
Clamp Position Fixed: No
Light Hook Attachment: No
Socket: Other
Special Application: Fire Protection
With Partition Wall: No

The fire protection boxes maintain the fire resistance duration in fire protection walls EI30-EI90 despite installed electrical systems and ensure a safe, smoke-tight room closure. An integrated insulating layer forms quickly and reliably seals the installation opening in the event of a fire, preventing the spread of flames and smoke gases. This efficiently ensures the saving of lives and the protection of property.
