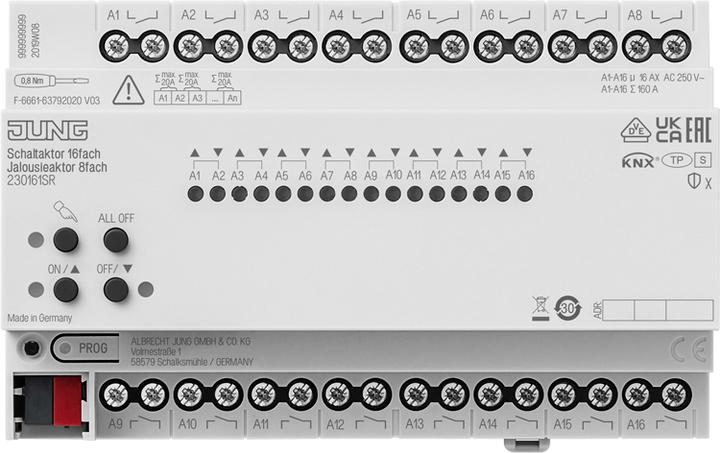

REG housing 8 T with electronic manual operation and LED status display. Project planning and commissioning with ETS5 or newer ETS product family.

Product type: Binary output mix.

Intended use: Switching electrical consumers with potential-free contacts, controlling electrically operated blinds, shutters, and awnings. Mounting on DIN rail according to DIN EN 60715 in sub-distribution.

Product features: Outputs manually operable, construction site operation. Feedback in manual operation and bus operation. Locking of individual outputs via manual or bus control.

Central functions: Cyclical monitoring, KNX Data Secure compatible from ETS 5.7.3. Updatable with ETS Service App.

Switching operation features: Normally closed or normally open operation, feedback function, logical linking, and forced control. Central switching function with collective feedback. Time functions: On and off delay, stair light switch with off warning. Scene function, operating hour counter.

Blind operation features: Suitable for AC motors 230 V. Operating modes: "Blind with slat", "Shutter", "Awning", "Ventilation flap for roof windows". Fabric position directly controllable, slat position directly controllable. Feedback on travel status, fabric position, and slat position. Cyclical feedback in travel status. Forced position through higher-level control.

Safety function: Rain alarm, frost alarm, independent wind alarms. Sun protection function with heating-cooling automation.

Adjacent outputs should only be loaded to the extent that the sum of their output currents does not exceed 20 A.
