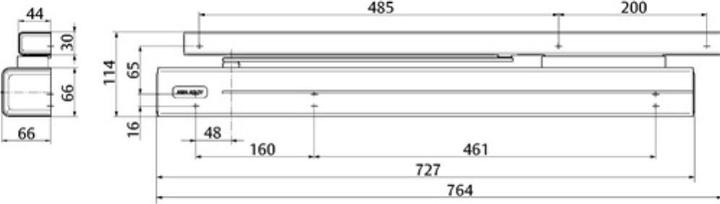

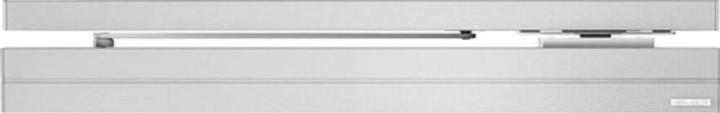

Door closer with extended mounting plate and integrated latch lock, guide rail with integrated escape door strike complete with cover for door closer and guide rail. Suitable for retrofitting to fire doors with slide rail door closer and fixing according to drilling pattern DIN EN 1154 supplement 1:2003-11 consisting of: Overhead door closer with Cam-Motion technology - tested according to DIN EN 1154 - fulfills the requirement according to DIN SPEC 1104 due to steeply falling opening torque - max. height compensation infinitely variable 14 mm - closing force infinitely variable - closing speed, latching action and opening damping infinitely variable from the front. Extended mounting plate for fire and smoke protection doors, mounting according to DIN EN 1154 supplement 1 - to accommodate Assa Abloy DC700 door closers - latch lock 807-10 mounted on mounting plate - latch exclusion adjustable: vertical + 5 mm - mounting angle latch lock adjustable: horizontal (-3 mm/+6 mm) - vertical in 4 mm steps (-4/ 0/ +4/ +8) - mounting plate complete with end caps and cover cap anodised aluminium. Extended guide rail with integrated effeff escape door strike 332 - complete with cover cap anodised aluminium - escape door strike adjustable via FaFix 2 mm - with connecting cable 4 m for connection to effeff escape door control units - system approval according to EltVTR with effeff escape door control units - rated voltage 24V DC +/- 10% - rated current 95 mA DIN left and DIN right usable - recommended door width: min. 850 mm - max. 1200 mm.
