Best Surly products in the Bike frames category
On this page you'll find a ranking of the best Surly products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Surly Ogre MTB Frame Kit, 27.5+/29", purple
The Ogre is designed as the ultimate steel utility vehicle. It is perfect for commuting, especially for those long rides home where you might stop for a few drinks along the way. Whether it's snow, sleet, or humid air, this bike is an ideal commuter vehicle year-round. You can carry so much luggage that you might not even need to go home if you don’t want to.
The frame features Gnot Boost 145 mm dropouts, allowing it to accommodate rear wheels in 12 x 142 mm or Boost 12 x 148 mm configurations. Special adapters are required for use with quick releases, which are not included.
There are mounts for racks both front and rear, as well as mounts for fenders front and rear.
Frame: 4130 Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, ED coated.
Fork: 4130 Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated.
Seatpost clamp: Surly Stainless Ø30 mm.
Headset: Cane Creek EC34 max.
Seatpost diameter: 27.2 mm.
Front hub spacing: 10 x 100 mm.
Rear hub spacing: 12 x 142 mm, 12 x 148 mm (Gnot Boost dropouts).
Brake mount: IS 2000.
Derailleur mount: High Direct Mount Top Pull (Ø31.8 mm).
Bottom bracket: BSA 73 mm.
Max tire width: 27.5 x 3.0" / 29 x 2.6" (without fenders).
Max rotor size: 203 mm front / 160 mm rear.
Max chainring size: 42 teeth single, 46/34 teeth double, 48/36/24 teeth triple, 46 teeth single Boost, 48/42 teeth double Boost.
2. Surly Grappler MTB Frame Kit, 27.5", purple

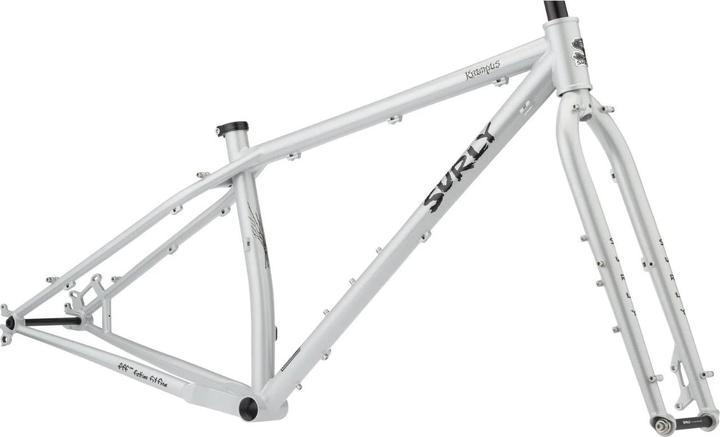

3. Surly Krampus MTB frame kit, 29+, S, first loser silver
As the first plus bike to hit the market, the Krampus has changed the way many people approach trail riding. It has shown that large-volume tires with a big diameter can significantly enhance the riding experience. Additionally, it has dispelled the myth that big tires slow you down. The Krampus is somewhat the opposite of a mullet: long in the front and short in the back. With its long top tube and compact chainstays, it elevates trail shredding capabilities to the next level. While a mullet might be business in the front and party in the back, the Krampus makes party its business.
The frame features Gnot Boost 145 mm dropouts, allowing it to accommodate rear wheels in 12 x 142 mm or Boost 12 x 148 mm. Special adapters are required for use with quick-release axles, which are not included.
Features:
- Mounts for front and rear racks
- Mounts for front and rear fenders
- Frame material: 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
- Fork material: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Head tube: ZS44/28.6 top / EC44/30 bottom, 1 1/8"
- Front hub spacing: 15 x 110 mm
- Rear hub spacing: 12 x 142 mm, 12 x 148 mm (Gnot Boost dropouts)
- Brake mount: IS2000
- Seat clamp: Ø 33.1 mm
- Seat post: Ø 30.9 mm
- Derailleur mount: High Direct Mount Top Pull (Ø 34.9 mm)
- Bottom bracket: BSA 73 mm
- Max tire width: 29 x 3.0" (without fenders)
- Max disc brake size: 203 mm
- Max chainring size: 28 teeth single, 30 teeth single Boost, 36/24 teeth double Boost
- Max travel: 120 mm.

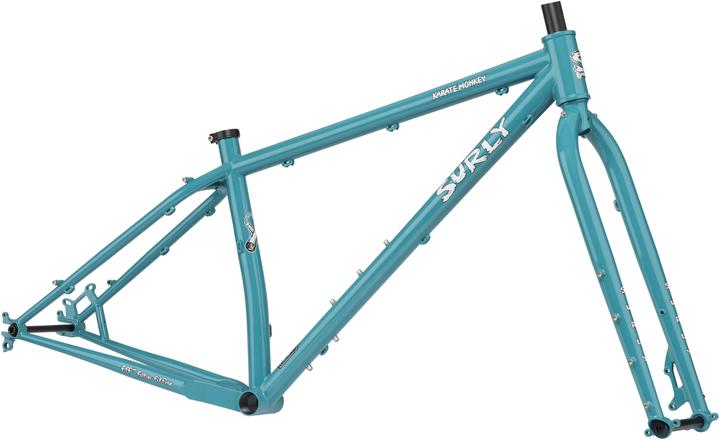

4. Surly Karate Monkey MTB Frame Kit, 27.5+/29", snow mold
5. Surly MidNight Special 27.5"/28" frame kit
6. Surly Karate Monkey MTB Frame Kit, 27.5+/29", hi-viz black
7. Surly Ogre MTB Frame Kit, 27.5+/29", purple
The Ogre is designed as the ultimate steel utility vehicle. It is perfect for commuting trips where you take the long way home and find a few drinks along the way. Whether it's snow, sleet, or humid air, this bike is an ideal commuter vehicle all year round. You can carry so much luggage that you don’t even have to go home if you don’t want to.
The frame features Gnot Boost 145 mm dropouts, allowing it to be used with rear wheels in 12 x 142 mm or Boost 12 x 148 mm. Special adapters are required for use with quick releases, which are not included.
Mounts for front and rear racks as well as for front and rear fenders are available.
Frame: 4130 Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, ED coated.
Fork: 4130 Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated.
Seatpost clamp: Surly Stainless Ø30 mm.
Headset: Cane Creek EC34 max.
Seatpost diameter: 27.2 mm.
Front hub spacing: 10 x 100 mm.
Rear hub spacing: 12 x 142 mm, 12 x 148 mm (Gnot Boost dropouts).
Brake mount: IS 2000.
Front derailleur mount: High Direct Mount Top Pull (Ø31.8 mm).
Bottom bracket: BSA 73 mm.
Max tire width: 27.5 x 3.0" / 29 x 2.6" (without fenders).
Max rotor size: 203 mm front / 160 mm rear.
Max chainring size: 42 teeth single, 46/34 teeth double, 48/36/24 teeth triple, 46 teeth single Boost, 48/42 teeth double Boost.
8. Surly MidNight Special All-Road Frame Kit, 650B/700C, 50cm, fool's gold
9. Surly Karate Monkey MTB Frame Kit, 27.5+/29", lost at sea
10. Surly Preamble All-Road frame kit, 650B, S, white
