Surly Ogre MTB Frame Kit, 27.5+/29", purple
6 pieces in stock at supplier
Product details
The Ogre is designed as the ultimate steel utility vehicle. It is perfect for commuting trips where you take the long way home and find a few drinks along the way. Whether it's snow, sleet, or humid air, this bike is an ideal commuter vehicle all year round. You can carry so much luggage that you don’t even have to go home if you don’t want to.

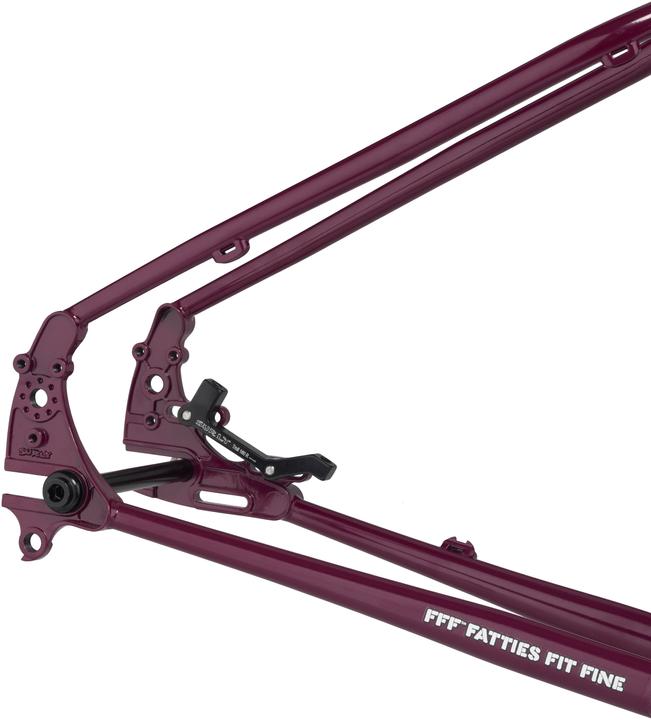

The frame features Gnot Boost 145 mm dropouts, allowing it to be used with rear wheels in 12 x 142 mm or Boost 12 x 148 mm. Special adapters are required for use with quick releases, which are not included.
Mounts for front and rear racks as well as for front and rear fenders are available.

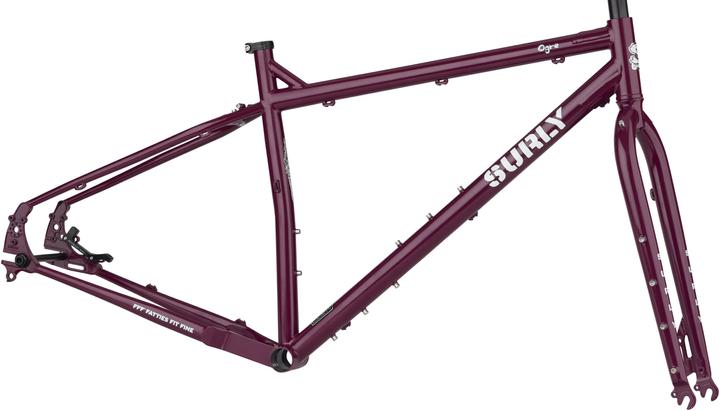

Frame: 4130 Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, ED coated.
Fork: 4130 Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated.
Seatpost clamp: Surly Stainless Ø30 mm.
Headset: Cane Creek EC34 max.
Seatpost diameter: 27.2 mm.
Front hub spacing: 10 x 100 mm.
Rear hub spacing: 12 x 142 mm, 12 x 148 mm (Gnot Boost dropouts).
Brake mount: IS 2000.
Front derailleur mount: High Direct Mount Top Pull (Ø31.8 mm).
Bottom bracket: BSA 73 mm.
Max tire width: 27.5 x 3.0" / 29 x 2.6" (without fenders).
Max rotor size: 203 mm front / 160 mm rear.
Max chainring size: 42 teeth single, 46/34 teeth double, 48/36/24 teeth triple, 46 teeth single Boost, 48/42 teeth double Boost.
Item number | 43297512 |
Manufacturer | Surly |
Category | Bike frames |
Release date | 1/3/2024 |
Sales rank in Category Bike frames | 2 of 201 |
Colour | Violet |
Exact colour description | fermented plum |
frame size | M |
Wheel size | 29" |
Installation width rear | 1704 mm |
Brake mounts | Is |
Country of origin | Taiwan |
CO₂-Emission | |
Climate contribution |
Weight | 4000 g |
Length | 116 cm |
Width | 52 cm |
Height | 21.50 cm |
Weight | 7.60 kg |
