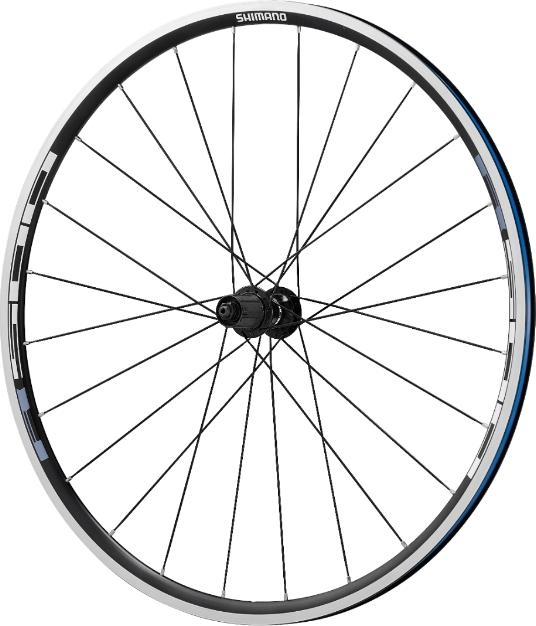

Shimano WH-R501

Rear wheel, 28"
Currently out of stock
Free shipping starting at 39,–

Product details

The WH-R501 is the perfect entry-level wheelset with proven Shimano quality. It features a stable aluminum rim with a 24 mm profile, 20 stainless steel spokes in the front, and 24 in the rear, both the rim and spokes are black. The wear indicator allows for timely replacement of the rim. Shimano also uses exclusively angular contact ball bearings in the WH-R501 wheels, which can withstand lateral forces. The asymmetric rim increases the load capacity of the rear wheel. The asymmetry of the rear rim allows for a less steep angle of the drive-side spokes and a more uniform tension of the spokes, making the wheel significantly more stable.

Key specifications

BIke wheel type
Rear wheel
Suitable tyre type
Wired-on tire
Ability brake type
Rim brake
Axle system
VR 10x130 mm
Weight
1078 g
Width
20.80 mm
jaw width
15 mm
Item number
9241028

General information

Manufacturer
Shimano
Category
Wheels
Release date
19/7/2018

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Racing bikes
Lacing
Double crossed
Wheel size
28"
Model year
2011

Wheel properties

BIke wheel type
Rear wheel
Ability brake type
Rim brake
Max. load
120 kg

Rim properties

Rim model
WH-R501-A
Material rim
Aluminium
Rim height
24 mm
Number of holes
24 x
Suitable tyre type
Wired-on tire
Width
20.80 mm
jaw width
15 mm
Valve hole diameter
6.50 mm

Hub + freewheel Features

Axle system
VR 10x130 mm
Axis standard
Quick release skewer
Installation width rear
130 mm
Diameter rear axle
10 mm
Gear rim type
Shimano / SRAM plug-in cassette
Cassette compatibility
10-speed8-speed9-speed
Freewheel
Shimano

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Shimano WH-R501 HR

Product dimensions

Weight
1078 g

Legal Notice

Product Safety

Package dimensions

Length
65 cm
Width
17 cm
Height
67 cm
Weight
1.35 kg
