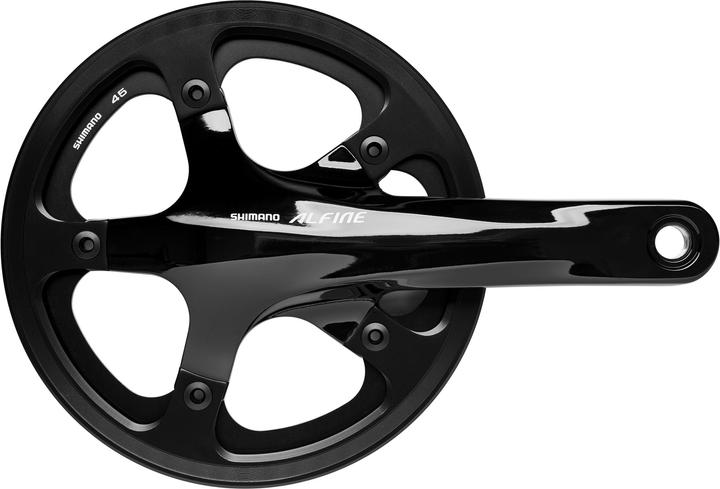

The Shimano Alfine is a top component group for sporty and elegant cycling. Premium quality, style, adaptability, and effortless operation are the hallmarks of the Shimano Alfine. The tidy appearance and wide gear range of this eight-speed hub gear system provide real momentum to the bike. The Shimano Alfine FC-S501 comes with the SM-BB4600 bottom bracket.

The two-piece design integrates the crank arm and bottom bracket, which increases stiffness and reduces weight. The axle bearings are spaced further apart, enhancing stiffness and effectively transferring the rider's power. Precision bearings ensure low maintenance and simplified assembly.

Intended use: City

Details:

• Crank arms anodized and painted, chainring anodized
• Chain guard ring (outer) made of anodized aluminum
• Diameter of the chain guard ring: 190 mm (42 teeth)
• Not compatible with chain cases

Material specifications: Aluminum

Scope of delivery:

• 1 x Shimano Alfine FC-S501 crankset (45 teeth)
• 1 x Shimano chain guard ring
• 1 x Shimano SM-BB4600 bottom bracket
• 1 x Crank

Chainrings:

• Number of chainrings: 1 chainring
• Gear ratio: 45 teeth

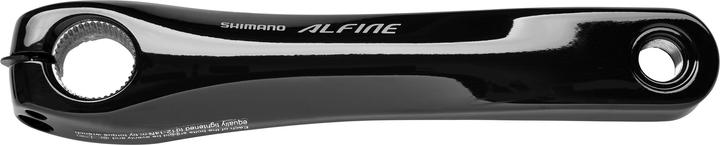

Crank:

• Compatibility with rear derailleur: 8-speed
• Design: 5-arm
• Axle interface: 24 mm
• Bolt circle diameter: 130 mm
• Bolt circle type: Standard
• Chainline: 42.8 mm
• Crank arm length: 170 mm

Chain guard:

• Chain guard ring.
