Comprehensive Clip-On Splash Guard for the Rear Wheel

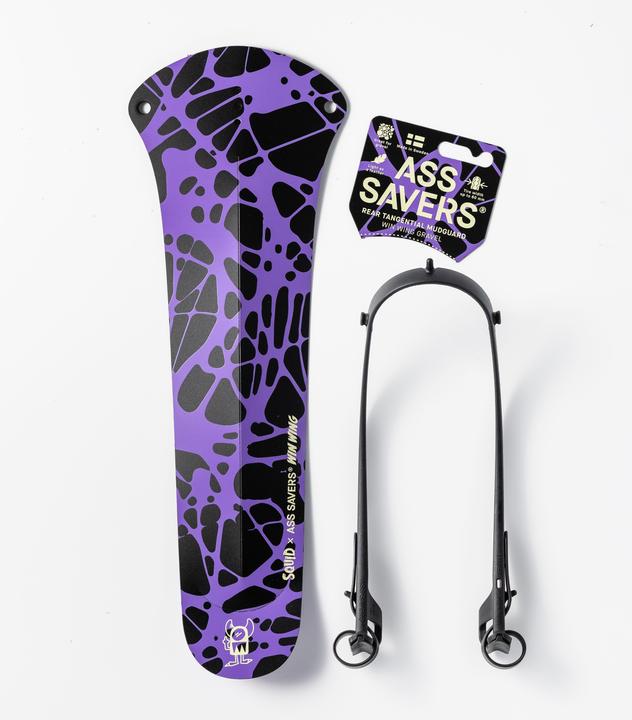

• Tool-free installation on the seat stays thanks to the wishbone mounting system
• Application area: Gravel
• Suitable for tire widths up to 60 mm
• Material: 0.9 mm polypropylene / fiberglass-reinforced polyamide
• Dimensions: 375 x 85 mm
• Weight: 72 g
• Includes protective sticker for the frame

Mount it correctly, mount it tightly

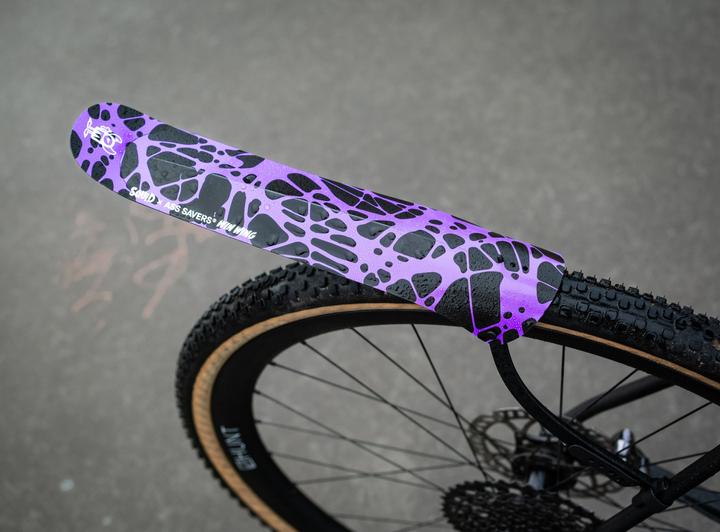

For the Tangential Coverage to work properly, the splash guard must be mounted very close to the wheel. Aim for a tire clearance of 5-10 mm to achieve maximum coverage.

The right angle

Just as important as a secure fit is the angle of the splash guard. There are three different settings to adjust the angle of your seat stays. Choose the setting that allows for a horizontal or upward position. Avoid a downward angle, as this will reduce the effectiveness of the splash guard.

Tighten securely

The straps are made from extremely durable TPU and should be tightened as firmly as you can comfortably manage by hand. If you find that the splash guard is not stable, try using the next hole in the strap.

Anti-Jam

While the Win-Wing is robust, it can bend in the event of an accident and is designed to avoid jamming when large natural debris gets caught on your wheel.

Anti-Theft

If you want to permanently attach it to your bike, the Win-Wing can be secured with a standard cable tie through a designated slot on your bike, making it easier to resist for those with sticky fingers.
