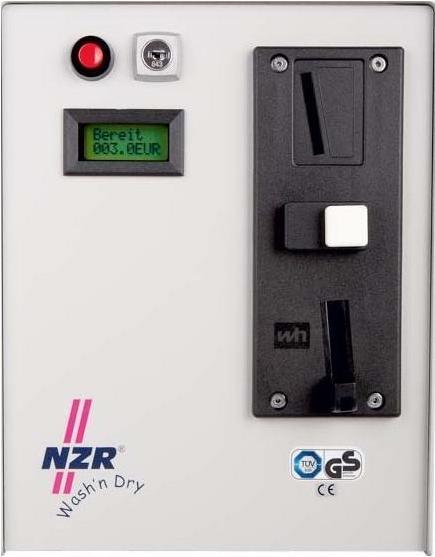

The ZMZ 0215 Wash n Dry time coin counter with NZR standard value coin insertion is adjustable by the customer. The release time and the number of coins can be set. After inserting a coin, the released time appears on the display. At the same time, the main relay is activated. The time reserve is reduced in second increments. By inserting additional coins, the time allocation is added accordingly. Due to the factory configuration with an integrated contactor, door release button, and internal counter, these devices are ideally suited for use with washing machines and tumble dryers.

The device is built with modern microprocessor technology and a high-quality precision coin validator with wire and thread blocking as well as counterfeit coin return. Coin insertion is done using NZR standard value coins. The base time can be set to a maximum time reserve of 99 hours, 59 minutes, and 59 seconds. The smallest adjustable time unit is 1 second. The device accepts an unlimited number of coins until the maximum time reserve is reached. Simple time setting is facilitated by a logical menu navigation.

A 2-line LC display shows the remaining time, coin pre-selection, and coin type. The coin container has a capacity of 80 pieces at 0.50 euros each. Connection is made easily through a 5-pin plug connection. The powder-coated stainless steel housing (RAL 7035 light gray) is equipped with a cylinder safety lock. There are two 6-digit internal coin counters, one of which is non-resettable for billing control. The door release occurs with a one-time delay of 1 minute at the push of a button.

The contactor is designed for a 3-phase shutdown with 3 x 20 A. The power supply is 1 x 230 V, and the power consumption is 4 watts. The switching current is 3 x 20 A (AC1), and the output relay has 3 normally open contacts. The weight is 3.0 kg, and the dimensions are 185 x 238 x 150 mm.
