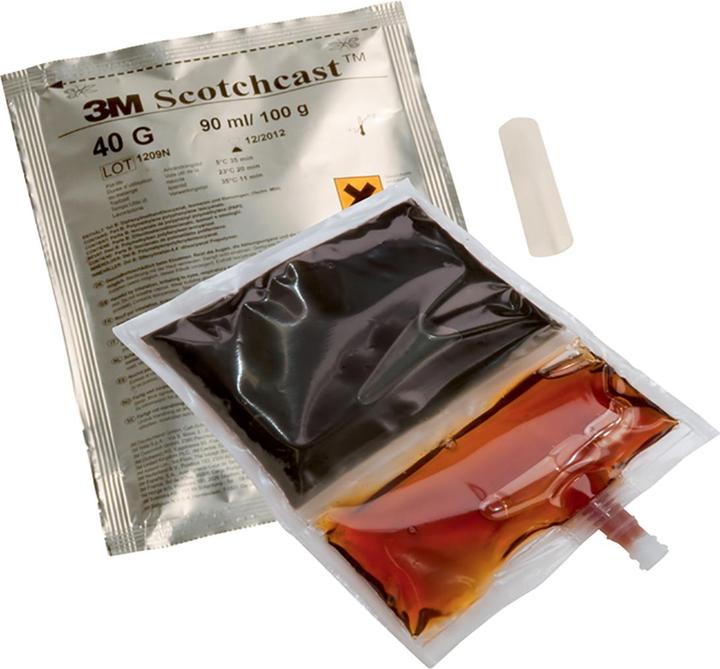

The 40 resin complies with EU Directive 2002/95/EC (RoHS) and EU Regulation 1907/2007/EC (REACH). 3M Scotchcast Electrical Resin 40 is designed for electrical insulation and mechanical protection of electrical cable connections. Resin 40 is an unfilled two-component polyurethane that cures at room temperature. Once cured, the resin is impact-resistant and durable against moisture and atmospheric corrosion. Scotchcast 40 is classified as a water-curing low-voltage insulation according to Cenelec standard HD 631.1 S2.

Features:

• Good adhesion to metal and various plastics
• Hydrophobic behavior during curing
• Excellent hydrolytic stability
• Available with a closed feed system for mixing and pouring
• Low exothermic reaction temperature

Application:
Mechanical protection and electrical insulation of low-voltage electrical connections for indoor and outdoor use, in the ground, and underwater applications.

Storage:
Resin 40 has a shelf life of at least 36 months when stored between 10 °C and 40 °C. Each product is labeled with an expiration date.
