Best selling Thermal pads from Gelid
This page always stays fresh and updates automatically.
1. Gelid TP-GP01-S-E
The GP-Extreme 120×120 is designed to ensure perfect heat transfer to the heat sink when installed on circuit boards with height differences and uneven surfaces, such as microcontroller units, memory ICs, analog ICs, MOSFETs, and other SMD components. Thanks to its softness and excellent thermal conductivity, the GP-Extreme optimally fills gaps and provides the best performance in its class. The GP-Extreme is electrically non-conductive, non-corrosive, non-hardening, and non-toxic. It allows for easy application, and the dimensions of the thermal pad, measuring 120×120 mm, are ideally suited for extra-large circuit board surfaces of GPUs, laptops, gaming consoles, and other densely packed devices.
2. Gelid TP-GP04-S-E
The GP-Ultimate 120x120 is designed to provide a perfect thermal interface for transferring heat to heat sinks when installed on circuit boards with height differences and uneven surfaces, such as DRAM ICs, VRM ICs, power MOSFETs, NVRAM ICs, and other high-temperature SMD components. With its enhanced multilayer matrix, superior material composition, and ultimate thermal conductivity of 15 W/mK, the GP-Ultimate 120x120 delivers the best performance in its class.
The GP-Ultimate 120x120 is non-electrically conductive, non-corrosive, non-hardening, non-toxic, and supports an extended operating temperature range of -60 °C to 220 °C. It features seamless application and has a thermal pad size of 120 x 120 mm to optimally fit enlarged surfaces of RAM memory modules, GPU and CPU VRM circuits, M.2 SSD types, and other densely packed electronic devices.
3. Gelid TP-VP04-R-C
The GP-Ultimate 120×20 is designed to provide a perfect thermal interface to transfer heat to heatsinks when installed on PCBs with height differences and uneven surfaces such as DRAM ICs, VRM ICs, power MOSFETs, NVRAM ICs, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and the ultimate 15W/mK thermal conductivity, the GP-Ultimate 120×20 offers the best performance in its class.
The GP-Ultimate 120×20 is non-electrically conductive, non-corrosive, non-curing, non-toxic, and supports an extended operating temperature range of -60°C to 220°C. It features seamless application and has thermal pad dimensions of 120x20mm to best fit enlarged surfaces of RAM memory modules, GPU and CPU VRM circuits, M.2 Type SSD, and other densely packed electronic devices.
4. Gelid TP-GP04-A
The GP-Ultimate is designed to provide perfect thermal contact to heat sinks when installed on circuit boards with height differences and uneven surfaces, such as in power MOSFETs, chipsets, analog ICs, microcontroller units, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and ultimate thermal conductivity, the GP-Ultimate optimally fills gaps and delivers the best performance in its class.
The GP-Ultimate is non-electrically conductive, non-corrosive, non-hardening, non-toxic, and supports an extended operating temperature range of -60 °C to 220 °C. It features easy application and has a thermal pad size of 90x50 mm to fit optimally on large PCB surfaces of GPU cards, motherboards, expansion cards, and other densely packed electronic devices.
5. Gelid TP-GP01-C Heat conducting pad 1.5 mm 12 W/mK L x W 80 40
The GP-Extreme is designed to provide perfect thermal contact with heat sinks when installed on circuit boards with height differences and uneven surfaces, such as microcontroller units, memory ICs, analog ICs, MOSFETs, and other SMD components. Thanks to its softness and excellent thermal conductivity, the GP-Extreme optimally fills gaps and delivers the best performance in its class. The GP-Extreme is non-electrically conductive, non-corrosive, non-hardening, and non-toxic. It ensures easy application, and the dimensions of the thermal pad, measuring 80 x 40 mm, are ideally suited for large circuit board surfaces of VGA cards, laptops, gaming consoles, and other densely packed devices.
6. Gelid TP-GP04-D
The GP-Ultimate is designed to provide perfect thermal contact with heat sinks when installed on circuit boards with height differences and uneven surfaces, such as power MOSFETs, chipsets, analog ICs, microcontroller units, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and ultimate thermal conductivity, the GP-Ultimate optimally fills gaps and delivers the best performance in its class.
The GP-Ultimate is non-electrically conductive, non-corrosive, non-hardening, non-toxic, and supports an extended operating temperature range of -60 °C to 220 °C. It features easy application and has dimensions of thermal pads measuring 90 x 50 mm, making it ideal for large circuit board surfaces of GPU cards, motherboards, expansion cards, and other densely packed electronic devices.
7. Gelid GP-Extreme - 12 W/m-K - Gray - 80 mm - 40 mm - 0.5 mm
The GP-Extreme is designed to provide perfect thermal contact with heat sinks when installed on circuit boards with height differences and uneven surfaces, such as microcontroller units, memory ICs, analog ICs, and other SMD components. Thanks to its softness and excellent thermal conductivity, the GP-Extreme optimally fills gaps and delivers the best performance in its class. The GP-Extreme is electrically non-conductive, non-corrosive, non-hardening, and non-toxic. It ensures easy application, and the dimensions of the thermal pad, measuring 80×40 mm, are ideally suited for large circuit board areas of VGA cards, high-speed HDDs, and other densely packed devices.
Thermal pads
Quantity discount
EUR12,24 per piece for 2 units
Gelid GP-Extreme - 12 W/m-K - Gray - 80 mm - 40 mm - 0.5 mm
0.50 mm, 12 W/m K
8. Gelid Solutions TP-GP04-R-A Thermal Paste Thermal Pads
Thermal pads are used wherever flexible material with very high thermal conductivity is required, such as in connectors, RAM water blocks, power components, and high-temperature SMD components. The new multilayer design is perfect for cooling irregularly shaped and differently positioned components. It allows for filling gaps from small scratches to visible uneven surfaces. Due to its excellent thermal conductivity, the pads can also be used for large-area components such as motherboard bridges, hard drives, and densely packed components on graphics card boards. Before use, remove the protective film from both sides of the thermal pad. As with other products in the Gelid GC-Ultimate series, the above-average thermal conductivity of up to 15 W/mK stands out.
Main features:
- High thermal conductivity of 15 W/mK – leading in its class
- Easy application
- Made from the highest quality components
- Non-conductive
- Non-corrosive, non-hardened, non-toxic
Specification:
- Dimensions: 120 x 20 x 0.5 mm
- Thermal conductivity: 15 W/mK
- Density: 3.2 g/cm³
- Hardness (Shore): 60–70 OO
- Operating temperature: -60 °C to 220 °C
- Non-conductive
It is not recommended to use a thermal pad that is compressed to more than half of its nominal thickness.
Thermal pads
Quantity discount
EUR11,18 per piece for 2 units
Gelid Solutions TP-GP04-R-A Thermal Paste Thermal Pads
9. Gelid TP-VP04-D
The GP-Ultimate is designed to provide perfect thermal contact to heatsinks when installed on PCBs with height differences and uneven surfaces such as power MOSFETs, chipsets, analog ICs, micro-controller units, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and ultimate thermal conductivity, the GP-Ultimate fills spaces properly and offers the best performance in its class.
The GP-Ultimate is non-electrically conductive, non-corrosive, non-curing, non-toxic, and supports an extended operating temperature range of -60°C to 220°C. It features easy application and has thermal pad dimensions of 90x50mm to best fit large PCB surfaces of GPU cards, motherboards, add-on cards, and any other densely packed electronic device.

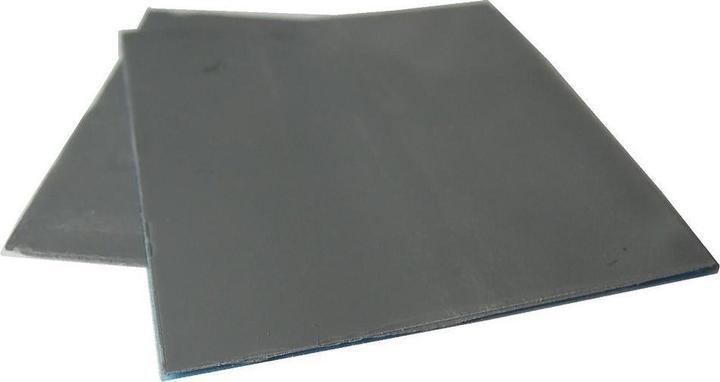

10. Gelid GP-Extreme - 12 W/m-K - Gray - 80 mm - 40 mm - 1 mm
Ultimate thermal conductivity
Non-electrically conductive
Non-corrosive, non-hardening, and non-toxic
The GP-Extreme is designed to provide perfect thermal contact to heat sinks when installed on circuit boards with height differences and uneven surfaces, such as microcontroller units, memory ICs, analog ICs, and other SMD components. Thanks to its softness and ultimate thermal conductivity, the GP-Extreme optimally fills gaps and delivers the best performance in its class. It ensures easy application, and the dimensions of the thermal pad, measuring 80×40 mm, are ideally suited for large circuit board surfaces of VGA cards, high-speed HDDs, and other densely packed devices.
Thermal pads
Quantity discount
EUR13,43 per piece for 2 units
Gelid GP-Extreme - 12 W/m-K - Gray - 80 mm - 40 mm - 1 mm
