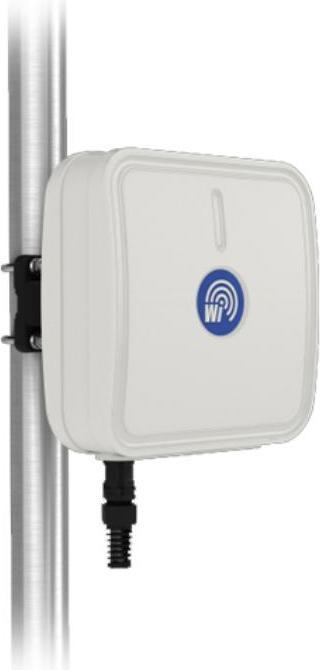

Wireless Instruments WiBOX SA MDB255-90-14X - 2.5 and 5 GHz Dual Band Antenna

The WiBOX SA MDB255-90-14X is a dual band MIMO 2x2 sector antenna operating at two frequency bands: 2.35 - 2.65 GHz with 12 dBi gain and 5.1 - 5.85 GHz with 14 dBi gain. This antenna is suitable for point-to-multipoint (PtMP) topologies, covering medium-sized areas such as hotspots in schools, halls, stadiums, or other public places. It can be installed both indoors and outdoors (IP 67) and is compatible with WLAN (802.11a/b/g/n/ac), WiMAX, LTE, Bluetooth, ISM, and RFiD systems. The antenna is integrated into the high-quality WiBOX Medium box system.

Features:

• Gain for the frequency of 2350 - 2650 MHz: 2x 12 dBi
• Gain for the frequency of 5100 - 5850 MHz: 2x 14 dBi
• X polarization
• 4x SMA female connectors
• Large, ergonomic WiBOX Medium enclosure for radio equipment installation
• Outdoor waterproof enclosure
• Designed to withstand various weather conditions
• RJ45 waterproof system
• Grounding system protecting against lightning: DC ground

Systems:

• WLAN: 2.4 GHz, 5 GHz
• WiMAX: 2.3 GHz, 2.5 GHz, 5 GHz
• LTE band: 7, 38, 40, 41
• Bluetooth: 2400 - 2483 MHz
• ISM: 2400 - 2483 MHz, 5725 - 5875 MHz
• RFiD: 2400 - 2483 MHz, 5725 - 5875 MHz

Applications:

• System integration
• Point-to-multipoint connections
• Hotspot

Electrical Specifications:

• Frequency: 2.35 - 2.65 GHz, 5.1 - 5.85 GHz
• Gain: 12 dBi, 14 dBi
• VSWR:
• Beamwidth: 30°/90°, 16°/90°
• Polarization: X
• Separation between connectors
• Impedance: 50
• Max. input power: 50 W
• Lightning protection: No
• DC ground: Yes

Mechanical Specifications:

• Dimensions: 27.2 x 27.6 x 9.6 cm
• Weight: 2.5 kg
• Connector: RJ45
• Material: ABS
• Waterproof level: IP67
• Operating temperature: from -40°C to 80°C

Mounting Kit:

• Dimensions: 9.9 x 10.5 x 14.8 cm
• Regulation range: +/- 30°
• Weight: 0.87 kg
• Mast dimensions range: 250 - 650 mm
• Material: Polyamide with fiberglass + galvanized steel.
