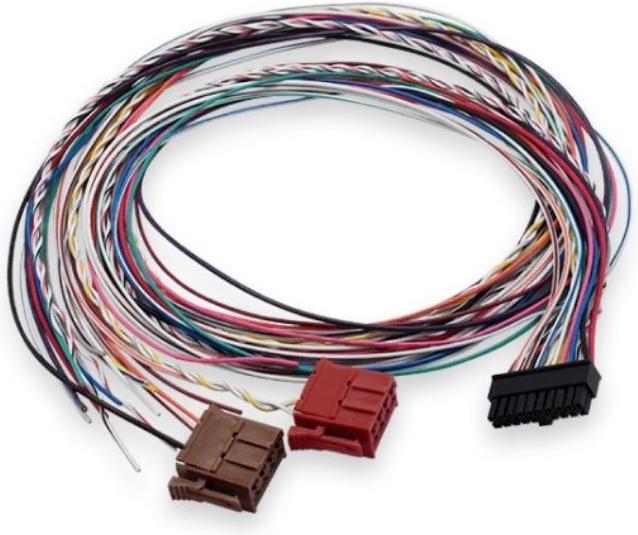

PPCB00000300 - Tachograph Cable

This tachograph cable is a special cable designed for easy tachograph connection. It features two sockets for plug-and-play connectivity - K-Line (D-connector) and TachoCAN (C-connector) - along with a pre-prepared pair of twisted wires for an additional CAN connection.

There are two versions of the tachograph cable:

• Complete tachograph cable with all 20 wires for a variety of use cases, depending on customer needs.

• Simplified tachograph cable with only the wires needed for Remote Data Download (RDD) and the FMS solution - VCC(+), GND(-), DIN1, CAN1 Low and High, CAN2 Low and High, and K-Line. There is no need to hide or cut additional wires.

The tachograph cable allows you easy access to the following data:

• Downloading tachograph files remotely.

• Retrieving CAN data from heavy vehicles via the FMS J1939 standard.

• Receiving live vehicle data from the tachograph through K-Line.

The cable can be used with the devices FMB640, FMC640, FMM640, FM6300, and FMB630.
