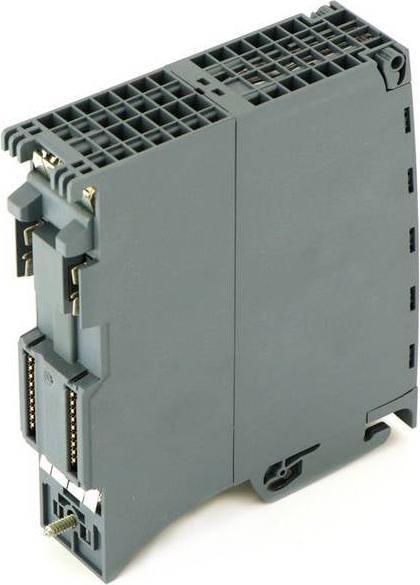

Siemens Digital Input Module F-Digital Input Module 6ES7526-1BH00-0AB0

Manufacturer: Siemens Digital Input Module
Designation: F-Digital Input Module F-DI 16x24VDC
Type: 6ES7526-1BH00-0AB0
Supply Voltage (DC): 19.2..28.8 V
Type of Supply Voltage: DC
Number of Digital Inputs: 16
Configurable Digital Inputs: yes
Input Current at Signal 1: 3.7 mA
Permissible Voltage at Input: -30..30 V
Type of Input Voltage: DC
Type of Digital Output: none
Redundancy Capability: no
Delay Time on Signal Change: 0.4..20 ms
Suitable for Safety Functions: yes
SIL according to IEC 61508: 3
Performance Level according to EN ISO 13849-1: Level e
Associated Operating Equipment (Ex ia): no
Associated Operating Equipment (Ex ib): no
Explosion Protection Category for Gas: ATEX Gas-Ex Protection, Cat. 3G
Explosion Protection Category for Dust: none
Width: 35 mm
Height: 147 mm
Depth: 129 mm

Further Details:
SIMATIC S7-1500, F-Digital Input Module, F-DI 16x 24VDC PROFIsafe, 35mm design size, up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508)
SIMATIC ET 200MP is a modular, scalable, and universally applicable peripheral system in IP20 and offers the same system advantages as the S7-1500. It allows for the shortest bus cycle times and fastest response times even with large quantity structures. The decentralized peripheral system is particularly easy to assemble, wire, and commission. The scalable design allows you to tailor the peripheral station exactly to the specific needs on-site. The scalable configuration of an ET 200MP station is ensured by a comprehensive range of signal modules. Numerous digital and analog input and output modules are available, including fail-safe versions. This guarantees the universal applicability of the system.
EAN: 4047623405955.
