Area: TeSys GC
Series: GC25
Number of poles: 2
Coil voltage: 240 Vac
Rated contact current: 25 A
Rated contact voltage: 250 Vac
Contact configuration: 2 normally open contacts
Number of auxiliary contacts: 1
Connection type: Wire connection
Length: 81 mm
Maximum operating temperature: +50 °C

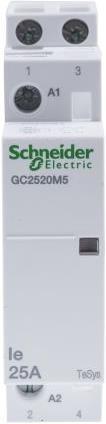

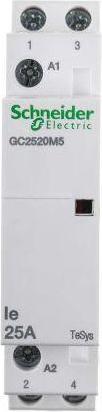

Modular contactors from Schneider Electric TeSys GC. The TeSys GC modular contactors can switch single-phase, three-phase, or four-phase loads. The contactors in the TeSys GC series are safe, easy to use, and simple to install. These devices, with their compact dimensions, are suitable for a wide range of applications.

Features and benefits:

• Integrated auxiliary contacts for additional switching capacity
• Screw connections: Terminals with finger protection according to IP20, featuring both North American and international terminal markings
• Panel mountable with screws or DIN rail mounting
• Impulse relay function
• Day/Night function
• Insulation Class 2: continuous safety for operators and third parties

The utilization categories AC1 and AC3 for TeSys contactors define the power generation and disconnection values based on the type of load to be controlled and the operating cycle conditions.

• AC-1: Applies to all AC devices with a power factor of at least 0.95. Example application: resistive load, heating, distribution.
• AC-3: Applies to squirrel cage motors that are braked during motor operation. Example applications: all squirrel cage motors, elevators, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning systems.

The contactors in the TeSys GC series use a linear translational movement that provides double pole separation.
