AXRL - QuMax XR LTE for RUT240/950/955/X09/X11

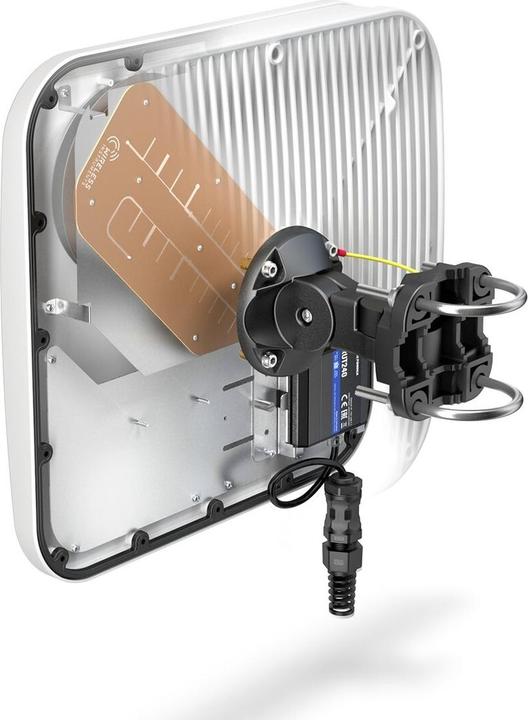

QuMax eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with a long distance to the base station. It is designed to have a Teltonika RUT240/950/955/X09/X11 router installed inside an IP67 enclosure. It is the first choice for fixed installations in industrial environments. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.

LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

• Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7 dBi

• Front-to-back: > 10 dB

• VSWR: < 1.70, max. < 2.00

• Beamwidth: 70°/70° +/-15°

• Polarization: Dual polarized X-pol

• Impedance: 50 ohms

Mechanical Specifications

• Materials: ABS, aluminum, PTFE, fiberglass

• Connector type: RJ45

• Ingress protection: IP67

• Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)

• Weight: 3.7 kg (8.16 lbs)

• Operating temperature: From -40°C to 75°C (from -40°F to 167°F).
