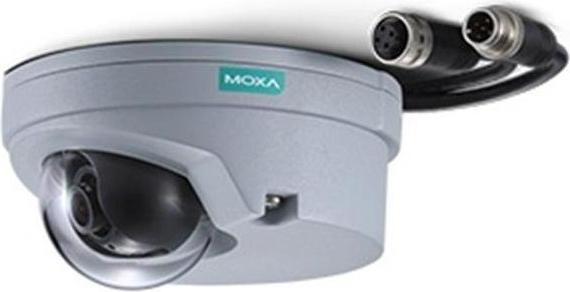

Moxa VPORT P06HC-1V36M - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 3.6 mm lens, -40 to
Power supply2
Product details
Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a range of applications.
EN 50155, HD image, cubic IP camera with M12 connection, PoE, 3.6 mm lens, -40 to 55°C operating temperature.
Ethernet interface:
- PoE connections (10/100BaseT(X), M12 D-coded 4-pin socket)
Ethernet software features:
- Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security functions:
- Password protection at user level
- IP address filter
- HTTPS encryption
Performance parameters:
- Number of power inputs: 1
- Input power source: PoE (IEEE 802.3af)
- Input current: 0.17 A @ 48 VDC
Camera features:
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=3.6 mm, F1.6, diagonal 99°, horizontal 94°, vertical 47°
- Minimum illumination color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto (1/30 to 1/25000 sec)
- Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Integrated DNR
- WDR (wide dynamic range): 110 dB
- Flicker-free control: Automatic, 50 Hz and 60 Hz modes
- Image rotation: Flip, mirroring and 180° rotation
- Image adjustment: Manual adjustment with saturation, sharpness and contrast
- AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
- BLC (backlight compensation): High/Medium/Low
Video interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output via Ethernet
- Video streams: 3 independent H.264 or MJPEG video streams
- Video viewing: DynaStream™ support for automatically changing the video frame rate, CBR Pro™ for good image quality in transmissions with limited bandwidth, 3 areas for data protection masks, adjustable image size and quality, time stamp.
Lens type | Prime lens, Wide angle lens |
Network interface | PoE |
Power supply | Electrical connection, PoE |
Item number | 46338956 |
Manufacturer | Moxa |
Category | Network camera |
Manufacturer no. | VPORT P06HC-1V36M |
Release date | 7/6/2024 |
Set size | Single camera |
Camera resolution | 1 Mpx |
Viewing angle (H) | 94° |
Viewing angle (V) | 47° |
Viewing angle (D) | 99° |
Lens type | Prime lens, Wide angle lens |
Focal length | 3.6 mm |
Aperture | f/1.6 |
Image sensor type | CMOS |
Refresh rate | 30 FPS |
Video file formats | H.264, MJPEG |
Connection A | M12 |
Network interface | PoE |
Max. port speed | 100 Mbit/s |
Smart home | Compatible |
Application range | Network |
Power supply | Electrical connection, PoE |
PoE Standard | 802.3af (PoE) |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Number of cameras | 1x |
Scope of delivery | IP cameras, Network camera |
