MikroTik MTAS-5G-15D120 - mANT Sector Antenna

The new mANT sector antennas are the perfect companions for the BaseBox, NetBox, NetMetal, or any other outdoor Wi-Fi device.

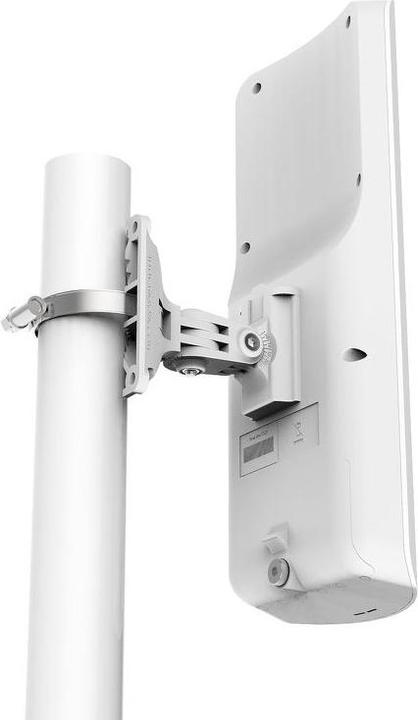

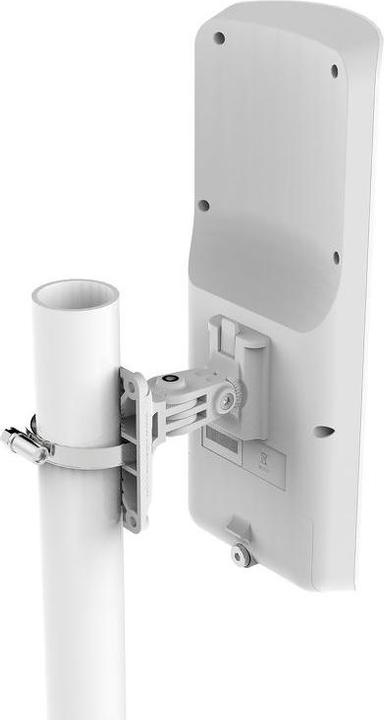

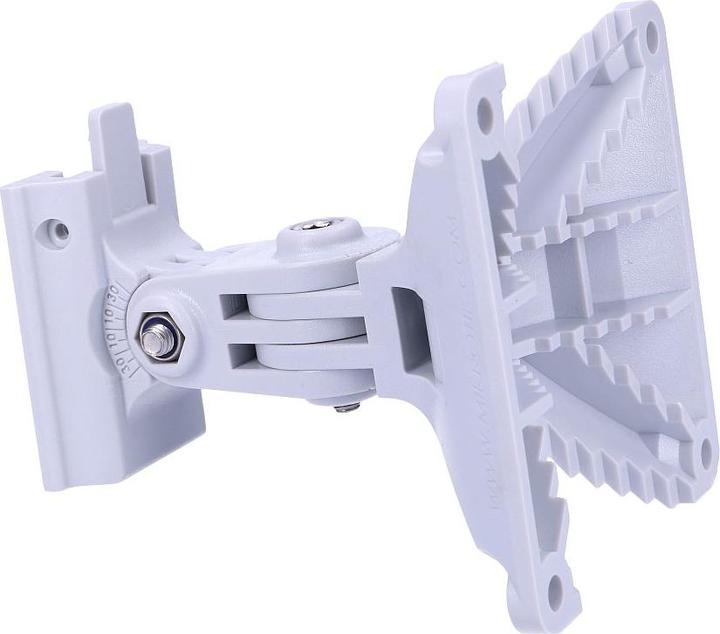

The mANT is a dual-polarized antenna with a gain of 15 dBi and two RP-SMA connectors. It is compatible with the SXT mount, allowing you to use it with the durable QuickMount systems. It comes equipped with the quickMOUNT PRO.

The antenna is available in two sizes, specifically as a 15 dBi and a 19 dBi model. Both antennas have a beamwidth of 120 degrees.

Product Specifications

• Product Code: MTAS-5G-15D120

• Antenna Gain in dBi: 15

• Frequency Range: 5.17 - 5.825 GHz

• Polarization: Vertical and Horizontal

• Beamwidth: 120 degrees (Azimuth), 10 degrees (Elevation)

• VSWR: 1.43 typ.; 1.8 max.

• Port-to-Port Isolation: >40 dB min.

• Front-to-Back Ratio: >30 dB

• Cross Polarization: >30 dB

• Diameter x Depth: 140 x 348 x 82 mm

• Weight: 734 g

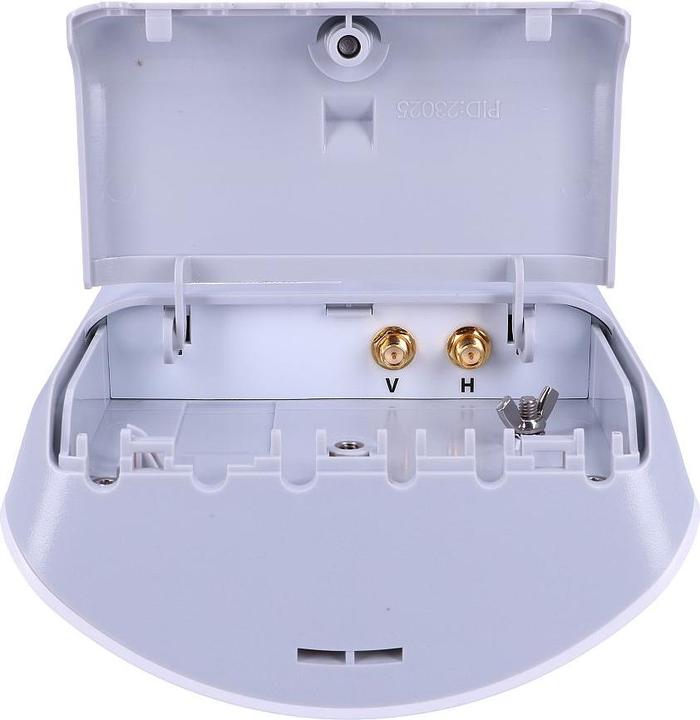

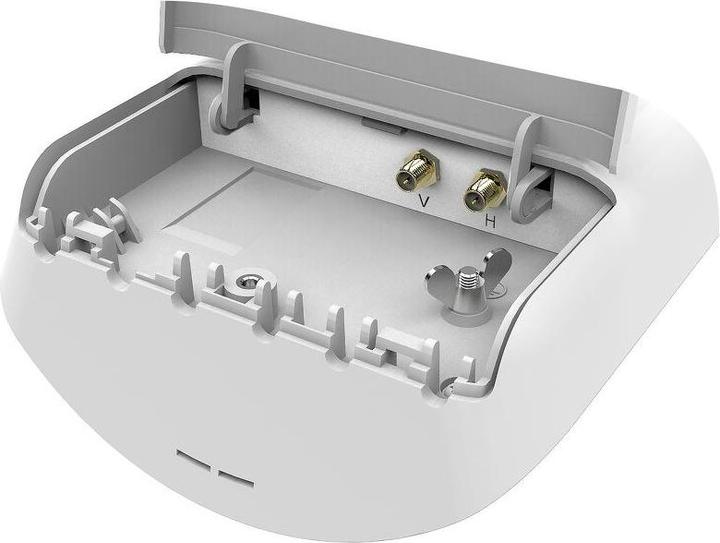

• Connectors: two RP-SMA.
