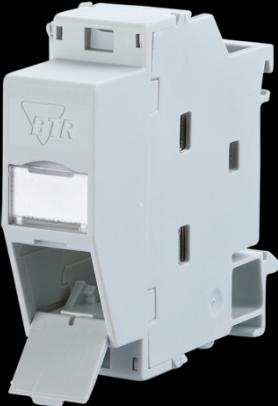

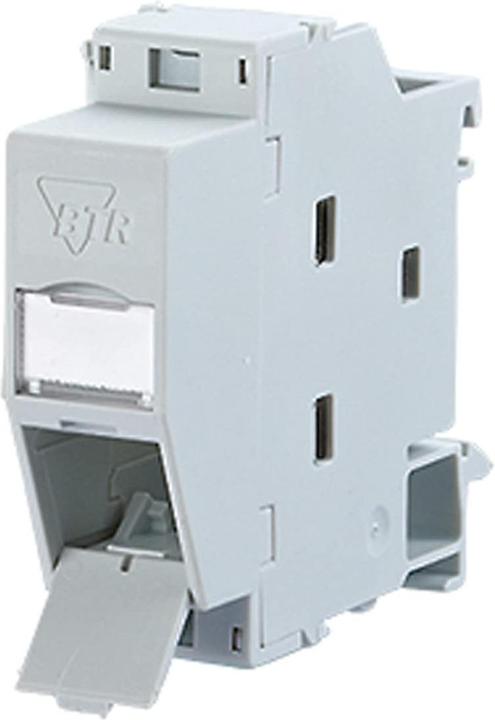

Metz Connect REGplus IP20 Module 1309427103-E
Manufacturer: Metz Connect
Description: REGplus IP20 Module unpopulated
Type: 1309427103-E
Mounting type: DIN rail TH35
Design of the rail adapter: straight
Material: Metal

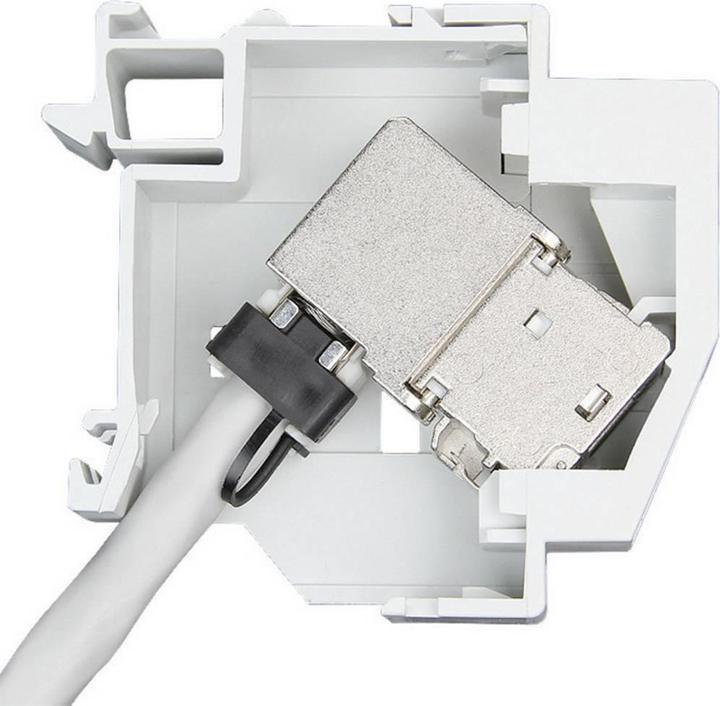

The REGplus IP20 Module 1309427103-E is an unpopulated connection unit designed for mounting on a TH35 DIN rail according to DIN EN 60715, suitable for a single module in modular design. The cable entry is variable and can be accessed at a 45° angle from above or below, with a plug orientation that is tilted 45° downwards. The width of 1TE allows for the installation of up to 12 REGs in a standard electrical distribution board. When installed as a device of protection class I, the potential equalization is achieved via an integrated potential equalization plate directly over the rail. The rail must be integrated into the building's potential equalization through appropriate measures. The device is protected from direct contact by a cover. When mounted in protective insulated enclosures, protection class II is maintained if the potential equalization plate is removed.

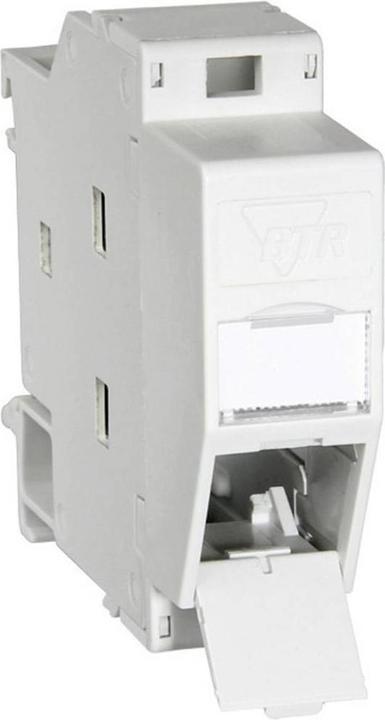

The module features an integrated dust protection flap (also available in color).

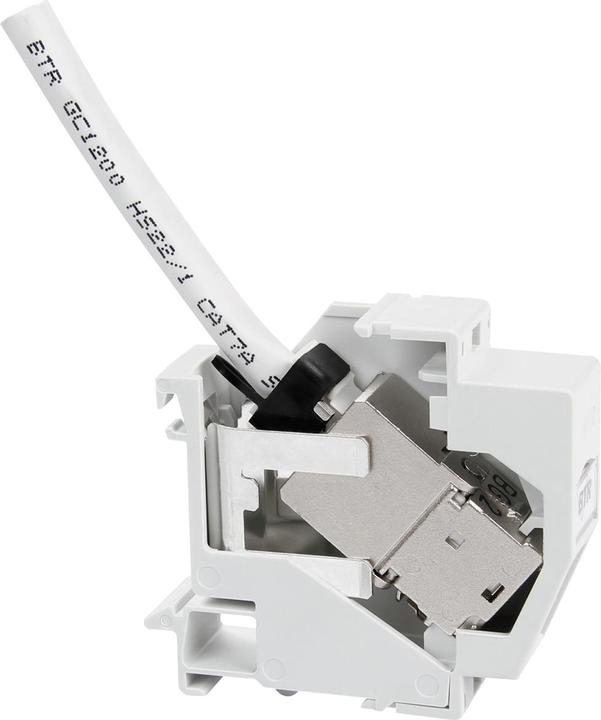

Suitable modules for cable entry at 45° from above: C6, Amodul 180°, E-DAT module 8(8), E-DAT module coupling 180°, UAE module Cat.5e and Cat.6, OpDAT module LC-D and ST, Coax modules, and E2000 DC couplings.

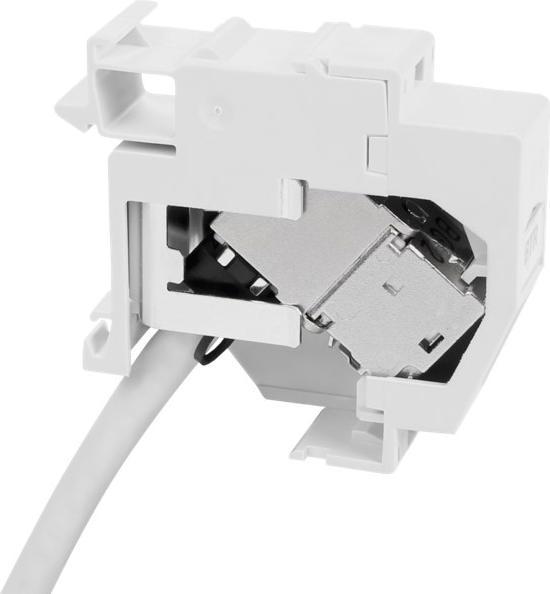

Suitable modules for cable entry at 45° from below: C6, Amodul 270°, and E-DAT module coupling 90°.
Not suitable for modules in Keystone design and C6, Amodul 90°.
EAN: 4250184136538.
