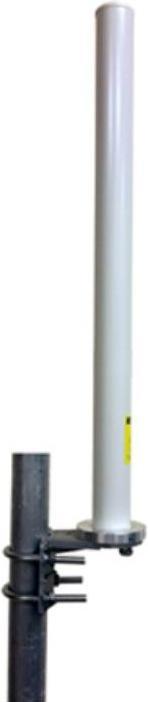

MA-WO-UWB - 1200-6000 MHz Ultra Wide Band Omni-Directional Antenna

The MARS MA-WO-UMB is an ultra wide band omni-directional antenna covering bands from 1200 MHz up to 6 GHz in a single antenna radome. It provides perfect matching in all bands with a small ground plane and excellent omni-directional coverage with some up-tilt beam elevation. The antenna is PIM certified, making it suitable for all multi-carrier systems.

Supported applications include TETRA, TV White-Space, LoRa, LTE, GSM, UMTS, WiFi, WLAN, IoT, and more.

Electrical Specifications:

• Frequency range: 1200-2700 MHz; 3300-3800 MHz; 4100-6000 MHz
• Gain, typical: 8 dBi; 10 dBi; 11 dBi
• VSWR, typical: 1.3:1 (2.0:1 max.); 1.3:1 (1.7:1 max.); 1.5:1 (2.0:1 max.)
• VSWR, max.: 2.0:1; 1.7:1; 2.0:1
• Polarization: Linear, vertical
• Input power, max.: 50 Watts
• Input impedance: 50 Ohm
• PIM, 3rd order, 2x 20 W: Patterns: Omni-directional
• Optimum ground plane size: Not required

Mechanical Specifications:

• Dimensions (DxH): 40 mm diameter (base diameter 72 mm) x 540 mm height; 1.57" diameter (base diameter 2.8") x 21" height
• Weight: 350 g
• Connector: N-type, female
• Radome: UV protected plastic
• Mount: 2" pole mount

Environmental Specifications:

• Operating temperature range: -40°C to +70°C
• Wind load: 200 km/h (survival)
• Vibration: According to IEC 60721-3-4
• Flammability: UL94
• Water proofing: IP-65
• Salt fog: According to IEC 68-2-11.
