HMS Gateway LAN, Modbus, RS-232, RS-485 Anybus AB7702 12 V/DC, 24 V/DC

Price in EUR including VAT
Ratings
BrandMore from HMS
Delivered between Fri, 11/7 and Wed, 16/7
More than 10 pieces in stock at supplier
free shipping

Product details

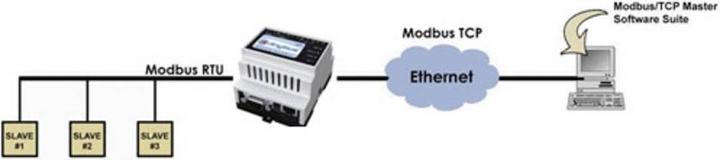

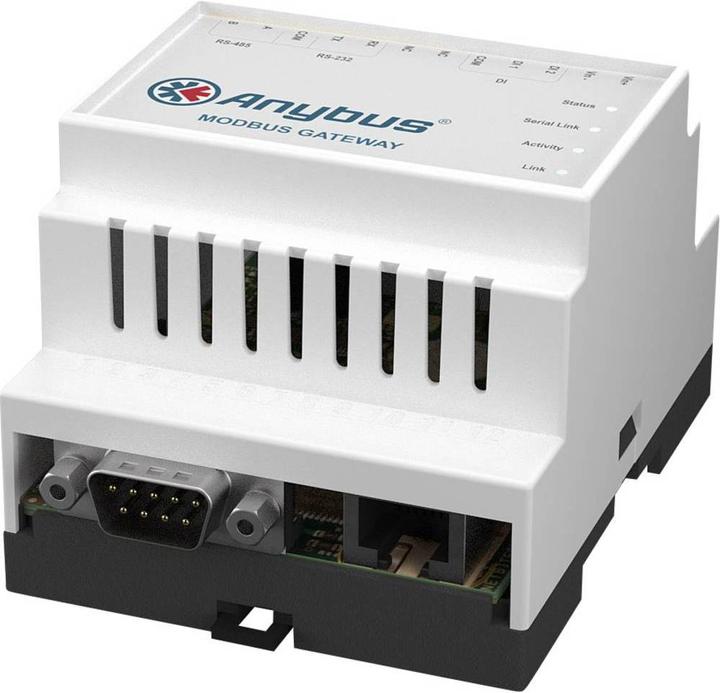

Description Gateway: Modbus-RTU / Modbus-TCP. Transparent data exchange between a Modbus-TCP client (Master) and Modbus-RTU slaves. Acts as a server (Slave) on the Modbus-TCP side. Supports 10/100 Mbit Ethernet (Modbus-TCP). On the Modbus-RTU side, it supports RS-232 and RS-485. Easy configuration (Node Address, IP address, etc.). This Modbus gateway implements a server (Slave) on the Modbus-TCP side. The gateway transparently forwards Modbus-TCP telegrams to the Modbus-RTU slaves connected to it. Requests from a Modbus-TCP client (Master) to the slaves in the Modbus-RTU network are converted by the gateway to Modbus-RTU. Conversely, response telegrams from the Modbus-RTU slaves are also transparently passed through by the gateway for the Modbus-TCP client. Thus, this Modbus gateway allows Modbus-TCP clients to communicate with one or more Modbus-RTU slaves. The physical connection of the Modbus gateway to Modbus-RTU is made via a 9-pin D-sub connector for RS-232 and an RJ12 connector for RS-485. The connection to the Ethernet side (Modbus-TCP) is done via a standard RJ45 connector. Technical specifications: Operating voltage: 9 - 32 V/DC. Operating temperature (range): -40 to 65 °C. Operating temperature (max.): 65 °C. Operating temperature (min.): -40 °C. Product dimensions, width: 86 mm. Product dimensions, height: 70 mm. Type (manufacturer type): AB7702. Additional technical data: Modbus-TCP baud rate: 10 - 100 Mbit/s. Modbus-RTU baud rate: up to 155 kbit/s. Protection class: IP20. Configuration via: IPconfigTool and web browser. Serial interfaces (Modbus-RTU): RS-232, RS-485. Housing: plastic housing (IP20).

Key specifications

Max. port speed
100 Mbit/s
Network connections
RJ45 (1x)
Switchtype
DIN Rail Switch
Item number
22430039

General information

Manufacturer
HMS
Category
Network switches
Manufacturer no.
AB7702
Release date
19/4/2021

Switch properties

Switchtype
DIN Rail Switch
Manufacturer Type
Anybus AB7702

Network connections

Network connections
RJ45 (1x)
Max. port speed
100 Mbit/s
Max. port speed RJ45
100 Mbit/s
Max. Port speed
100 Mbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
24 V/DC 1pc., Anybus AB7702 AB7702 Gateway LAN, Modbus, RS-232, RS-485 12 V/DC

Product dimensions

Length
7 cm
Width
8.60 cm
Height
7 cm
