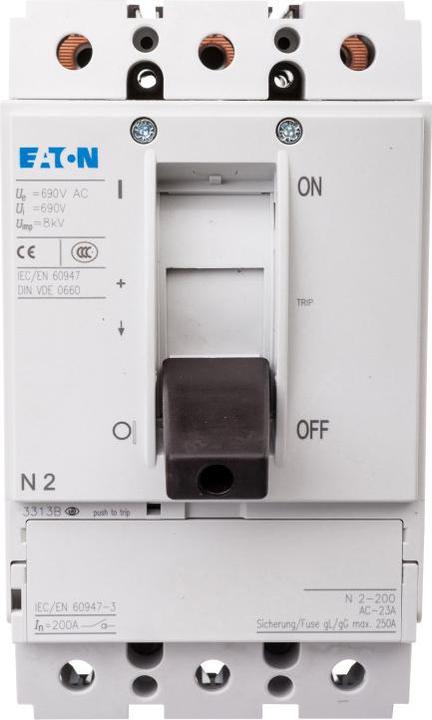

Eaton switch-disconnector N2-200
Manufacturer: Eaton
Designation: Switch-disconnector 3p, 200A
Type: N2-200
Design as main switch: Yes
Design as maintenance/repair switch: Yes
Design as safety switch: No
Design as emergency stop device: Yes
Design as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 200 A
Rated continuous current at AC-23, 400 V: 0 A
Rated continuous current at AC-21, 400 V: 0 A
Rated operational power at AC-3, 400 V: 0 kW
Rated short-time withstand current Icw: 3.5 kA
Rated operational power at AC-23, 400 V: 110 kW
Switching capacity at 400 V: 0 kW
Conditional rated short-circuit current Iq: 0 kA
Number of poles: 3
Motor drive optional: Yes
Motor drive integrated: No
Voltage release optional: Yes
Type of device: Built-in device fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: No
Suitable for front mounting central: No
Suitable for distributor installation: Yes
Suitable for intermediate: Yes
Colour of actuating element: Black
Design of actuating element: Toggle lever
Lockable: Yes
Type of connection, main circuit: Screw connection
Type of protection (IP), front: IP20

Eaton switch-disconnector N2-200: Further details include isolating characteristics suitable for earthed IT systems. Accessories such as bridge kits, connection terminals, and door coupling rotary handles allow for individual installation in various distribution systems. Auxiliary switches, voltage releases, and remote drives enable signaling and automation.

Notes: Main switch characteristics including positive break according to IEC/EN 60204 and VDE 0113. Isolator characteristics according to IEC/EN 60947-3 and VDE 0660. Contact protection according to VDE 0160 part 100.
EAN: 4015082660093.
