Area: xStart
Series: DILM
Number of poles: 3
Coil voltage: 24 V AC
Rated contact current: 25 A
Rated contact voltage: 400 V AC
Contact number and position: 3-pole
Contact configuration: 3 normally open contacts
Number of auxiliary contacts: 1
Power: 11 kW
Connection type: Screw fastening
Length: 85 mm
Width: 56 mm
Maximum operating temperature: +40 °C

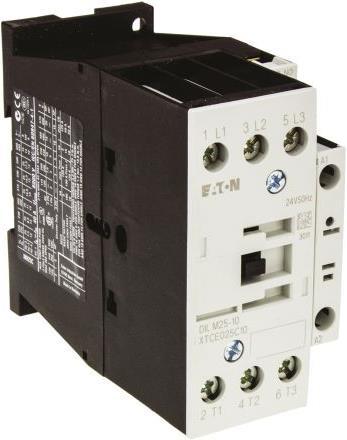

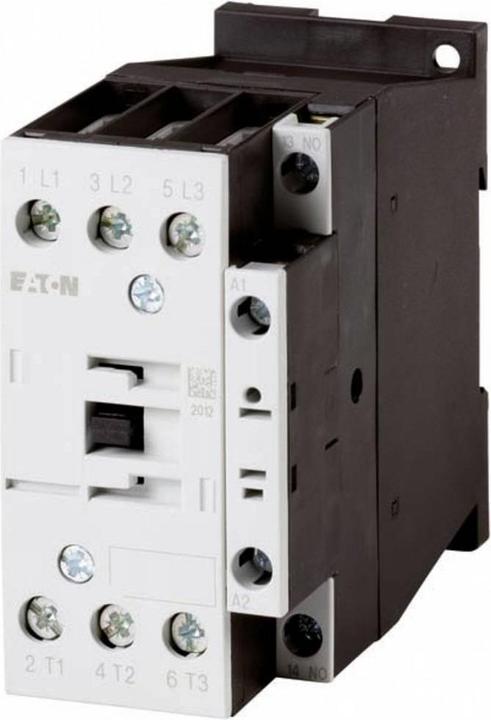

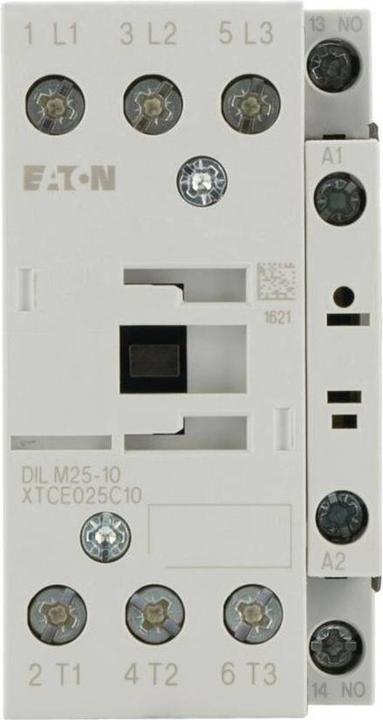

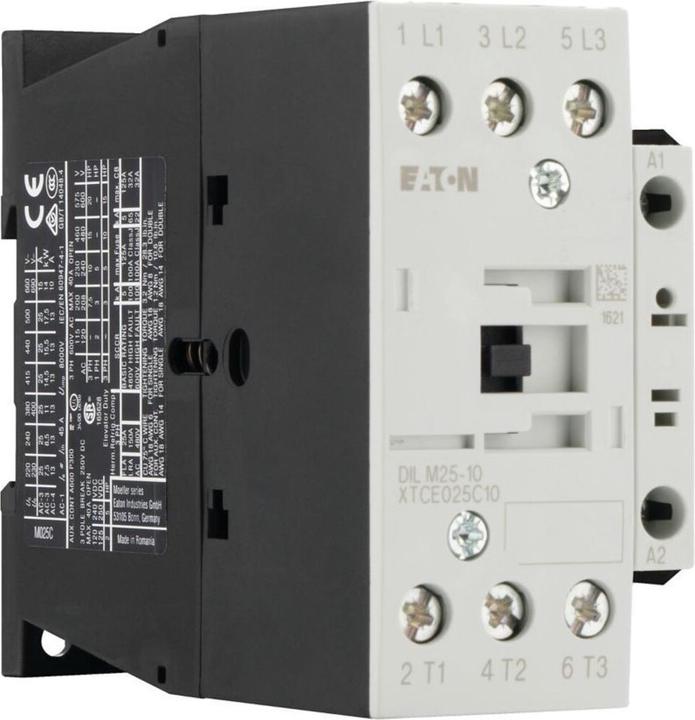

DILM contactors, 3-phase. X Start is the latest generation in the field of contactors, overload protection, and relays from Moeller, based on the proven and tested DIL series. This generation of modular components benefits from technological advancements in motor switching and control, offering users a range of additional advantages. Features and benefits: All contactors are modular and identically constructed. The series is extremely robust, suitable for all requirements, resistant to interference, and provides high reliability of the control circuit, even in combination with a PLC. The electronic power adjustment of the magnetic system in DC contactors allows for very small frame sizes, enabling AC and DC units to have identical dimensions. This now allows for the direct arrangement of AC and DC contactors side by side. Three main normally open contacts in DC contactors from 12 A feature an electronic drive, making coupling relays unnecessary. All DC contactors up to 150 A have an integrated suppression circuit. Connection boxes with double coupling surfaces ensure secure connections when wiring different cross-sections and reduce errors during wiring.
