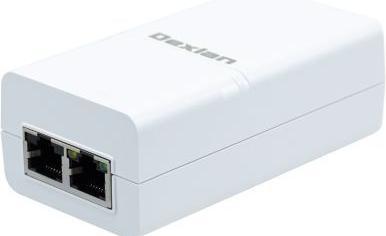

This DEXLAN PoE Gigabit injector complies with IEEE 802.3af / PSE standards. As Power Source Equipment, it supplies power to any PoE-compliant Powered Device. The PoE Gigabit injector delivers power via RJ-45 cable, allowing you to install your IP cameras, IP phones, and wireless APs anywhere, even if there is no wall outlet in the area.

Specifications:

• Compliant with IEEE 802.3af standards
• Supplies power up to a 100-meter cable distance over category 5 cable and above
• PSE device, automatically detects the power to supply
• Plug-and-Play
• Supports Green Technology: supplies power only when the PoE device is connected and powered on
• Standards & Protocols: IEEE 802.3, 802.3u, 802.3af CSMA/CD, TCP/IP
• Compatible with any PoE+ IEEE 802.3af powered device (PD)
• Equipped with 2 x RJ-45 female ports
• Data input: 1 x RJ-45 Gigabit 10/100/1000 Mbps port with Auto-Negotiation (Auto MDI/MDIX)
• Power input: IEC C14 female plug (IEC C13 cord included)
• PoE output (Data + Power): 1 x RJ-45 Gigabit 10/100/1000 Mbps port with Auto-Negotiation function
• PoE type: Gigabit Mode A (EndSpan) DC+ over pins #1-2, DC- over pin #3-6
• 10BASE-T networks: use an UTP / STP category 3, 4, 5 cable (100-meter maximum)
• 100BASE-TX networks: use UTP category 5, 5e, 6 and above (100-meter maximum)
• 1000BASE-T networks: use STP category 5e, 6, 6a and above (100-meter maximum)
• Power and PoE LED indicators
• PSE LED indicator: checks if the connected device is PoE-compliant
• Dimensions: 143 x 60 x 40 mm
• Fixing holes at the bottom of the housing
• Side rail for the assembly of multiple DEXLAN injectors
• External power supply: 110/230V AC with IEC cord included.
