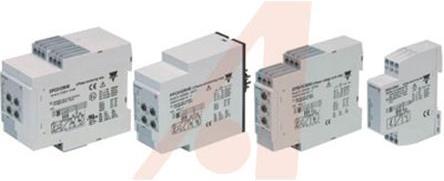

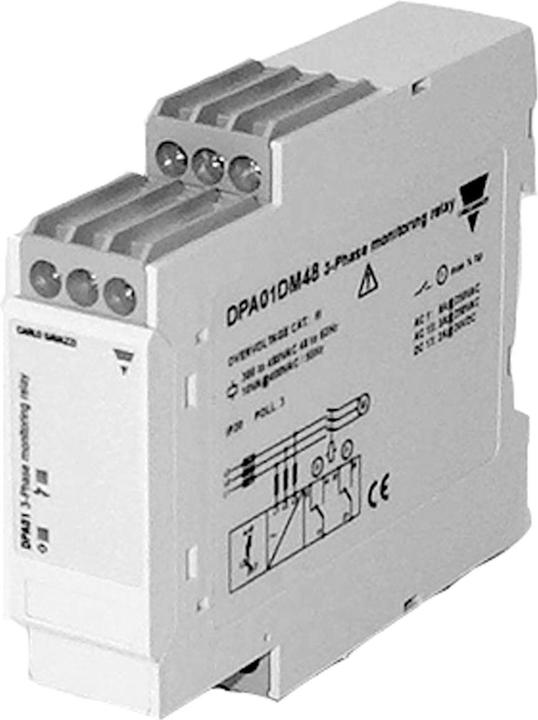

Carlo Gavazzi Phase Monitor SPDT 8/5A 208-480AC DIN

Price in EUR including VAT
Delivered between Sat, 16/8 and Fri, 29/8
7 pieces in stock at supplier
free shipping

Product details

Monitoring applications: Phase, voltage
Supply voltage: 208 to 480 V AC
Contact arrangement: 1 pole changeover switch
Electrical phases: 3
Voltage measurement range: 177 to 550 V AC
Phase sensitivity: Phase loss, phase sequence
Height: 83.5 mm

Overvoltage and overcurrent monitoring relays. Carlo Gavazzi monitoring relays can also be used as 1-phase or 3-phase overcurrent monitoring relays when connected to MI or MP current transformers. Thanks to the integrated latching function, the ON position of the relay output can be maintained. The red LED indicates the alarm status. AC/DC overvoltage monitoring relay selection of measurement range by DIP switch. Measurement ranges: 2 to 20 V AC/DC, 5 to 50 V AC/DC, 20 to 200 V AC/DC, 50 to 500 V AC/DC, 0.4 to 4 Vp AC. Adjustable voltage limit on relative scale, adjustable hysteresis, programmable latching at record level. Output: 8 A, normally off-load 1-pole changeover relay. LED indication for relay and power supply ON. Galvanically isolated power supply. Panel and screw terminal options available.

Key specifications

input voltage
480 V
Output current type
AC/DC
Electric current output
8 A
Relay type
Monitoring relay
Item number
9814362

General information

Manufacturer
Carlo Gavazzi
Category
Relays
Manufacturer no.
DPA01CM44
Release date
1/10/2018

Relay properties

Relay type
Monitoring relay
input voltage
480 V
Electric current output
8 A
Output current type
AC/DC
Switching function
Changer
Manufacturer Type
DPA01CM44

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Italy

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
105 mm
Width
105 mm
Height
29 mm
