Primary nominal voltage: 230V AC
Secondary nominal voltage: 115V AC
Rated power: 60VA
Mounting type: Built-in
Number of outputs: 2
Length: 166mm
Width: 77mm
Depth: 76mm
Dimensions: 166 x 77 x 76mm
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz
Max. temperature: +40°C
Weight: 1.6kg

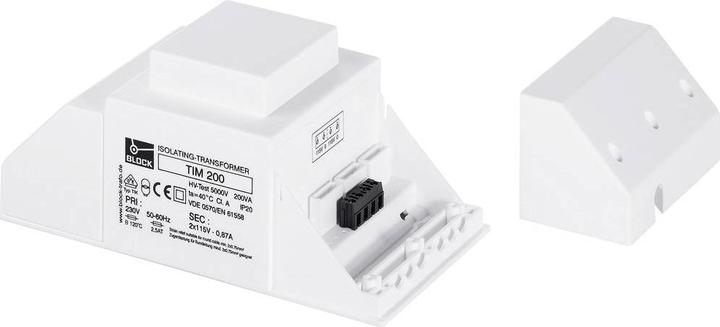

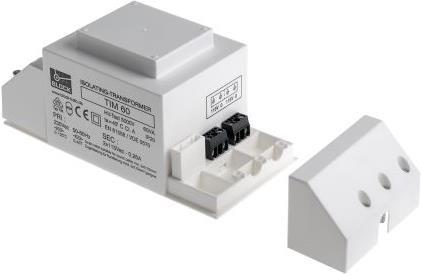

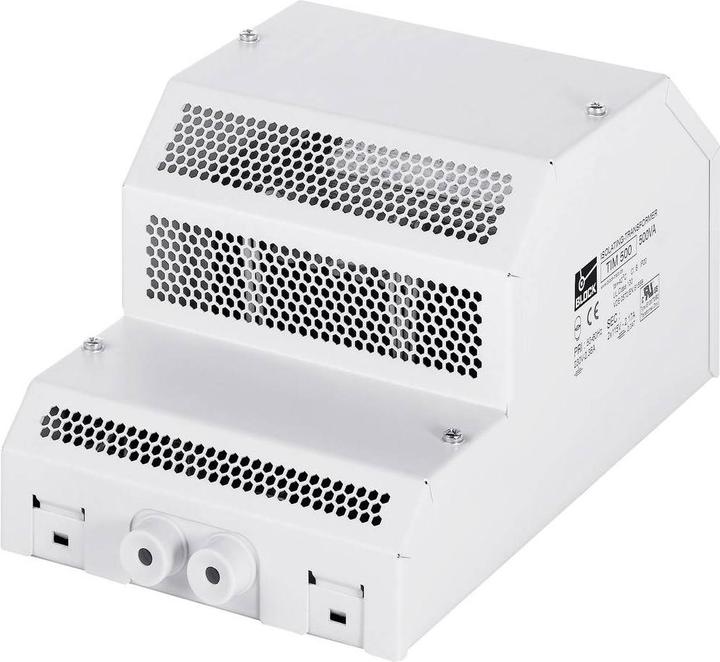

The safety isolation transformers in this series from Block are short-circuit proof and feature thermal overload protection. The single-phase transformers are equipped with mounting holes for easy installation and have two independent secondary windings that can be connected in series or parallel. These highly efficient safety isolation transformers provide protection through an integrated primary fuse. Block's safety isolation transformers benefit from the following features: encapsulated in plastic housing up to 300 VA, metal housing from 500 VA, screw terminals for input and output, strain relief for the connection cable, dual output for series or parallel connection, high efficiency (typ. 88%), 100% electrical testing and 5 kV dielectric testing, max. ambient temperature: +40 °C, insulation class: Class B (typical), design: Class 2, protection class: IP20.
