ASUS VIVO Mini PN64-BB7004MDE1
Intel Core i7-13700HPrice in EUR including VAT
free shipping

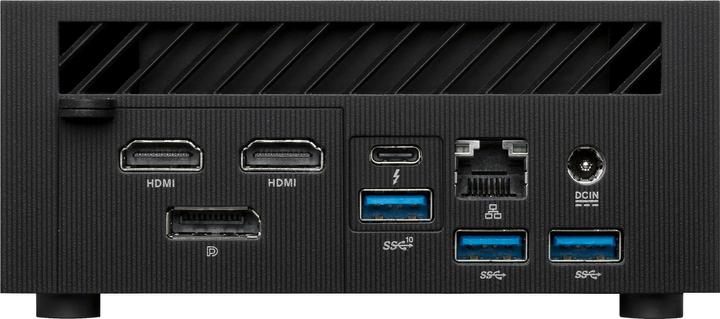

The ASUS PN64-BB7004MDE1 is an ultra-compact mini-PC that delivers strong performance for a wide range of home and business applications. This barebone system is powered by an Intel Core i7-13700H processor with integrated Intel Iris Xe Graphics. The PN64 is network-capable via 2.5-Gigabit LAN and Wi-Fi 6E, and peripherals can be connected through five USB ports, two HDMI ports, DisplayPort, and Bluetooth 5.2.
Number of processor cores | 14 -Core |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 PCIe (1x), S-ATA III (1x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Video connections | DisplayPort, HDMI Type A |
Memory type | DDR5 RAM |
USB ports | USB-C |
Item number | 32460062 |
Manufacturer | ASUS |
Category | Barebones |
Manufacturer no. | 90MR00W2-M00040 |
Release date | 2/5/2023 |
External links |
Design | Ultra Slim |
Processor type | Intel Core i7-13700H |
Clock frequency | 3.70 GHz |
Number of processors | 1 x |
Number of processor cores | 14 -Core |
Number of threads | 20 |
Socket | BGA 1744 |
Max. turbo clock rate | 5 GHz |
Processor properties | Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Graphics card model | Intel Iris Graphics |
Internal connection options | M.2 PCIe (1x), S-ATA III (1x) |
Data storage controller | Intel I225-V |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-C |
Exact USB ports | USB-C 4 (2x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2500 Mbit/s |
Network features | Wake on LAN |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Wi-fi frequency | 5 GHz |
Bluetooth version | 5.2 |
Video connections | DisplayPort, HDMI Type A |
Audio outputs | 3.5mm headphones |
Power | 120 W |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Barebone, without operating system |
Weight | 700 g |
Width | 120 mm |
Length | 130 mm |
Height | 58 mm |
Length | 29 cm |
Width | 18 cm |
Height | 7.30 cm |
Weight | 1.74 kg |
