Power inverters
EUR269,–
MeanWell UHP-750-12 AC/DC power supply module, closed 60 A 720 W 12 V/DC output voltage adjustable
Best selling Power inverters from MeanWell
On this page you'll find a ranking of the best MeanWell products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

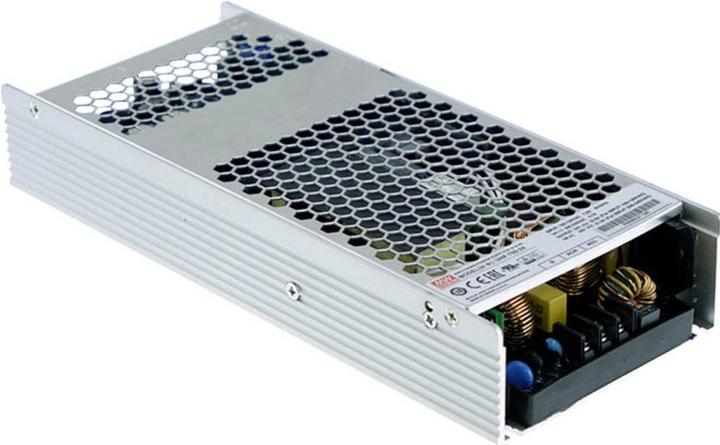

1. MeanWell UHP-750-12 AC/DC power supply module, closed 60 A 720 W 12 V/DC output voltage adjustable
With the newly added power supplies from the UHP-750 series, MEAN WELL rounds up the output power of the UHP family to 1000 W. The power supplies in the UHP series feature a narrow U-bracket design with a low profile of 31 mm. The series boasts a high efficiency of up to 96% with a wide operating temperature range of -30 to +70 °C through simple air convection. MEAN WELL power supplies provide a power reserve of 150% (100 ms) of the rated current for peak loads and can be used at altitudes of up to 5000 m. The UHP-350R version additionally includes a DC-OK signal and a redundancy function. The power supplies in the UHP series comply with international standards and are suitable for a wide range of industrial applications.

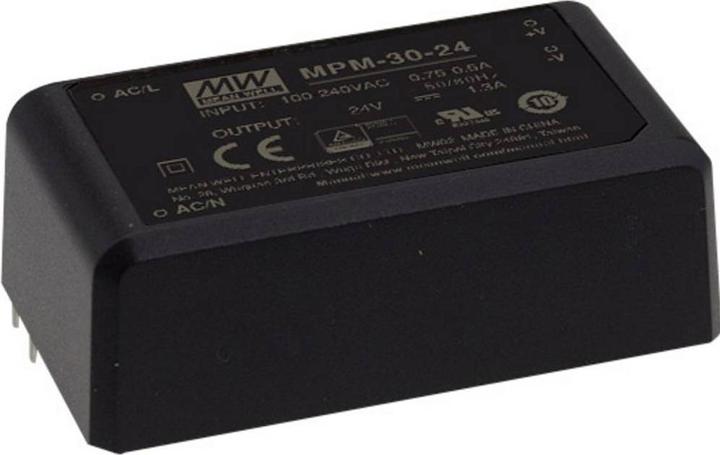

2. MeanWell Medical Encapsulated Single Output Power: 30W
Mean Well introduces a new power supply series with high power density: the MPM series in a closed form for PCB mounting. Compared to the size of the previous generation - PM and NFM - the new series is only one third the size, yet offers a wider operating temperature range, higher efficiency, and lower no-load power consumption. The design of this series complies with the IEC / EN60601-1 3rd edition and ANSI / AAMI ES60601-1 standards, meets the requirements of 2x MOPP, and has a low leakage current (<80μA). It is approved for medical devices of class BF with direct patient contact. Suitable applications include medical testing equipment, portable medical devices, and medical devices that require extremely low standby power consumption.
3. MeanWell DC/DC converter modules RSDW10 series RDDW10 Case Single and Dual Output 1 Railway
The Mean Well RSDW10H-03 is a powerful DC/DC converter designed for applications in the railway technology sector. With a maximum output power of 10 watts and an output current of up to 2.5 amperes, this module provides reliable voltage conversion. It is housed in a compact DIP24/DIL24 package, allowing for direct mounting on circuit boards. The converter supports a wide input voltage range of 43 to 160 V/DC and features a high efficiency of up to 88%. Additionally, it is equipped with various protection mechanisms to safeguard against short circuits, overloads, and overvoltages. The isolation between input and output is 3000 V DC, ensuring additional safety. The RSDW10H-03 is therefore an ideal choice for demanding applications that require a stable and secure power supply.
- Input voltage ratio of 4:1
- No minimum load required
- Operating temperature range of -40 °C to +85 °C
- Protection mechanisms against short circuit, overload, and overvoltage
- RoHS compliant.
Power inverters
EUR44,16
MeanWell DC/DC converter modules RSDW10 series RDDW10 Case Single and Dual Output 1 Railway
4. MeanWell MEAN WELL RID-50A, 88 - 264 V, 50 W, 5 V, 2 A, RoHS, 97 mm
The MEAN WELL RID-50A is a reliable voltage converter designed for a variety of applications. With an input voltage range of 88 to 264 V and an output voltage of 5 V, this switching power supply offers an output power of up to 54 W. It is ideal for use in devices that require a stable and efficient power supply. The RID-50A features a compact design with dimensions of 97 mm in width, 36 mm in height, and 99 mm in length, making it a practical choice for tight spaces. Weighing 410 g, it is easy to integrate. The device complies with RoHS regulations, making it an environmentally friendly option. The output current of 6 A ensures that even power-intensive applications can be reliably operated. Its robust construction and high safety standards make the MEAN WELL RID-50A a trusted choice for professionals and technology enthusiasts.
Power inverters
−23%
EUR61,90 was EUR79,90
MeanWell MEAN WELL RID-50A, 88 - 264 V, 50 W, 5 V, 2 A, RoHS, 97 mm
5. MeanWell DC/DC converter modules SCWN06 series Case Single Output 1 regulated
Mean Well expands its range of 6W DC/DC converters with single output by introducing the SCWN06 series in a DIP24 package. In addition to a wide input range of 2:1 and an extremely broad operating temperature range of -40 to +90°C, they feature 3000V DC I/O isolation. Suitable applications include IoT, electronics, telecommunications, networks, industrial control, and distributed power architecture.
Power inverters
−5%
EUR18,14 was EUR19,14
MeanWell DC/DC converter modules SCWN06 series Case Single Output 1 regulated

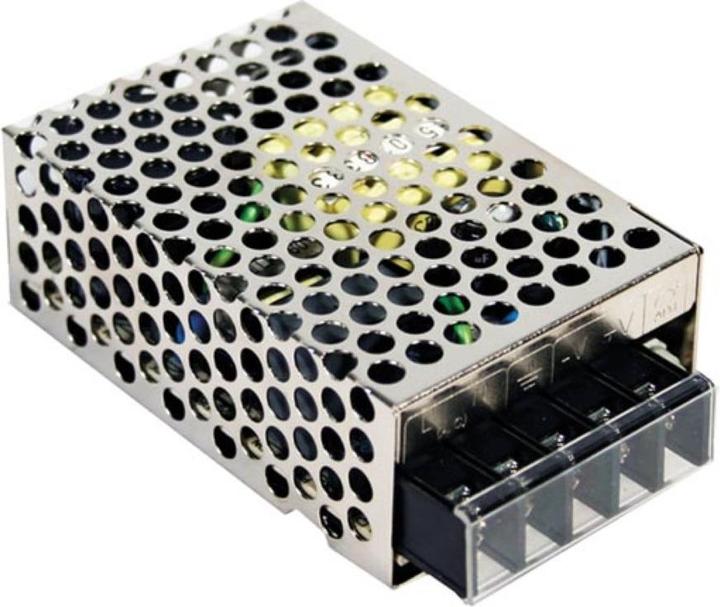

6. MeanWell Ite Switching Power Supply - Single Output - 25 W - 24 V - Closed Frame
Null.
Power inverters
EUR23,69
MeanWell Ite Switching Power Supply - Single Output - 25 W - 24 V - Closed Frame
7. MeanWell MEAN WELL SD-50C-5 Electrical converter (SD-50C-5)
The MEAN WELL SD-50C-5 is a powerful DC/DC converter designed for a variety of applications. With a rated power of 50 watts and an adjustable output voltage of 5 V, this device provides a reliable power supply for electronic devices. The converter can handle input voltages between 36 V and 72 V and delivers a maximum output current of 10 A. Its compact design and aluminum housing ensure efficient heat dissipation and durability. The SD-50C-5 is equipped with various protection mechanisms, including overcurrent protection, short circuit protection, and overvoltage protection, making it a safe choice for demanding applications. With a high efficiency of 76% and an MTBF of over 3 million hours, this voltage converter is ideal for use in vehicles and other mobile applications where reliability and performance are crucial.
- Adjustable output voltage from 4.5 V to 5.5 V
- Operating temperature range from -10 °C to 60 °C
- High isolation voltage of 1.5 kV
- EMI filter at the input for improved noise immunity
- Protection mechanisms: overcurrent protection, short circuit protection, overvoltage protection.
8. MeanWell DC/DC Converter Modules SCWN03 Series DIP/DIL24 Case Single Output 1 regulated
Mean Well expands its range of 3W DC/DC converters with single output by introducing the SCWN03 series in a DIP24 package. In addition to a wide input range of 2:1 and an extremely broad operating temperature range of -40 to +90 °C, they feature 3000 V DC I/O isolation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control, and distributed power architecture.
Power inverters
EUR19,14
MeanWell DC/DC Converter Modules SCWN03 Series DIP/DIL24 Case Single Output 1 regulated
9. MeanWell DC/DC Converter Modules SPB09 Series Case Single Output 1
The Mean Well SPB09C-12 DC/DC converter module is a reliable solution for voltage conversion, making it ideal for applications in electronics and mechanical engineering. With a maximum output power of 9 watts and an output voltage of 12 volts, this module provides efficient conversion of direct current. It is designed for direct mounting on circuit boards, allowing for easy integration into various systems. The input voltage range of 36 to 75 volts and high efficiency of up to 89% make it a flexible choice for different requirements. The module is equipped with protection mechanisms against short circuits, overload, and undervoltage, enhancing safety and reliability during operation. Additionally, it offers isolation between input and output of 1500 V DC, making it suitable for demanding applications. The operating temperature ranges from -40 °C to +90 °C, ensuring wide applicability.
- Input voltage ratio of 2:1
- No minimum load required
- Remote ON/OFF control
- Protection mechanisms against short circuits and overload
- Isolation voltage of 1500 V DC.

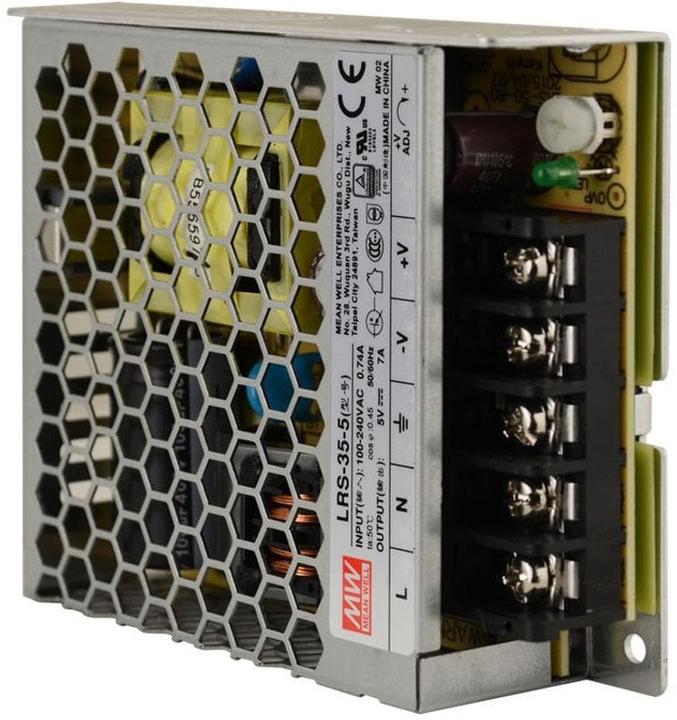

10. MeanWell Chasisnetzgerät LRS-35-5 35 W, 5 V
The MeanWell chassis power supply LRS-35-5 is a reliable and powerful power supply designed for a variety of industrial applications. With a rated power of 35 W and a stable output voltage of 5 V, this device provides efficient power for electronic devices and systems. It is designed to operate with an input voltage of 100 to 240 V, making it versatile regardless of local power supply conditions. The rated output current of 7 A ensures sufficient power for most applications. The chassis power supply is equipped with terminals for connection, allowing for easy installation and integration into existing systems. The compact design of the device facilitates mounting in tight spaces and provides a space-saving solution.
- Input voltage of 100 to 240 V for worldwide use
- Stable output current of 7 A for reliable performance
- Terminal connections for easy installation
- Compact design for flexible mounting options.
