Best Busch-Jaeger products in the Motion sensors category
On this page you'll find a ranking of the best Busch-Jaeger products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Busch-Jaeger Comfort switch

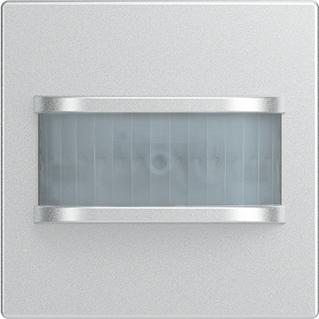

The Busch-Jaeger comfort switch is an innovative combination of motion detector and push button designed for flush mounting. This set includes a comfort switch control element flex, a relay insert, and a Reflex SI cover frame. The motion detector uses passive infrared technology to detect movements within its range. With a maximum detection range of up to 5 meters and a scan angle of 10 degrees, this comfort switch is ideal for indoor use. The mounting height of 1.1 meters ensures optimal functionality. The comfort switch is not compatible with smart home systems but provides reliable control via infrared. The forced on and forced off functions allow for flexible use in various applications. The switch is made from high-quality, halogen-free thermoplastics and features a glossy surface.
- Passive infrared technology for precise motion detection
- Maximum range of 5 meters and scan angle of 10 degrees
- Forced on and forced off functions for flexible use
- Made from halogen-free thermoplastics with a glossy surface
- Suitable for flush mounting in indoor environments.
2. Busch-Jaeger Guardian
Busch-Jaeger Watchman sensor dav/sws 6122/02-84
Manufacturer: Busch-Jaeger
Designation: Watchman sensor dav/sws UP 180 Comfort
Type: 6122/02-84
Bus system KNX: Yes
Bus system Powernet: Yes
Other bus systems: Other
Design: Motion detector
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Color: Studio white (RAL 9016)
Operating mode switch: Yes
Staircase monitoring: Yes
Max. range to one side: 43.953 m
Max. range frontal: 10 m
Detection field diameter on floor: 6 m
Detection angle vertical: -5°
Detection angle horizontal: 0°
Number of channels: 4
Min. duty cycle: 10 s
Max. duty cycle: 17 min
Duty cycle: 17 min
Min. depth of device box: 33 mm
Busch-Jaeger Guard sensor dav/sws 6122/02-84: More details for Busch-Installationsbus KNX 6120/12-101, 6120/13 and Busch-Powernet KNX 6920/12, 6920/13 and 6920/40. Motion detector with up to 4 channels, including 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.). For suitable cover frames, see the program carat, pur edelstahl, solo, Busch-axcent or future linear. EAN: 4011395135198.
3. Busch-Jaeger Flex Set

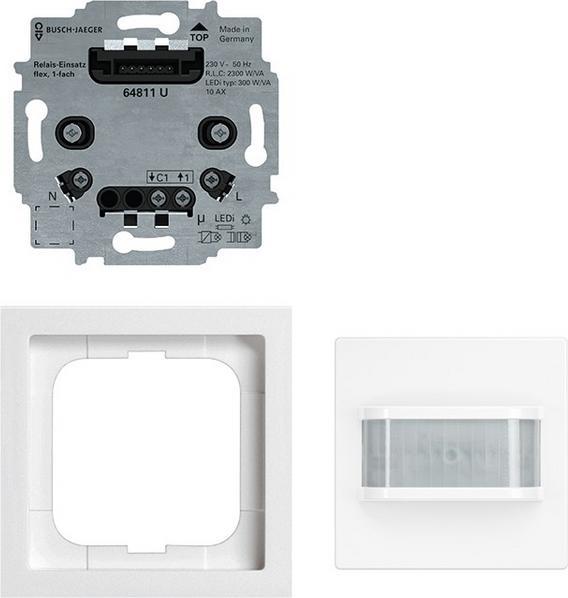

The Flex Set from Busch-Jaeger is an innovative motion detector designed for flush mounting. This set includes the Busch-Wächter® 180 flex Basic Sensor, a relay module, and a Reflex SI cover frame. The motion detector is ideal for indoor use, offering a range of up to 12 meters with a detection angle of 180 degrees. Installation is done in standard flush-mounted device boxes, making it easy to integrate into existing systems. The Flex Set is not only functional but also compatible with modern smart home systems such as Google Assistant, Apple Home, and Amazon Alexa, allowing for easy control. Additionally, the motion detector offers numerous customization options, including adjustable sensitivity and brightness settings, as well as a remote control function. The use of high-quality materials ensures durability and reliability in application.
- Adjustable sensitivity and brightness settings
- Compatible with smart home systems like Google Assistant and Apple Home
- Range of up to 12 meters and a detection angle of 180 degrees
- Remote control function for added convenience
- Antibacterial treatment of the housing for hygienic use.
4. Busch-Jaeger BUSC Motion detector
The BUSC motion detector from Busch-Jaeger is a highly advanced device designed for reliable detection of movements indoors. With a detection angle of 220 degrees and a range of up to 16 meters, this motion detector provides comprehensive monitoring. It is ideal for installation on walls or ceilings and is particularly well-suited for monitoring stairwells. The sensor operates using passive infrared technology, allowing for precise movement detection without the need for a direct line of sight. The sensitivity and brightness response are adjustable, enabling customization for different environments and lighting conditions. The BUSC motion detector is also equipped with forced activation and forced deactivation features, providing additional flexibility in use. With an IP55 protection rating, it is protected against dust and splashes, ensuring its durability and reliability in various environments.
- Detection angle of 220 degrees for comprehensive monitoring
- Range of up to 16 meters
- Adjustable sensitivity and brightness response
- Forced activation and forced deactivation for flexible use
- IP55 protection rating for dust and splash resistance.
5. Busch-Jaeger Set comfort
The Busch-Jaeger Comfort Set is a ready-to-install motion detector designed for flush mounting. This set includes the Busch-Wächter® 180 flex Comfort sensor with a select lens, a relay insert, and a future® linear cover frame. The motion detector is ideal for indoor use, offering a range of up to 12 meters and a detection angle of 180 degrees. Installation is done in standard flush-mounted device boxes and is compatible with a Smart Home Hub, allowing for easy integration into existing systems. The motion detector is made of high-quality plastic and features an IP20 protection rating, making it suitable for use in dry indoor environments. With a maximum power consumption of 2300 watts, it is suitable for various applications and can be conveniently controlled via a remote control.
- PIR sensor technology for precise motion detection
- Detection angle of 180 degrees for comprehensive coverage
- Compatible with Smart Home systems
- Easy installation in standard flush-mounted device boxes
- IP20 protection rating for use in dry indoor environments.
6. Busch-Jaeger Comfort

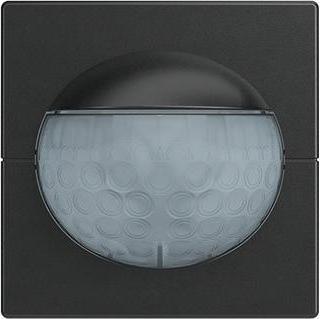

The Busch-Jaeger Comfort Sensor 64762-83 is a highly advanced motion detector designed for flush mounting. With a maximum range of 12 meters and a detection angle of 180 degrees, this sensor provides comprehensive coverage for indoor spaces. It enables automatic control of electrical devices based on movement and ambient light. The response brightness is adjustable, allowing for flexible adaptation to different lighting conditions. The Comfort Sensor is also equipped with a dimming function that can be used in combination with a dimmer module to regulate lighting as needed. The animal passage function ensures that the sensor is not unnecessarily activated by animals within the detection area. With a mounting height of 2.5 meters, the sensor is ideal for installation in residential and commercial spaces.
- Adjustable response brightness for flexible light control
- Dimming function in combination with dimmer module
- Animal passage function to prevent false alarms caused by animals
- Flush mounting for aesthetic integration into spaces
- Maximum range of 12 meters for comprehensive coverage.
7. Busch-Jaeger 64765-83
The Busch-Jaeger Comfort Switch 64765-83 is an innovative combination of motion detector and push-button switch that allows for flexible and efficient control of lighting systems. This motion detector is both brightness- and motion-dependent, providing the option to manually control the lighting via the integrated push-button switch. With a detection angle of up to 170 degrees and a range of 3 meters, it is ideal for use in various rooms. The back of the device features adjustment elements that allow for individual customization of the brightness switching threshold and the delay time. Additionally, the comfort switch is equipped with an indicator LED that signals when manual operation is required. The versatile operating modes, including automatic and semi-automatic modes, offer additional flexibility and convenience.
- Detection area with 9 sectors and 28 switching segments for precise control
- Adjustable switch-off delay from 1 to 10 minutes
- Compatible with various flex inserts for extended functionality
- Permanent light and permanent off functions for additional control options
- Integration into smart home systems such as Apple HomeKit and Google Assistant.
8. Busch-Jaeger KNX AP guard
The KNX AP-Wächter from Busch-Jaeger is a highly advanced motion detector specifically designed for use in the KNX installation bus. With a circular detection range and a reach of up to 24 meters, it is ideal for monitoring large spaces. The motion detector allows for targeted control of light strips, depending on the ambient light level, and offers an integrated monitoring function. Its compact design, with a mounting height of only 23 mm, enables easy installation in suspended ceilings. The KNX AP-Wächter is equipped with two independent channels, allowing for flexible light control. Additionally, the programming button can be activated with an IR remote control, further simplifying operation. This product is an excellent choice for modern smart home applications and contributes to energy efficiency in residential and commercial spaces.
- Circular detection range with a reach of up to 24 m
- Two independent channels for targeted light control
- Integrated monitoring function to enhance security
- Compatible with KNX installation bus for smart home applications
- Easy installation in suspended ceilings with a mounting height of 23 mm.
9. Busch-Jaeger 64764-885
The Busch-Jaeger motion detector 64764-885 is a highly advanced sensor equipped with ambient light measurement. It allows for the automatic switching of electrical devices based on movement and light conditions. This motion detector is particularly versatile and is suitable for installation indoors, including stairwells. With a detection range of up to 8 meters and a detection angle of 180 degrees, it provides comprehensive monitoring. Its functionality can be enhanced by combining it with various flexible inserts, enabling dimming functions and light value storage. The sensor is designed to operate effectively even at mounting heights of up to 2.20 meters and offers a variety of settings to adapt to specific requirements.
- Ambient light measurement for automatic control of devices
- Detection range up to 8 meters with a 180-degree detection angle
- Compatible with various flexible inserts for extended functions
- Activatable switch-off warning for stairwell operation
- Adjustable switch-off delay from 10 seconds to 30 minutes.
10. Busch-Jaeger Presence detector 6131/30-24 Normal WS

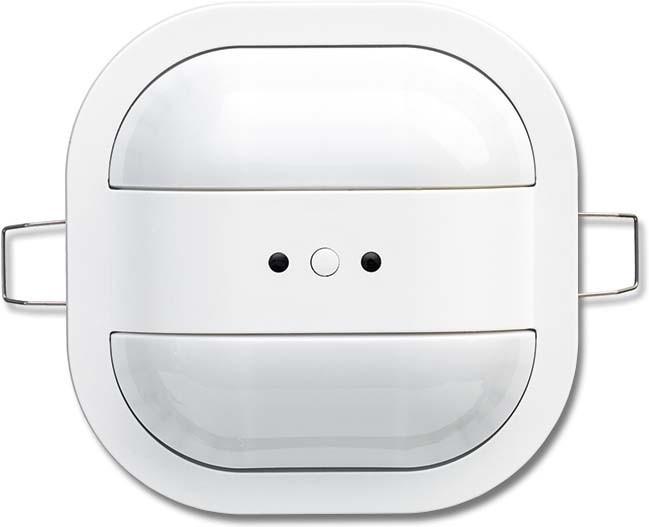

Detection range (at mounting heights of 2.5 m, 3 m, and 4 m): circular. Sitting persons diameter: max. 8 m, max. 10 m, and max. 14 m. Walking persons diameter: max. 10 m, max. 12 m, and max. 16 m. Installation height 23 mm. With 2 channels. For targeted switching on and off of light strips depending on room brightness. Regulation also possible depending on movement. The device can be used as a presence and/or motion detector. Detector application with a 2-stage switch-off function. Detector application with integrated monitoring function. Constant light switch with up to 2 independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light strips in the room. With integrated KNX bus coupler. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Cut-out dimension: Ø 68 mm. Suitable for surface mounting in combination with a surface-mounted housing. Not compatible with British Standard and VDE flush-mounted boxes. Recommendation: HaloX 100 from Kaiser or IBTronic H120-68 from Spelsberg. If needed, please refer to the current online catalog for software and description.
Type: 6131/30-24
Presence detector.
