Best Wabeco products in the Machine accessories category
On this page you'll find a ranking of the best Wabeco products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

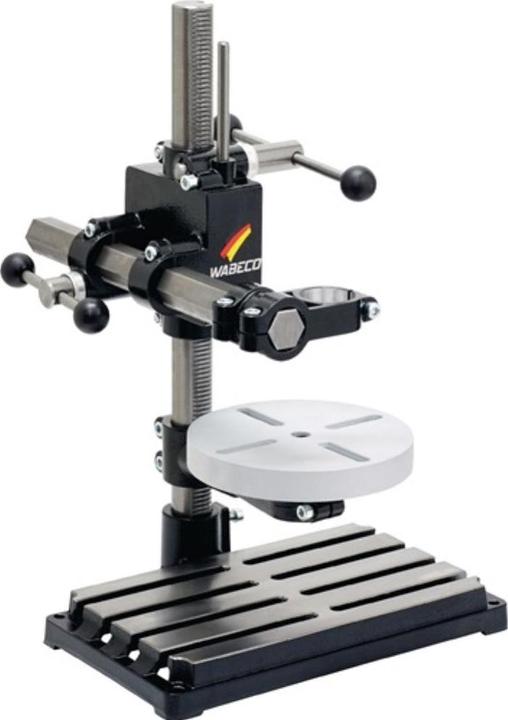

1. Wabeco 24400 BF1240 Bohrständer
Wabeco 24400 BF1240 Drill Stand
Description
Unique: With a second drive shaft for vertical and horizontal drilling and milling operations.
Robust: The steel column in the base plate can be rotated 360° and locked in any position, allowing work from all sides and the processing of large workpieces.
Space-saving: A flexible and space-saving alternative to bench, column, and stand drills.
Application area: Drilling, milling, turning, and reversing for metal, wood, and plastic processing.
Precise drilling and milling: Accurate placement of tools on the workpieces.
Working area: Travel range Z-axis 250 mm; travel range Y-axis 175 mm.
Massive steel column: 360° rotatable, total height 500 mm, knurled Ø 35 mm.
Hexagonal steel tube: Total length 350 mm, gearing 30 mm.
Machine carrier: 360° swivelable with locking every 15°, for accommodating drive units with Euro standard Ø 43 mm; turning maneuvers can also be performed with the machine carrier swiveled.
Base plate: Machined from cast iron 300 x 180 mm, with T-slots, allowing flexible and stable workpiece clamping. 4 T-slots for 10 mm T-slots or M10 hex bolts.
Depth stop and return spring: For drilling workpieces to always the same exact drilling depth.
Heavy, robust design: Weight without packaging 14.1 kg.
Technical Data
Vertical displacement of the Z-axis 250 mm
Vertical drilling stroke with return spring 55 mm
Y-axis cross travel 175 mm
Total height 500 mm
Gearing Ø 35 mm
360° rotatable Yes
Total length of the steel arm 350 mm
Suction Euro standard Ø 43 mm
360° swivelable with locking every 15° Yes
Base plate made of cast iron 300 x 180 mm
Number of grooves 4
Width of slots for 10 mm T-slots or M10
Weight without packaging 14.1 kg.

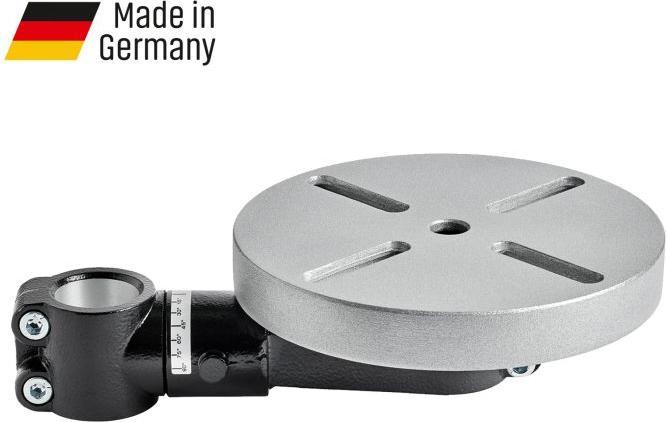

2. Wabeco 22310 Tisch für Säulenbohrständer
Wabeco 22310 Table for Pillar Drilling Stand
Special Features:
Suitable for WABECO drilling stands BF1230, BF1240, BF1242, BF1243, and BF1244. Height adjustable. Registration for rotating and tilting workpieces. The milling table rotates 360° around a steel column. The milling table is also swivelable by 360°. The clamping table with four slots can be rotated 360° in its holder.
Examples of Use:
For angled drilling, e.g., 45° drilling. For angled surfaces, e.g., chamfering. For circular operations. Suitable machine vice.
Item No. 40521
Technical Data:
Diameter: 180 mm.
Scope of Delivery:
Refers only to the holder. Not including the stand.

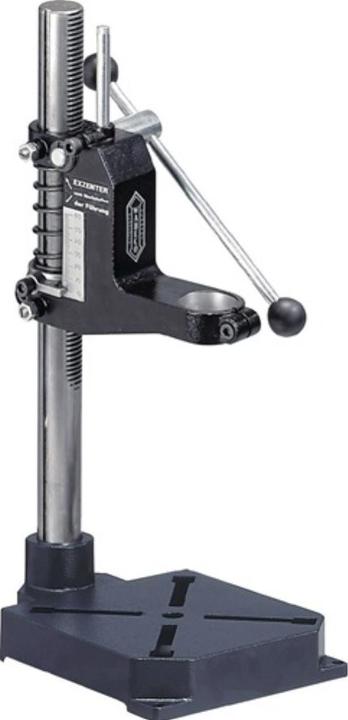

3. Wabeco Drill rig
With return spring and depth stop. The drill column is infinitely rotatable through 360°. Column diameter is 35 mm. Base plate measures 185 x 200 mm. Suitable for all drilling machines with Euronorm spindle neck diameter of 43 mm.
4. Wabeco Table drill stand
With a return spring and depth stop, the drilling column is infinitely rotatable at 360°. The rotary table swivels 360° in all directions, making it suitable for all drilling machines with a spindle neck of 43 mm in diameter.
5. Wabeco Bohrständer BF1243
The Wabeco 24500 BF1243 drill stand is a versatile tool designed for precise drilling and routing work in various materials such as metal, wood and plastic. With two input shafts, this drill stand enables both vertical and horizontal drilling and routing. The Z-axis provides a vertical feed for drilling operations, while the Y-axis is responsible for horizontal milling work. The rotating steel column, which can be rotated 360° in the base plate, allows the workpiece to be fixed in any desired position, making it easier to machine larger workpieces. The drill stand is a flexible and space-saving alternative to conventional bench, column and pillar drills and is ideal for precise applications.
