Best Amf products in the Machine accessories category
On this page you'll find a ranking of the best Amf products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Amf Parallel Support Set No. 6348P
Precision in wooden case - case-hardened - pairwise plane-parallel fine-ground - sets give a range with 1 mm increments - pair tolerance tp in height IT 5 nominal dimension tolerance in height ± 0.01 mm remaining dimensions according to DIN ISO 2768m. Further technical features: contents: 24 pairs.

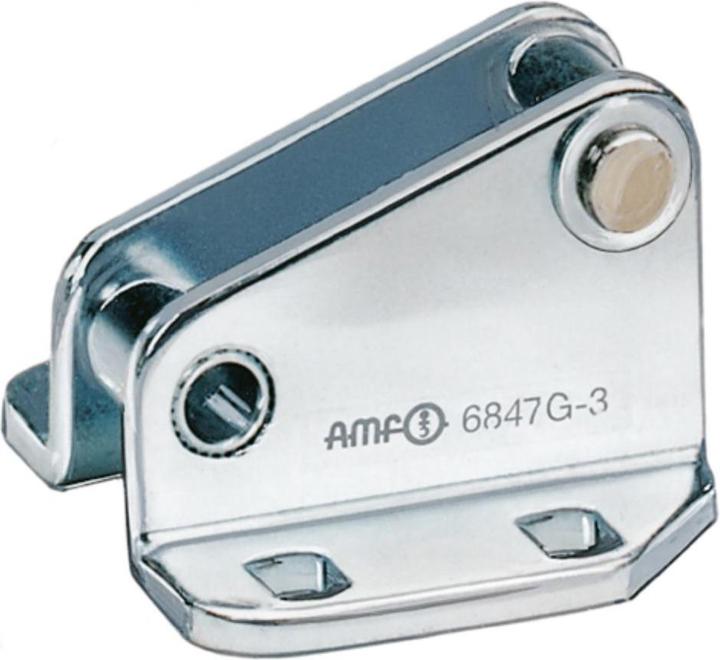

2. Amf Counter catch
The AMF Counter Holder No. 6847G is a high-quality accessory specifically designed for use with closure clamps. This product is characterized by its robust construction and durability. The counter holder is galvanized and passivated, which protects it from corrosion and extends its lifespan. The use of case-hardened bushings and stainless steel rivets ensures high stability and reliability during operation. The counter holder is suitable for use in milling machines and provides a precise fit that guarantees optimal functionality. With a length of 31 mm and other specific dimensions, this counter holder is an ideal addition for professional applications.
- Galvanized and passivated for additional corrosion protection
- Case-hardened bushings for increased stability
- Stainless steel rivets for longevity
- Specifically designed for use with closure clamp No. 6847.

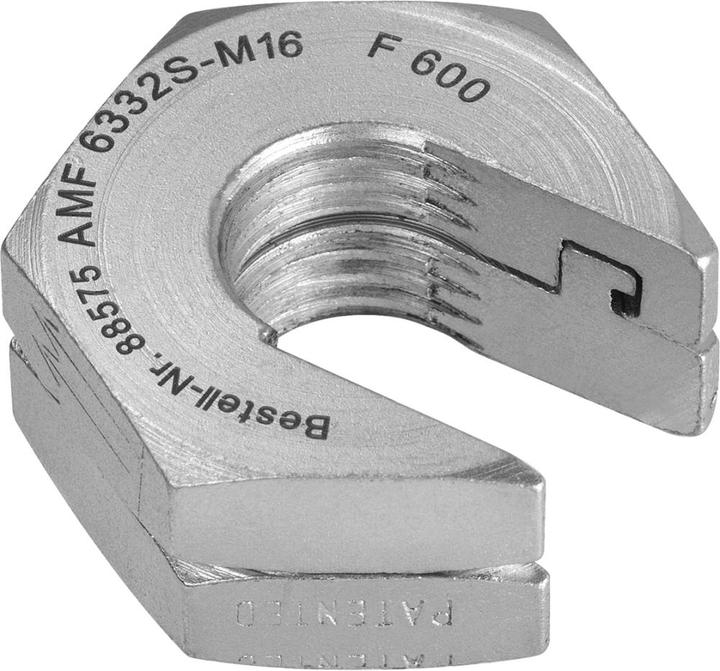

3. Amf Quick-action nut without shoulder
AMF Quick-action nut without shoulder 6332S, M 12
6332S tempered and galvanised, strength 6.

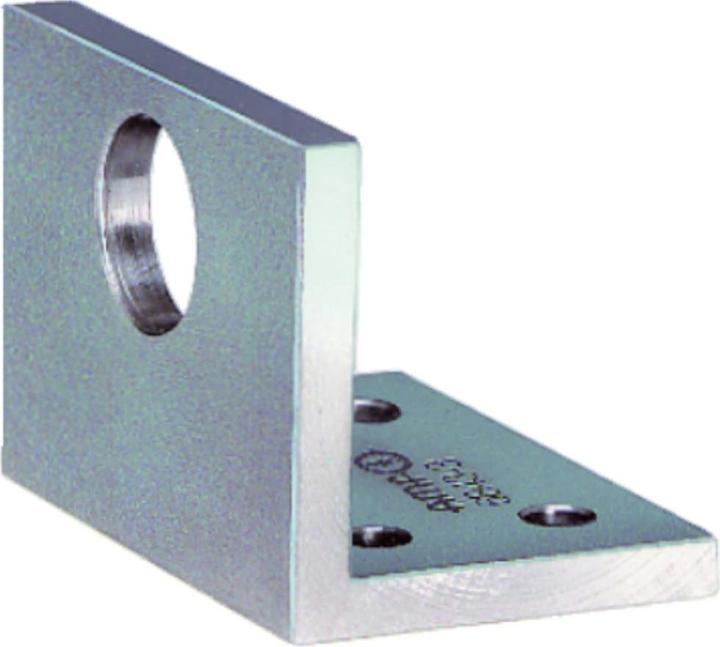

4. Amf Angle foot size 3 no. 6843
Angle foot stable - Application: For fastening the push-rod clamp. - Design: Extends the range of application due to greater clamping height for installation in fixtures. Fixing by means of 4 screws. - Note: Stainless steel design on request.
5. Amf Continuously adjustable clamping jaw
Scope of delivery:
- 1x AMF clamping jaw No. 6321 for T-slot 14 mm
Product description:
Infinitely adjustable, made of steel, forged and heat-treated, galvanized. Application: The infinitely adjustable clamping jaw quickly accommodates various clamping heights without additional support and requires little space on the machine table. It is designed for maximum load and is particularly suitable for clamping cutting and punching tools. Note: With screws for T-slots DIN 787, length 160 mm, a maximum clamping height of 75 mm can be achieved with clamping jaw sizes 12 and 14.
Further technical data:
- Length: 140 mm
- B1: 17 mm
- B2: 50 mm
- E2: 55 mm
- E1: 30 mm
- Weight: 1080 g
- L: 140 mm
- H: 0-50 mm
Application: The infinitely adjustable clamping jaw quickly accommodates various clamping heights without additional support and requires little space on the machine table. It is designed for maximum load and is particularly suitable for clamping cutting and punching tools.

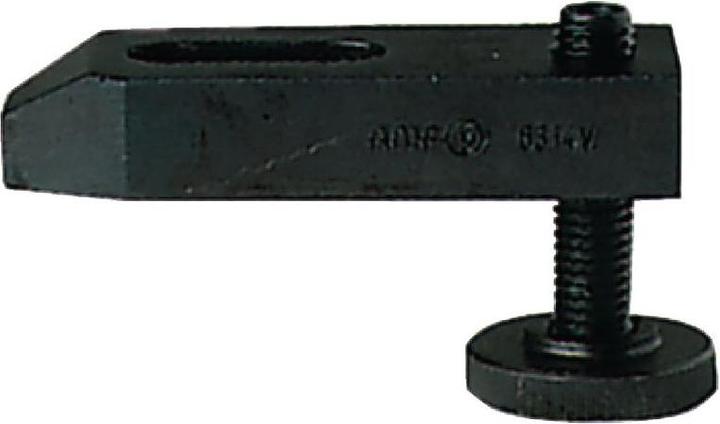

6. Amf Clamp straight adjustable
The adjustable clamping fixture from AMF, model 6314V, is a high-quality accessory for milling machines, made from painted alloy steel. It provides a robust and durable solution for securely holding workpieces during the machining process. With an adjustable height of 10 to 47 mm and a length of 100 mm, this clamping fixture is versatile and suitable for various applications. The groove widths of 12 and 14 mm allow for flexible adaptation to different requirements. The product is delivered without a T-slot screw, enabling a customized selection of fastening elements. The precise workmanship and the use of metal in the material group ensure high stability and reliability. This clamping fixture is a valuable addition to any workshop that prioritizes quality and efficiency.

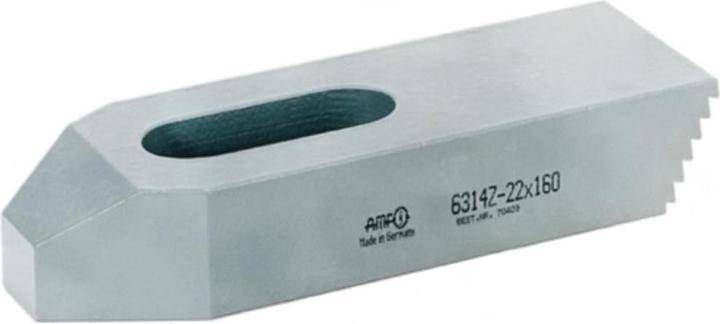

7. Amf Step clamps
AMF Clamping iron with stepped teeth 6314Z, Tempered steel lacquered, 9 x 100
No. 6314Z, Tempered steel painted.
8. Amf Forked clamp with pin end
AMF Forked clamping iron with round clamping projection 6315C,, 9 x 100
DIN 6315C, tempering steel, varnished.

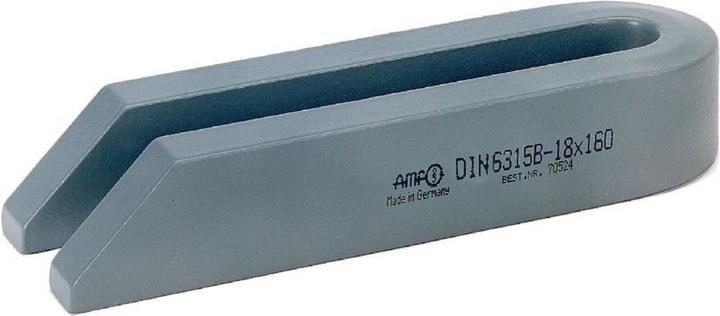

9. Amf Forked clamp tapered
The AMF chamfered clamping iron is a high-quality accessory specifically designed for use on milling machines. Made from heat-treated steel and painted, it offers high strength and durability. The chamfered shape ensures optimal adaptation to various workpiece shapes and sizes, increasing flexibility in application. With a slot width of 14 mm and a length of 160 mm, this clamping iron is ideal for clamping screws of sizes M12 and M14. The parallel clamping and support surfaces guarantee precise and secure fixation of workpieces during the machining process. This product is an essential tool for professionals who value quality and efficiency.
- Made from heat-treated steel for high strength
- Painted surface for additional protection
- Parallel clamping and support surfaces for precise fixation
- Compatible with clamping screws of sizes M12 and M14.
10. Amf Clamping jaw Krokodil
AMF clamping jaw Krokodil 6312V, with counter-holder, adjustable, 21 x 16.
No. 6312V clamping jaw with counter-holder, continuously adjustable, tempered, galvanized, with loss-proof pressure pad and thrust bearing.
Scope of supply: Clamping screw DIN 787, washer DIN 6340, and nut DIN 6330B.
