Best ABB products in the Fuses category
On this page you'll find a ranking of the best ABB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. ABB Lasttrennschalter
ABB ILTS-E3D0. Product colour: White. Width: 81 mm, Depth: 70 mm, Height: 90 mm.

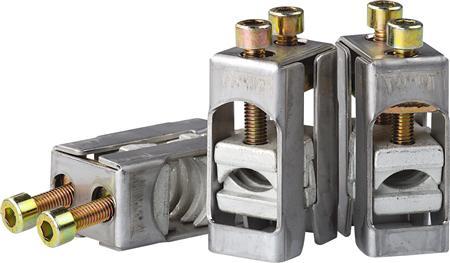

2. ABB Cable clamp 240-310 mm2
3. ABB E 9F15 PV fuse 10.3x38, 15A 2CSM213556R1801
Cylindrical fuses of the E 9F PV series are specifically designed for overcurrent protection in photovoltaic applications up to 1000 V DC. With a wide current range from 1 A to 30 A and a high rated voltage of 1000 V DC, the E 9F PV series is ideal for protecting strings, frequency converters, and OVR surge protectors in accordance with IEC 60269-6. Additional requirements for fuse links for the protection of solar photovoltaic energy generation systems.
4. ABB Cable clamp 95-240mm
5. ABB E 92/32 PVS
The E 90 PV fuse disconnectors are designed for operating voltages of 1000 VDC with usage category DC-20B and are particularly suitable for overcurrent protection of photovoltaic systems. The single-pole or double-pole E 90 PV fuse disconnectors for cylindrical fuses measuring 10.3 x 38 mm provide a reliable, compact, and cost-effective solution for photovoltaic installations. Versions with fuse failure indication allow for checking the functionality of the fuse.

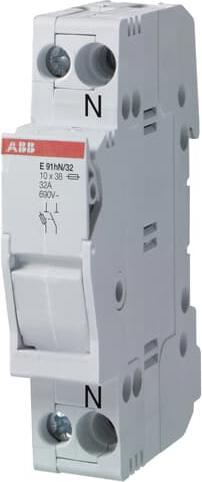

6. ABB Fuse holder, 1+N pole, 32A for 2CSM200913R1801
E 90h fuse holders are suitable for protection against overloads and short circuits. They are available as a simple 1P+N module and as a triple 3P+N module, designed for use with cylindrical gG and aM fuse inserts. The housing is made of self-extinguishing material with high temperature resistance, and the contact clamps are made of silver-plated copper. E 90h fuse holders can be sealed or locked to ensure the safety of operators during maintenance. Versions with fuse failure indication allow for checking the functionality of the fuse.
7. ABB Fuse base
ABB Stotz S&J fuse base ISS63/3
Manufacturer: ABB Stotz S&J
Designation: Fuse base D02, 63A, 3p
Type: ISS63/3
Number of poles: 3
Size: Other
Material: Plastic
Version with cover: No
Mounting type: DIN rail
Rated voltage: 400 V
Rated current: 63 A
ABB Stotz S&J fuse base ISS63/3: More details
D0 fuse base for NEOZED fuse links D01 / D02. Contact protection according to BGV A3. Two-sided frame terminal for connection of two different lines or line and phase rail. Connection cross-section on supply and output side 1.5 to 35 mm² stranded. With integrated terminal cover. A separate cover for the distribution board is therefore not required.
EAN: 4016779655828.

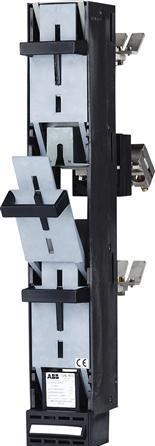

8. ABB Sikring list 400/1000A, 2CEA000042K1024
