Best Hager products in the EV chargers category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

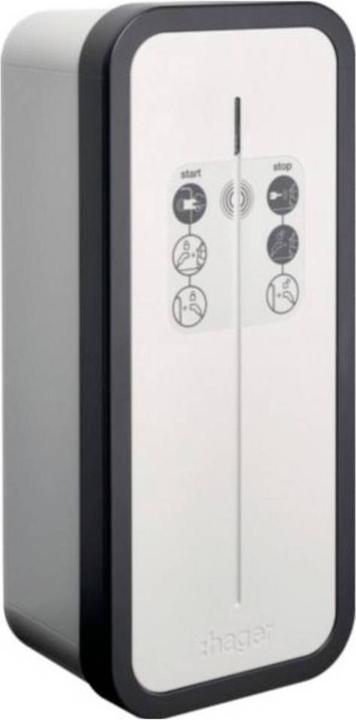

1. Hager Witty Share charging station
Wallbox charging station ER (compliant with calibration law) with UV-resistant plastic housing for charging electric or plug-in hybrid vehicles. Charging mode 3 according to DIN EN IEC 61851-1 (VDE 0122-1) via mode 3 socket type 2, fused via the charging station supply line 32 A (3-phase). Permanently installed charging station for indoor or outdoor use.
Free use or access authorization via RFID authentication. Consisting of wall housing, cable entry for power supply, brightness sensor, RFID reader (sensor, precise user assignment), LED display (status, charge level, error), MID counter (energy recording), public key for checking the charging process, and charging controller with display. The charge controller forms a digital automatic signature. The operating mode (1- or 3-phase) and the charging current (10 - 32 A) are set in the integrated charging controller.
The charging station is connected to a backend system for monitoring and billing via the OCPP protocol. Commissioning is carried out using the embedded web server via Wi-Fi or Ethernet. With the optional load manager (LM), several charging stations can be networked together. The load management supports both static and dynamic load management with integrated direct measurement or direct converter connection.
The power supply to the charging station must have a separate circuit. The connection of several charging stations to the same circuit is not permitted. Each charging station must be protected with a combined residual current circuit breaker/line circuit breaker (RCBO) type A or separately with a residual current circuit breaker (RCD) type A and a miniature circuit breaker (MCB).
A type B RCD is not necessary as a 6 mA DC residual current detection is integrated. The charge controller is configured via the integrated Wi-Fi hotspot or the LAN interface during initial commissioning.
Note: A cable holder, RFID cards, and feet for free-standing installation are optionally available.
2. Hager HAGE charging station
Hager charging station XEV1K22T2S
Manufacturer: Hager
Designation: Charging station
Type: XEV1K22T2S
Version connection on system side: 3-phase
Number of charging points: 1
Max power per charging point: 22 kW
Width: 250.5 mm
Height: 549 mm
Depth: 173 mm
Type of installation: Wall mounting
Number of charging sockets type 2: 1
With house connection box (HAK): No
With circuit breaker: No
With communication interface: Yes
With energy meter: No
Function access control: Yes
With load management: Yes
With display: No
Material of housing: Plastic
Protection class (IP): IP55
Impact resistance: IK10
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Hager charging station XEV1K22T2S: more details
Charging station for solar up to 22 kW 1P/3P automatic for PV, with charging socket and RFID.
3. Hager Charging station
Witty Start 11.22 kW charging station with key switch and Type 2 charging socket. Wallbox charging station with UV-resistant plastic housing for charging electric or plug-in hybrid vehicles. Charging mode according to EN 61851, secured via the supply line of the charging station. Charging station with Mode socket Type 32, 3-phase. Fixed installation charging station for indoor and outdoor use. Free use or access authorization via key switch is possible. Consists of wall housing, cable entry for power supply, key switch, USB interface, and LED display. The power supply of the charging station must be on a separate circuit. Connecting multiple charging stations to the same circuit is not allowed. Each charging station must be protected by a combined residual current and circuit breaker RCBO type or separately with a residual current device RCD type and a miniature circuit breaker MCB. A residual current device type is not necessary, as a 6 mA DC fault current detection is integrated. The charging controller is ready for operation in its delivered state, but further settings can be made via the rotary control or through the USB interface. Note: Various stands are available for freestanding installation.
4. Hager XEV1R22T2
The Hager XEV1R22T2 charging station is a state-of-the-art solution for charging electric vehicles. With a charging power of up to 22 kW, it enables efficient and fast charging. This wallbox is equipped with a Type 2 connector, ensuring broad compatibility with various electric vehicles. The charging station is designed for both indoor and outdoor use and offers high protection against dust and water with its IP55 rating. The use of UV-resistant plastic ensures durability and resilience against weather conditions. The Hager XEV1R22T2 is also equipped with RFID access protection, ensuring secure usage. It supports load management services to optimize energy efficiency and control charging times.
- Charging power of 22 kW for fast charging
- Type 2 connector for broad vehicle compatibility
- RFID access protection for increased security
- Support for load management services
- IP55 rating for outdoor use.
