Best ABL products in the EV chargers category
On this page you'll find a ranking of the best ABL products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. ABL Wallbox
The Wallbox eMH1 has a permanently integrated charging cable with Type 2 charging coupler. With its compact dimensions, the Wallbox eMH1 is the perfect solution for efficient vehicle charging. The wallbox can be operated intuitively and is also ideally suited for beginners. Thanks to the standard equipment with RCD type A and DC fault current detection, the wallbox is always pre-installed ready for connection for the installer. The eMH1 offers the highest safety standard and is Made in Germany.
2. ABL Wallbox eM4 Twin 100000019 compliant with calibration regulations, controller, 11/22 kW
The ABL eM4 Twin wallbox is a state-of-the-art charging station for electric vehicles, suitable for both private and commercial applications. With a rated power of up to 22 kW per charging point, it enables fast and efficient charging of two vehicles simultaneously. The wallbox is compliant with calibration regulations and offers a variety of features that meet the demands of modern e-mobility. It is equipped with two Type 2 sockets and supports both static and dynamic load management. Wall mounting is straightforward, and the robust design with an IP55 protection rating ensures high resistance to environmental influences. The integrated communication technology allows for networking via LAN and WLAN, facilitating operation and configuration through an app. Additionally, the wallbox features an RFID card reader to control access and optimize usage.
- Calibration compliant with integrated RFID card reader
- Supports static and dynamic load management
- Networkable via LAN and WLAN for easy operation
- Two Type 2 sockets for simultaneous charging of two vehicles
- Robust design with IP55 protection rating and IK10 impact resistance.
EV chargers
EUR4423,66
ABL Wallbox eM4 Twin 100000019 compliant with calibration regulations, controller, 11/22 kW
Type 2, 22 kW, Type 2
3. ABL eMH2 Extender
The eMH2 wallbox features an internal Type 2 charging socket. In a group installation, up to 15 eMH2 extender wallboxes can be connected to a single controller. Alternatively, the eMH2 extender wallbox can be configured via software for standalone operation. With standard equipment including Type A RCD and DC fault current detection, the wallbox is always pre-installed and ready for immediate use by installers. The eMH2 is made in Germany and offers the highest safety standards.

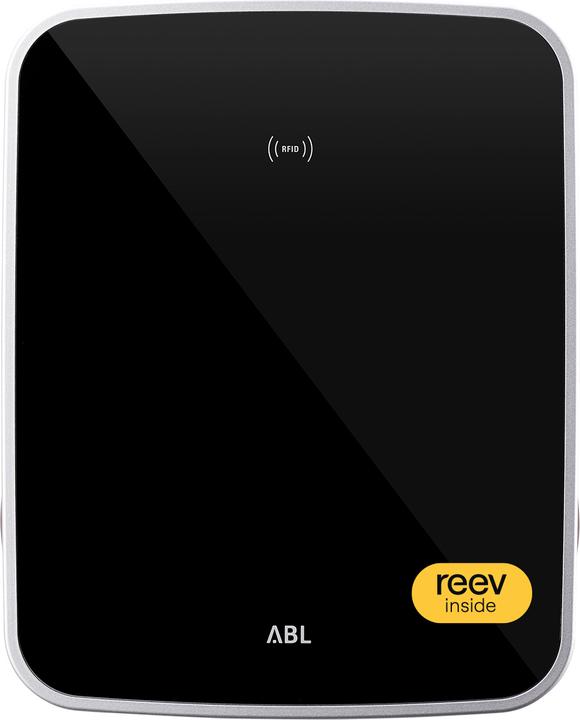

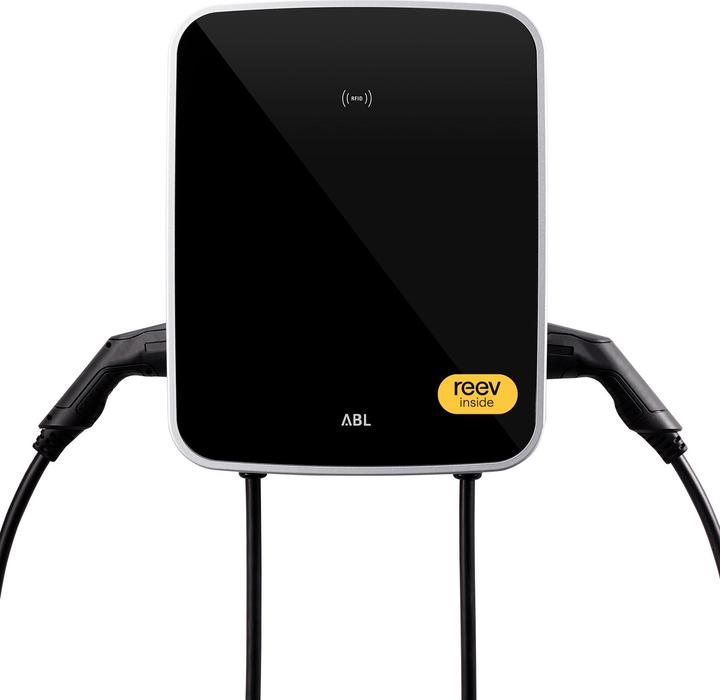

4. ABL Wallbox eM4 Twin REEV 1000000180 Controller, 11/22 kW, 2x Typ 2 Steckdos
The eM4 Twin REEV wallbox from ABL represents an advanced charging solution for electric vehicles, suitable for both businesses and private households. With the ability to charge two vehicles simultaneously via Type 2 sockets, this wallbox offers an efficient and user-friendly solution for electric car charging. Installation is straightforward and can be completed by one person in a short time. The ABL Configuration App allows for easy configuration and operation, while visual and acoustic feedback enhances the user experience. The wallbox is available in a controller variant that includes an integrated communication and control unit, as well as an extender variant that allows for the addition of extra charging points. Durable materials and safety features such as the Type A RCD ensure reliable use under various conditions.
- Two Type 2 sockets for simultaneous charging of two vehicles
- Easy installation and configuration via the ABL Configuration App
- Available in controller and extender variants for flexible use
- Optional dynamic load management with ABL Energy Meter
- Robust design with IP55 protection rating for outdoor use.
EV chargers
EUR3539,31
ABL Wallbox eM4 Twin REEV 1000000180 Controller, 11/22 kW, 2x Typ 2 Steckdos
Type 2, 22 kW

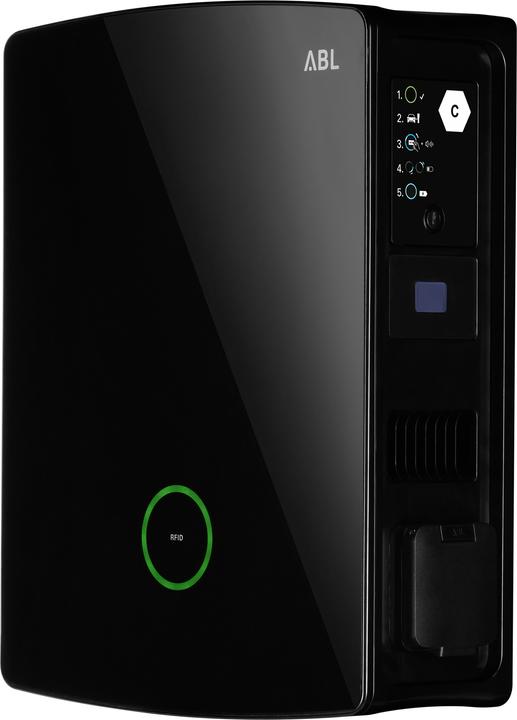

5. ABL eM4 Twin
The eM4 Twin wallbox is a future-proof and tailored charging solution for businesses, the housing industry, parking garages, and private households. Two vehicles can charge simultaneously at the ABL Type-2 charging sockets. Connected charging cables can be permanently locked or unlocked via an app.
Easy installation and operation: The cable entry is designed to be flexible. One person can easily install the wallbox in a short time. Configuration is quick and straightforward with the ABL Configuration App for Android and iOS. The intuitive user interface of the eM4 Twin wallbox allows for easy operation through visual and acoustic feedback.
Customized solution: The eM4 Twin wallbox is available as a controller variant with an integrated communication and control unit. The extender variant allows for economical expansion with additional charging points via LAN or WLAN for a group installation. Alternatively, both the controller and extender variants can be operated independently. The static load management of a controller-extender group installation can optionally be enhanced with the ABL Energy Meter accessory for dynamic load management.
Quality and safety: Its robust design and high-quality workmanship protect the eM4 Twin wallbox from external influences. With standard equipment including Type A RCD and DC fault current detection, the wallbox is pre-installed and ready for connection. All ABL wallboxes are made in Germany and offer the highest safety standards.
Additional product benefits:
- Backend/OCPP connection via LTE, LAN, or WLAN
- Group installations with up to 30 charging points, scalable to a charging cluster with up to 100 charging points
- Standardized interfaces for integration into external systems via OCPP Smart Charging or Modbus TCP
- MID-compliant energy meter
- Plug & Charge ready (ISO15118)
- IP55 and IK10.
6. ABL eMH3 Single Controller+
The Eichrechts-compliant wallbox eMH3 features an internal Type 2 charging socket. In group installations, the controller wallbox eMH3 takes on all necessary communication functions, such as billing and user management, and is connected to a dashboard. With standard equipment including Type A RCD and DC fault current detection, the wallbox is always pre-installed and ready for immediate use for installers. The eMH3 is made in Germany and offers the highest safety standards.

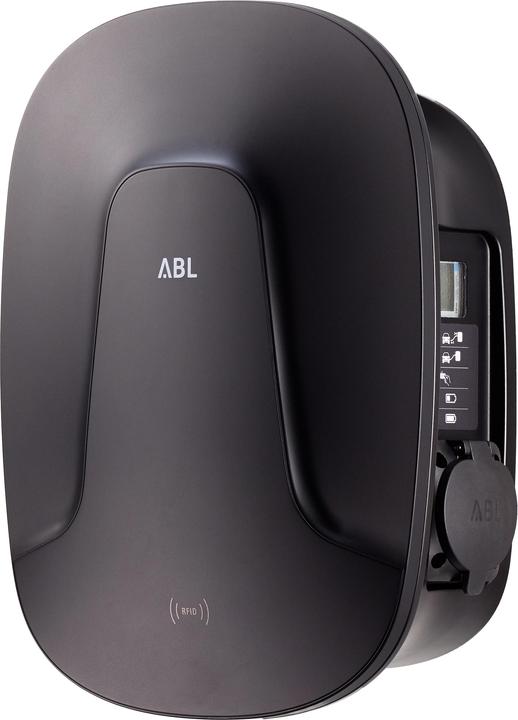

7. ABL eMH1
ABL GmbH E-Mobility Wallbox eMH1, 22kW 1W2221
Manufacturer: ABL GmbH E-Mobility
Designation: Wallbox eMH1, 22kW
Type: 1W2221
Connection type on the installation side: 3-phase
Number of charging points: 1
Max. power per charging point: 22 kW
Nominal connection power: 22 kW
Width: 221 mm
Height: 272 mm
Depth: 116 mm
Mounting type: Wall-mounted
Number of Type 2 charging sockets: 1
With house connection box (HAK): no
Number of type A residual current devices: 1
With circuit breaker: no
With communication interface: no
With energy meter: no
Access control function: no
With load management: no
With display: no
Material of the housing: Plastic
Protection class (IP): IP54
Impact resistance: IK08
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
The eMH1 Wallbox features an internal Type 2 charging socket. With its compact dimensions, the eMH1 Wallbox is the perfect solution for efficient vehicle charging. Any electric vehicle can be charged with the eMH1. The Wallbox is intuitively operated and is also well-suited for beginners. With standard equipment including type A RCD and DC fault current detection, the Wallbox is always pre-installed and ready for connection for the installer. The eMH1 offers the highest safety standards and is made in Germany. EAN: 4011721178684.
8. ABL Wallbox eM4 Twin 100000020 compliant with calibration regulations, Extender, 11/22 kW
The ABL eM4 Twin wallbox is a legally compliant charging station specifically designed for the simultaneous charging of two electric vehicles. With a charging capacity of up to 22 kW, it offers a future-proof solution for businesses, residential properties, parking garages, and private households. The wallbox allows for easy installation and operation, supported by the ABL Configuration App, which enables quick and straightforward configuration on Android and iOS devices. Its robust design protects the wallbox from external influences, ensuring high quality and safety. The eM4 Twin is available in both controller and extender variants, allowing for flexible adaptation to different installation needs. These features make the eM4 Twin wallbox an ideal choice for anyone seeking a reliable and powerful charging solution.
- Legal compliance for secure billing of charging processes
- Two Type 2 charging sockets for simultaneous charging of two vehicles
- Flexible cable entry for easy installation by one person
- Expandable with additional charging points via LAN or WLAN
- Robust design with IP55 protection rating for outdoor use.
EV chargers
EUR5778,58
ABL Wallbox eM4 Twin 100000020 compliant with calibration regulations, Extender, 11/22 kW
Type 2, 22 kW, Type 2

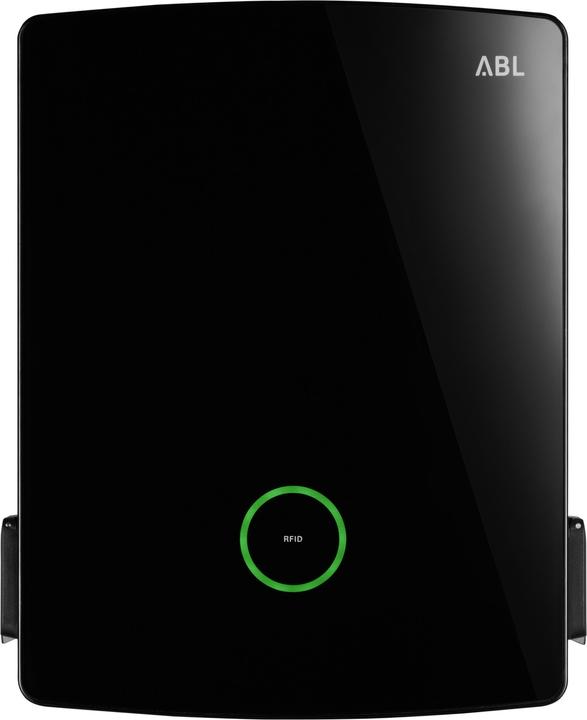

9. ABL 100000202
The ABL eM4 Single wallbox represents an advanced charging solution for electric vehicles, suitable for both business and private use. This legally compliant charging station offers a charging power of up to 22 kW and is equipped with a Type 2 connector, ensuring broad compatibility with various electric vehicles. The wallbox is characterized by its user-friendly operation, supported by an intuitive app that allows for easy configuration and control. Additionally, the wallbox offers the possibility to integrate multiple charging points in a group installation, making it a flexible solution for different requirements. Its robust design and high-quality materials ensure durability and safety, while various protective mechanisms such as Type A RCD and DC protection provide added safety.
- Legally compliant and future-proof for various applications
- Easy installation due to flexible cable entry design
- Intuitive operation via the ABL Configuration App
- Expandable with additional charging points via LAN or WLAN
- Robust design with IP55 protection rating for outdoor exposure.
10. ABL 100000157
The ABL eM4 Single Wallbox 100000157 is an advanced charging solution specifically designed for businesses, housing associations, parking garages, and private households. With a Type 2 charging socket, it enables the charging of electric vehicles and offers a user-friendly app for the permanent locking and unlocking of the connected charging cable. The installation of the wallbox is straightforward and can be completed by one person in a short amount of time. The ABL Configuration App for Android and iOS simplifies the setup, while the intuitive user interface provides visual and acoustic feedback for easy operation. The wallbox is available in various versions, including a controller version with an integrated communication and control unit, as well as an extender version for adding additional charging points. With a robust design and high-quality materials, the eM4 Single wallbox is both safe and durable.
- Easy installation due to flexible cable entry design
- Intuitive operation via ABL Configuration App
- Expandable with additional charging points via LAN or WLAN
- Optional dynamic load management with ABL Energy Meter
- Robust design with IP55 protection rating against external influences.
